Plan 860073MCD Under 2200 Square Foot 4 Bed House Plan with Outdoor Fireplace and Grill

2,174 4 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Under 2200 Square Foot 4 Bed House Plan with Outdoor Fireplace and Grill

Plan 860073MCD

  • 2,174

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

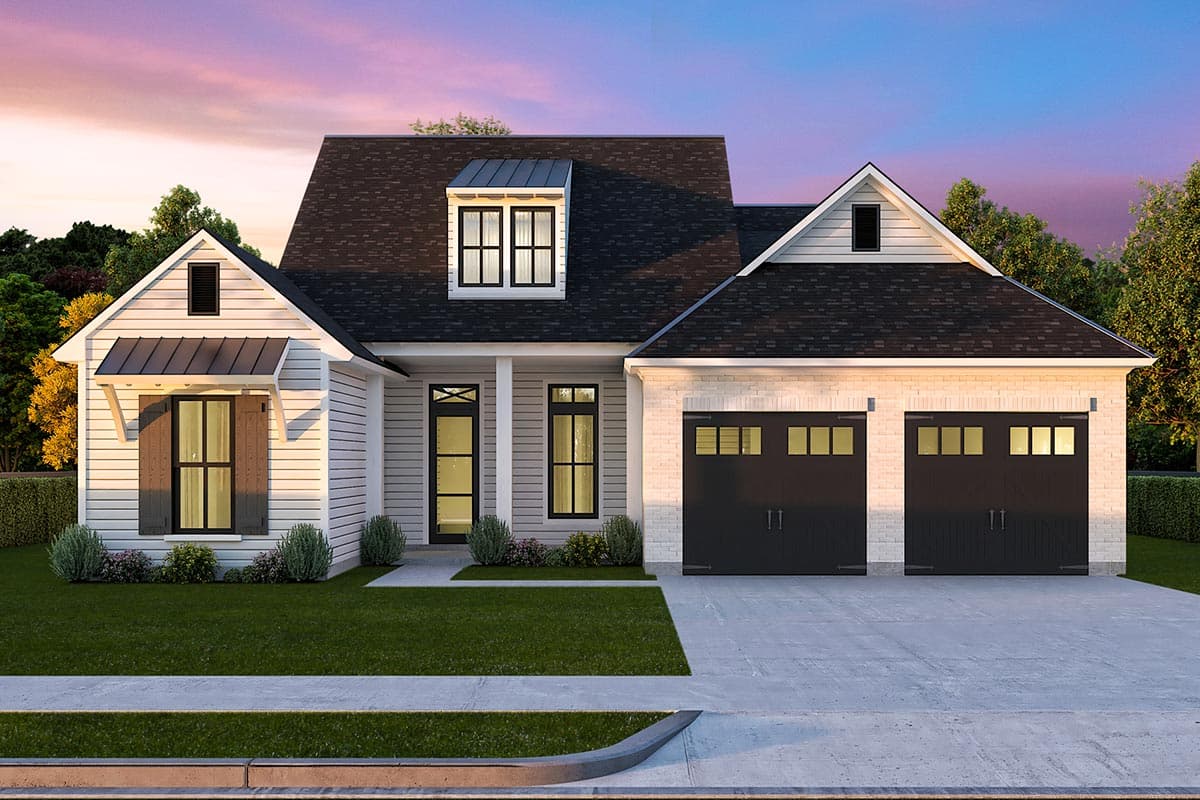

  • This 4 bed, 3 bath New American House Plan gives you 2, 174 square feet of heated living space and is great for those who like to spend time outdoors with a fireplace and outdoor grill in back.
  • Step inside and you are greeted by the foyer with tray ceiling which opens to the living room with fireplace and a cathedral ceiling.
  • The master bedroom is privately located in back and has convenient access to the laundry. Three bedrooms line the opposite side of the home.
  • A mud room with walk-in pantry is located just inside the garage entry and helps make unloading groceries a breeze with the kitchen just steps away as well.

This set of working drawings contains the following components

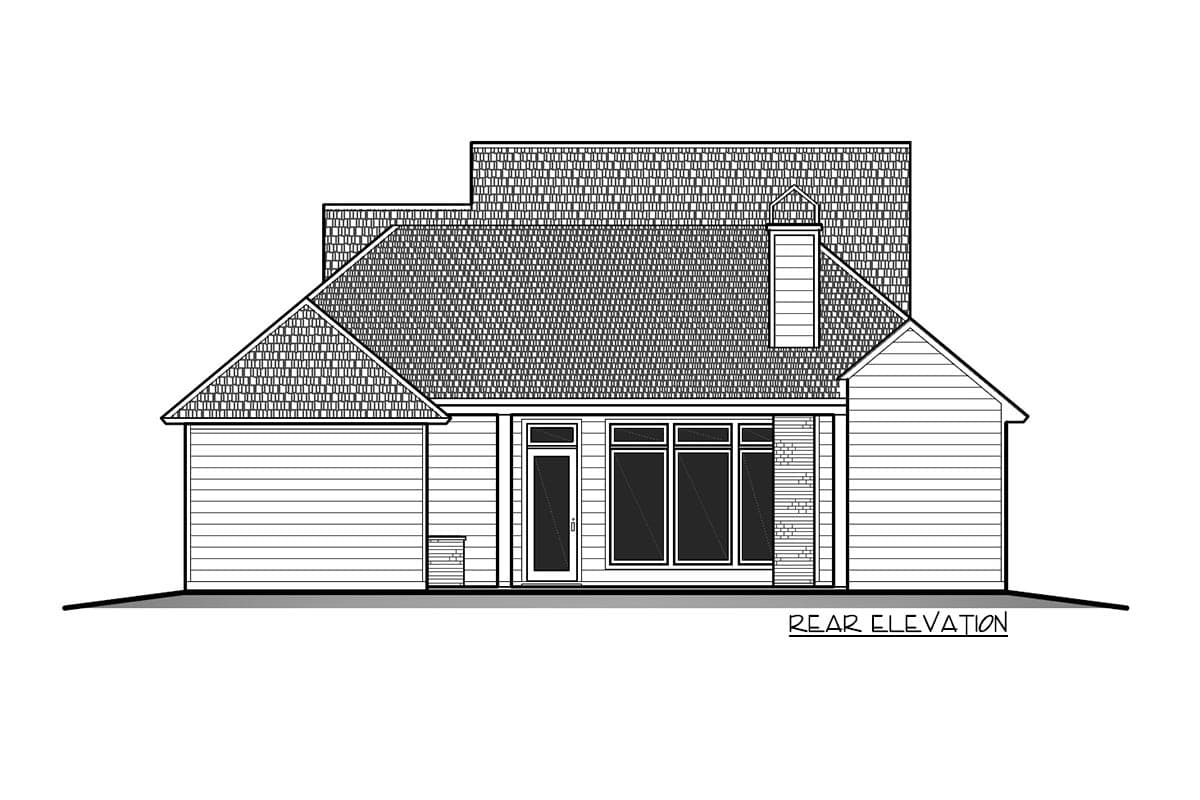

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

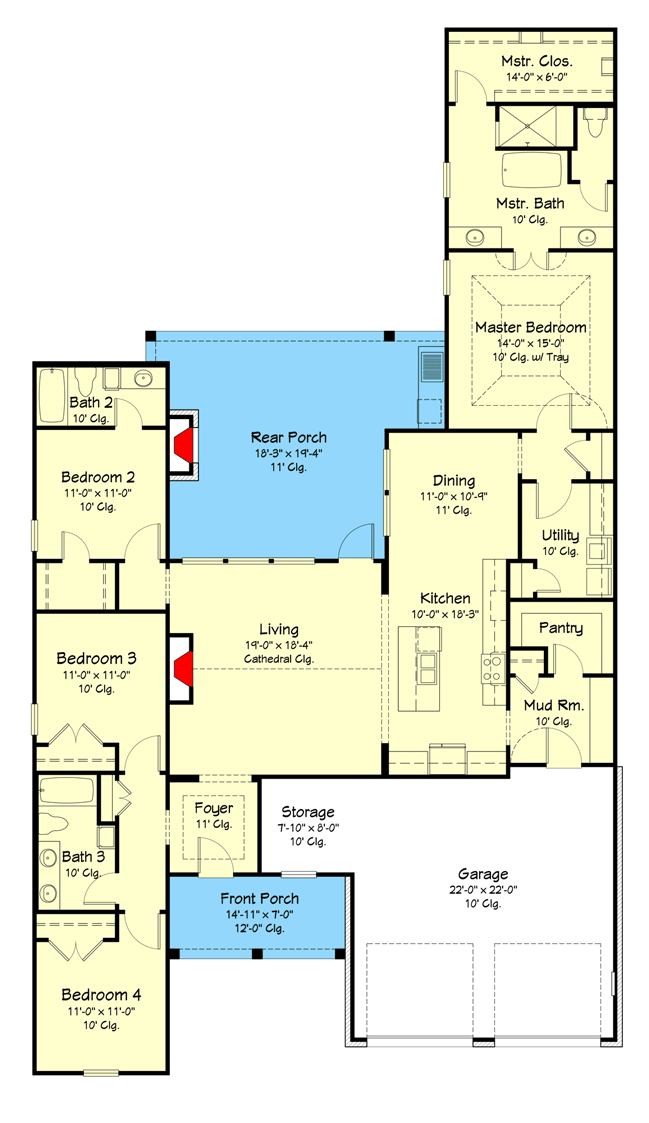

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Under 2200 Square Foot 4 Bed House Plan with Outdoor Fireplace and Grill - 860073MCD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,174 sq. ft.
  • 1st Floor: 2,174 sq. ft.
  • Porch, Combined: 505 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 88' 9"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Area: 603 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Under 2200 Square Foot 4 Bed House Plan with Outdoor Fireplace and Grill

  • 2,174

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,205
  • 5 Sets + PDF $1,305
  • 8 Sets + PDF $1,385
  • CAD - Single-Build $2,105
  • PDF - Unlimited Build $2,410
  • CAD - Unlimited Build $3,310
  • View all purchase option online

About This Plan

  • This 4 bed, 3 bath New American House Plan gives you 2, 174 square feet of heated living space and is great for those who like to spend time outdoors with a fireplace and outdoor grill in back.
  • Step inside and you are greeted by the foyer with tray ceiling which opens to the living room with fireplace and a cathedral ceiling.
  • The master bedroom is privately located in back and has convenient access to the laundry. Three bedrooms line the opposite side of the home.
  • A mud room with walk-in pantry is located just inside the garage entry and helps make unloading groceries a breeze with the kitchen just steps away as well.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,174 sq. ft.
  • 1st Floor: 2,174 sq. ft.
  • Porch, Combined: 505 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 88' 9"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Area: 603 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 860073MCD
View this and more for this plan by visiting www.architechtecturaldesigns.com/860073MCD
|
