Under 40'-wide Modern Farmhouse Plan with Rear Carport

Plan 51883HZ

2,200
Heated s.f.
3-4
Beds
3.5
Baths
1-2
Stories
2
Cars

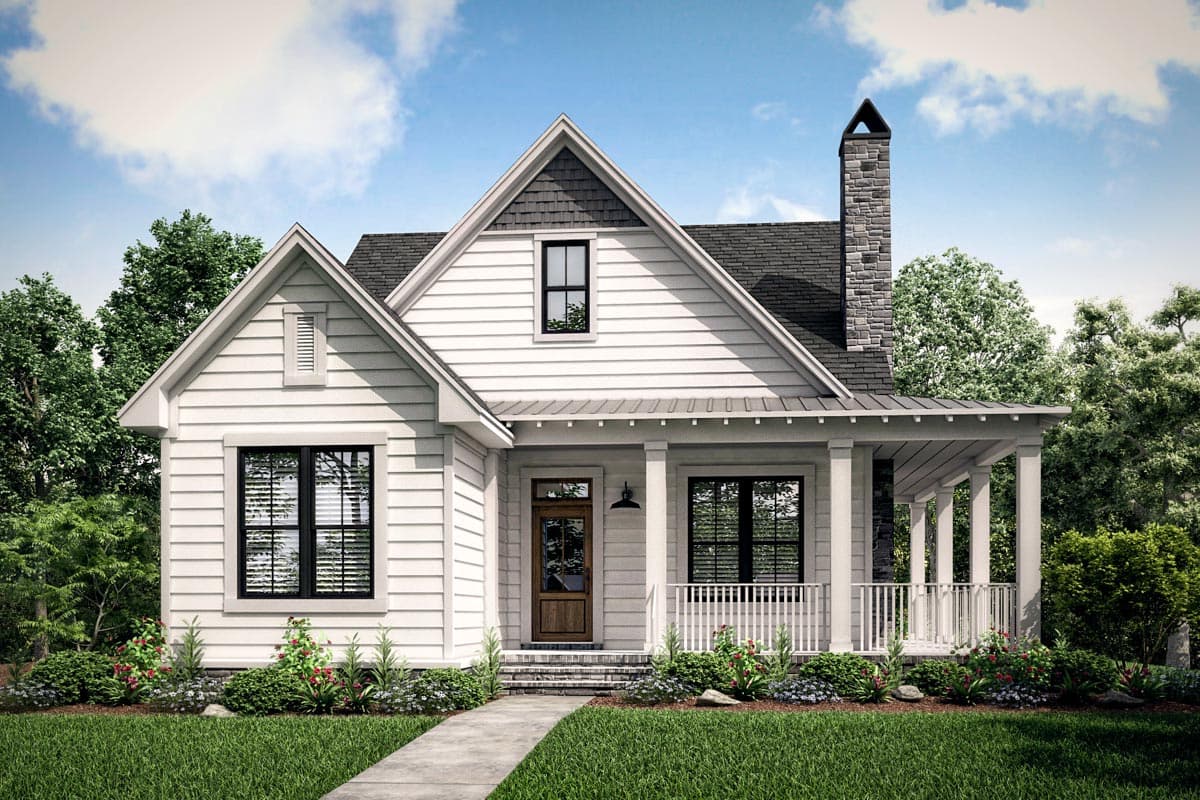

This Modern Farmhouse with carport - under 40' wide - was designed specificially with a narrow lot in mind. Clapboard siding - with a touch of shingles in the gable peak - and a standing seam metal roof and exposed rafter tails over the wraparound porch - give it great curb appeal.
The home is open from the great room with fireplace through to the kitchen with a prep island. A walk-in pantry gives you great storage and is steps away from the back entry making unloadin groceries a breeze.
In the main bedroom suite, you'll notice a trayed ceiling and a generous walk in shower and an enclosed toilet room. Towards the front, two guest rooms share a bath.
Upstairs, enjoy a fourth bedroom or a game room with a full bath and closet.

This house plan set has 14 pages as follows:

Page 1 Cover Sheet with abbreviations, rendering, sheet index

Page 2 Foundation Plan and details

Page 3 Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

Page 4 Detailed second floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

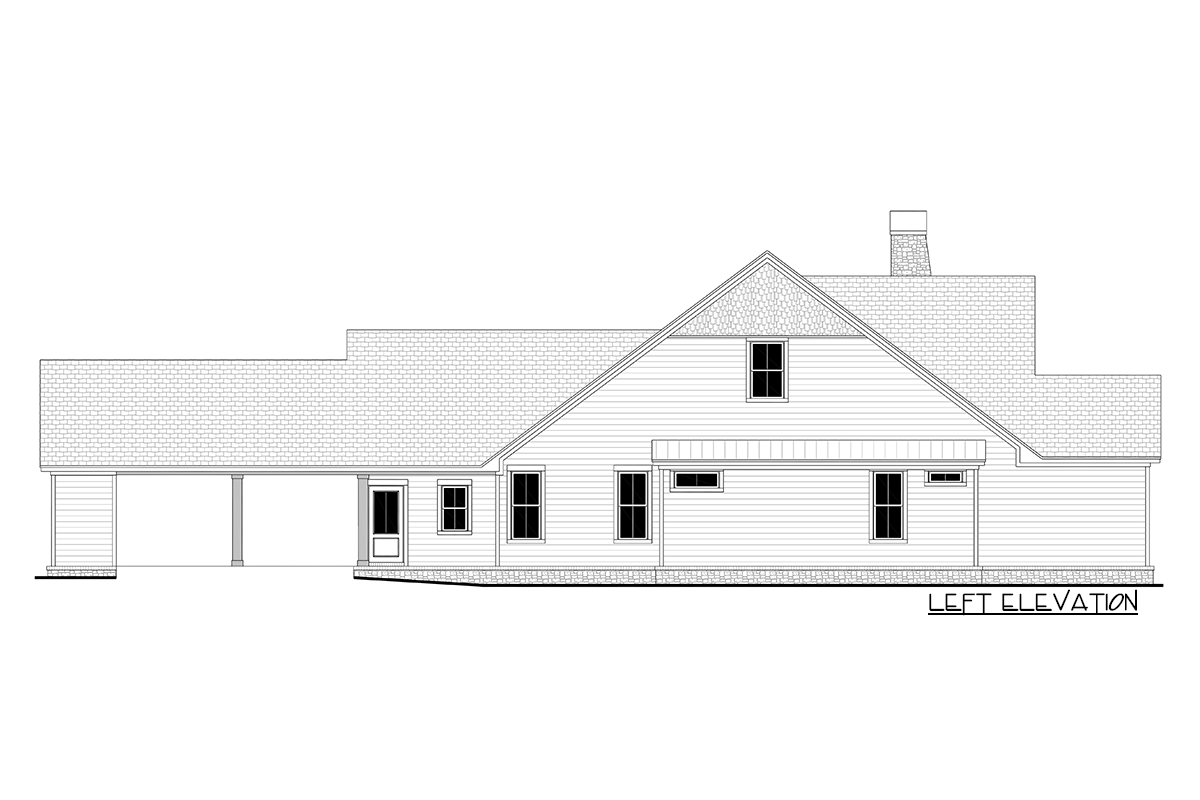

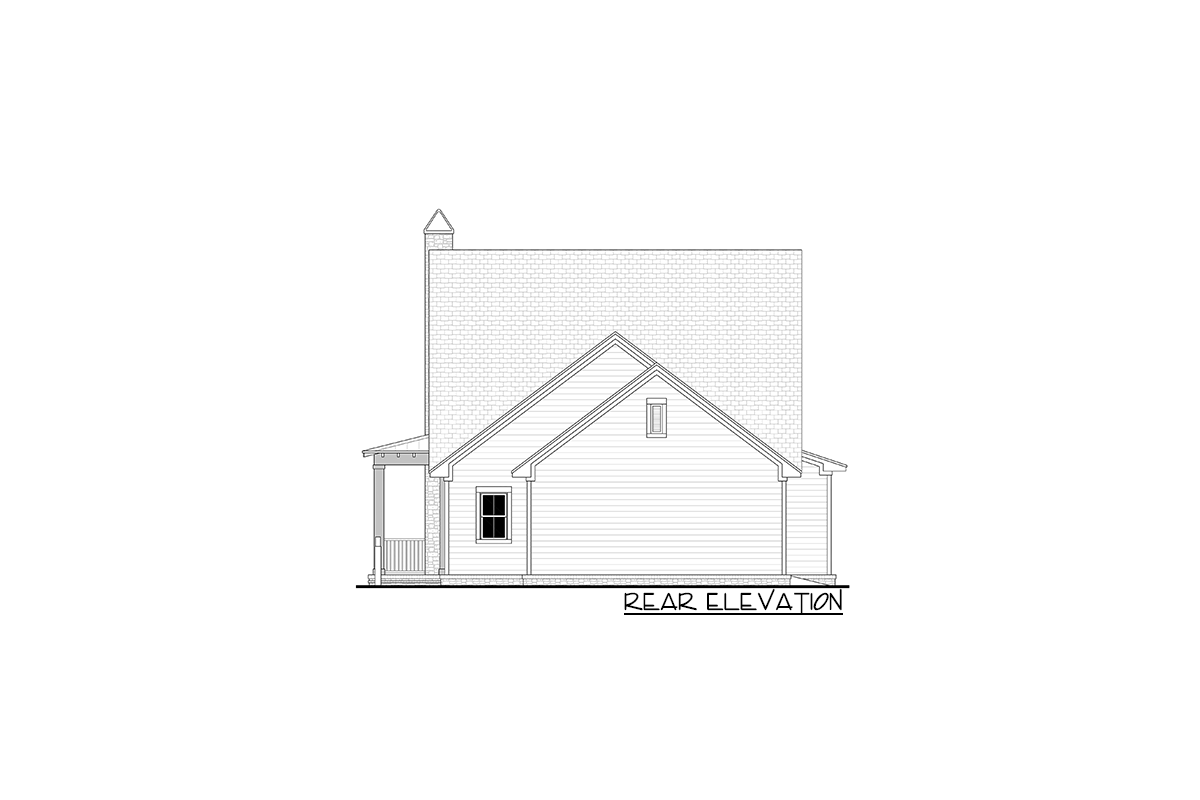

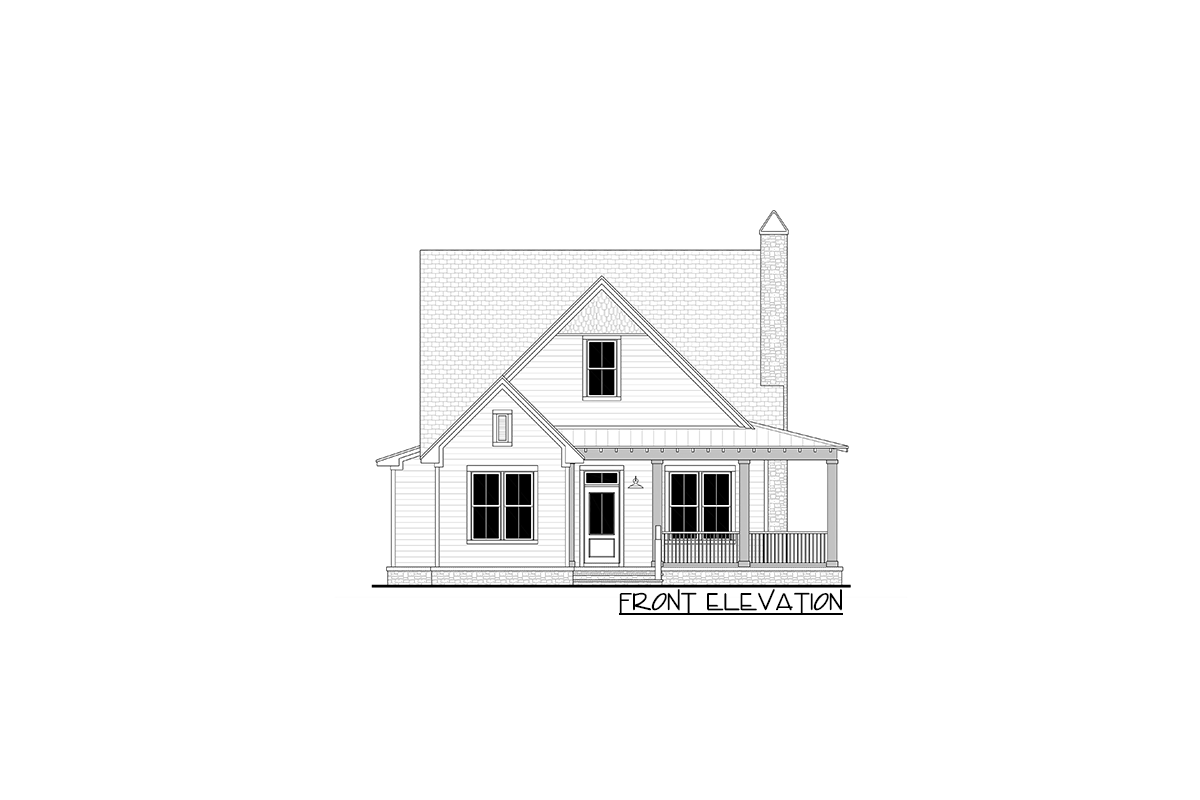

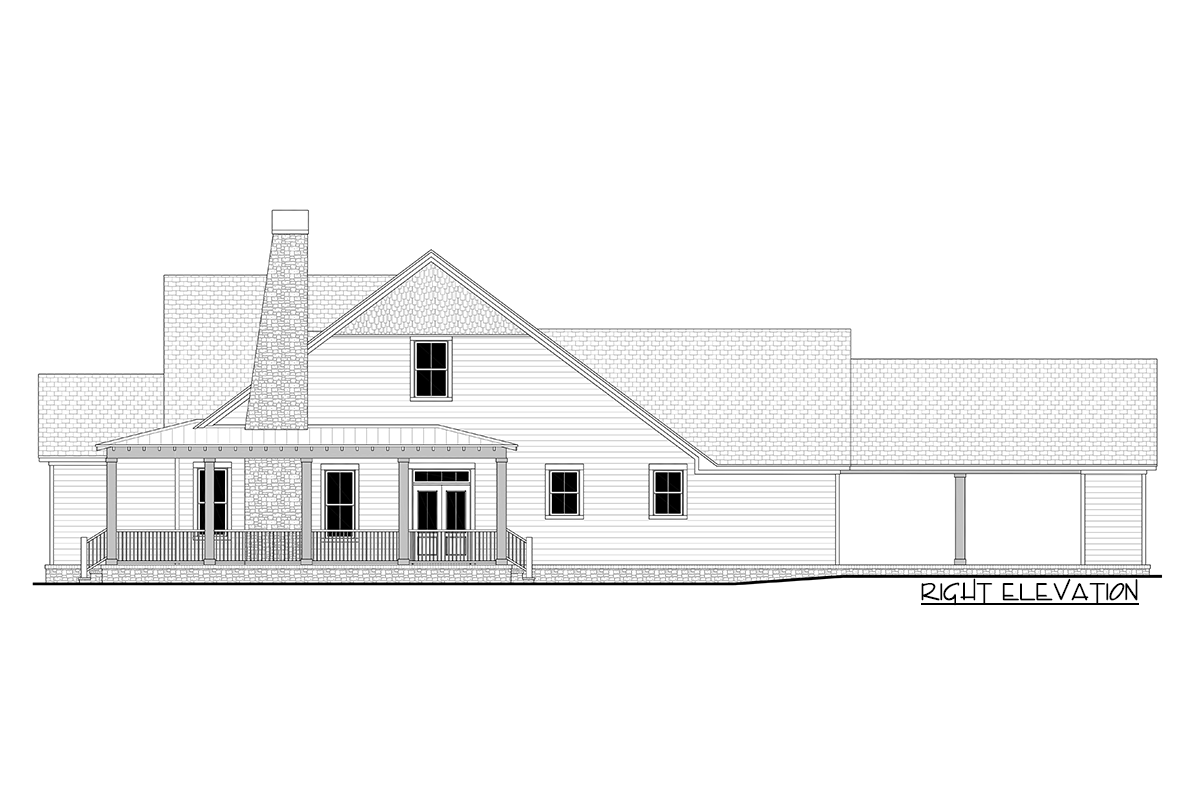

Page 5 Exterior views with additional notes and details

Page 6 Exterior views with additional notes and details

Page 7 Misc notes and details

Page 8 Roof plan and span charts with additional notes

Page 9 Cross Section & kitchen cabinet views

Page 10 Electrical plans

Page N1 Code Information

Page N2 Code Information

Page N3 Code Information

Page N4 Energy Code Information

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

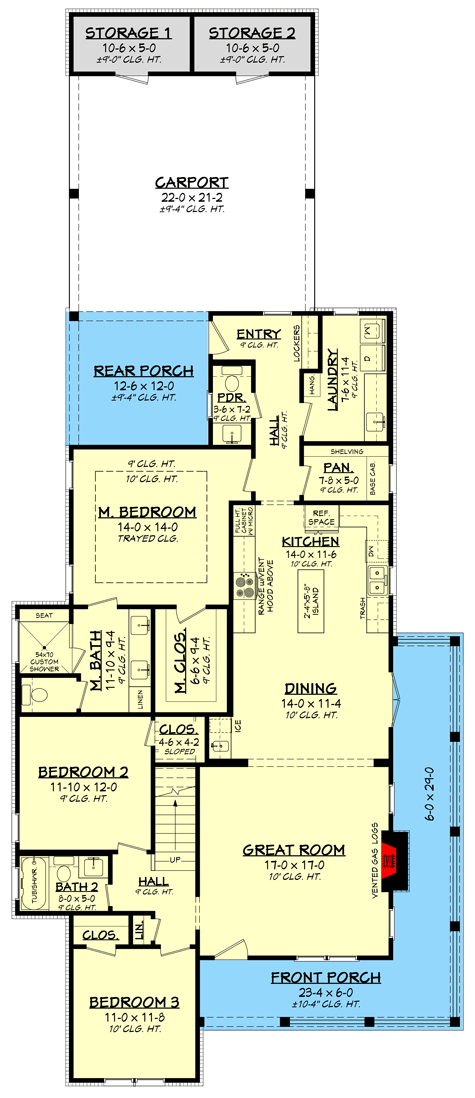

Under 40'-wide Modern Farmhouse Plan with Rear Carport - 51883HZ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

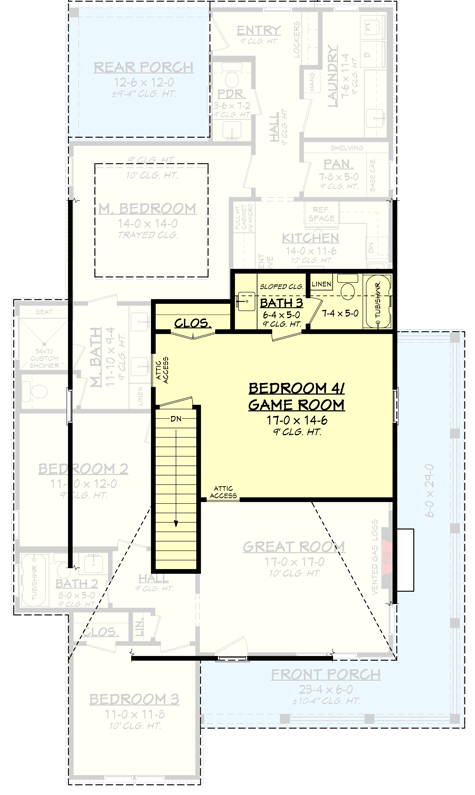

Under 40'-wide Modern Farmhouse Plan with Rear Carport - 51883HZ floor plan - 2nd Floor

Main Level - Basement Stair Location

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

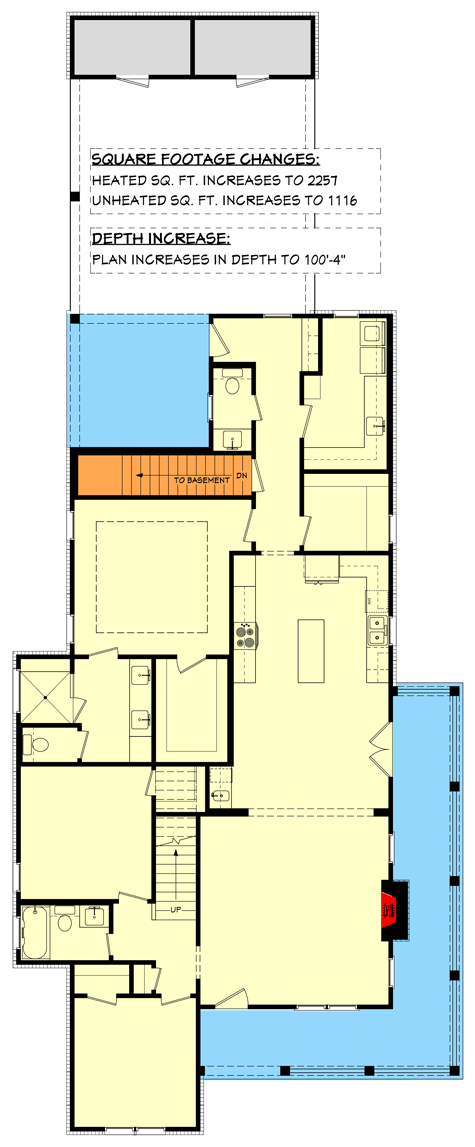

Under 40'-wide Modern Farmhouse Plan with Rear Carport - 51883HZ floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

Total Heated Area: 2,200 sq. ft.
1st Floor: 1,807 sq. ft.
2nd Floor: 393 sq. ft.

Storage: 124 sq. ft.
Porch, Rear: 150 sq. ft.
Porch, Front: 308 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 39' 10"
Depth: 96' 0"
Max ridge height: 28' 0"

Garage

Type: Carport
Area: 466 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 9 on 12
Secondary Pitch: 12 on 12

Framing Type: Stick

Architectural Style

Special features
