Plan 57193HA

Unique A-Frame with Second Level Deck

Heated S.F.
1,272
Beds
3
Baths
1.5
Stories
2

Floor Plan

Plan 57193HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57193HA

M-F 9am-5pm EST |

1-203-761-8500

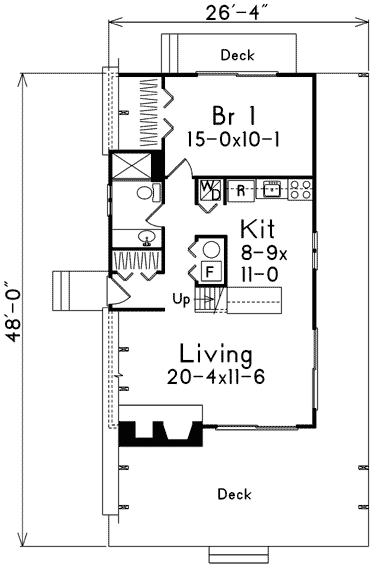

Main Level

Plan 57193HA: Unique A-Frame with Second Level Deck - Floor Plan - Main Level - A-Frame, Cottage, Rustic, Vacation

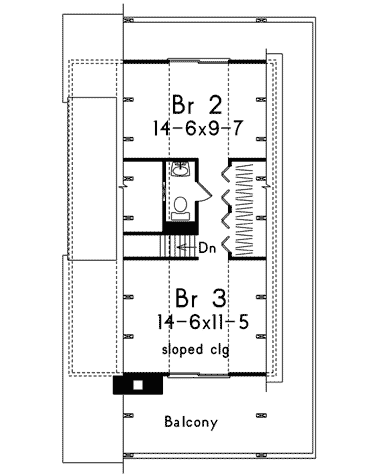

2nd Floor

Plan 57193HA: Unique A-Frame with Second Level Deck - Floor Plan - 2nd Floor - A-Frame, Cottage, Rustic, Vacation

Plan Details

  • Stone fireplace accents living room.
  • Spacious kitchen includes snack bar overlooking living room.
  • First floor bedroom is roomy and secluded.
  • Plenty of closet space for second floor bedrooms plus a generous balcony which wraps around second floor.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
