Unique Exterior and a Home Theater

Plan 59785ND

  • 5,723

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A unique exterior combination helps to give this house plan its excellent curb appeal. Observe the openness of this floor plan from the moment you step inside the foyer. Only elegant columns divide the dining room, spacious great room, and breakfast room.
  • Prepare meals in the well-equipped kitchen and keep an eye on the kids as they play in the sun room.
  • Show off your grilling skills on the huge rear grilling porch and adjoining deck.
  • An amenity-filled master suite, three additional bedrooms, and ample storage in the three-car garage complete the main floor of this house plan.
  • The lower floor houses a game room with kitchen space and nearby safe room, a home theater room, and a private guest room for company.
  • For an alternate exterior and a reverse plan, see house plan 59600ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Exterior and a Home Theater - 59785ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

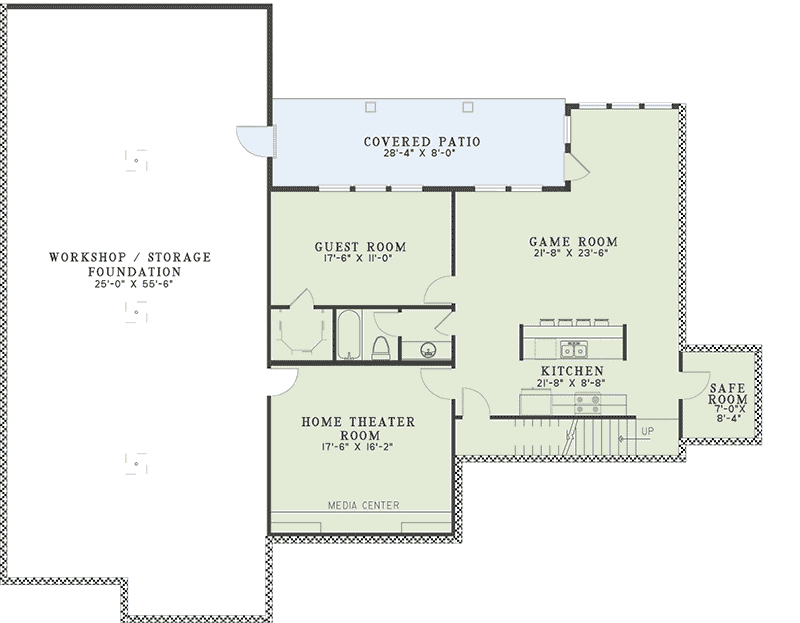

Unique Exterior and a Home Theater - 59785ND floor plan - Lower Level

Unique Exterior and a Home Theater

  • 5,723

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 5,723 sq. ft.
  • Lower Level: 2,816 sq. ft.
  • 1st Floor: 2,907 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 68' 0"
  • Max ridge height: 41' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 676 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
