Plan 57286HA

Unique Master Suite with Atrium Exercise Room

Pageloader

Unique Master Suite with Atrium Exercise Room

Plan 57286HA

  • 4,465

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • 8' arched double-entry doors in this prestigious home lead you into a grand foyer with its stately staircase.
  • The magnificent kitchen features a large center island, snack bar, menu desk, cabinet pantries, bayed breakfast area.
  • Adjacent hearth and dining rooms make the kitchen a functional location.
  • The unusal master suite has a coffered ceiling, double-entry doors, huge walk-in closets and a lavish bath with whirlpool tub that overlooks the two-story atrium/exercise room.
  • A playroom and three generously-sized bedrooms comprise the second floor, each with a walk-in closet and access to an oversized bath.
  • Bedroom 3 has a unique private indoor balcony.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan

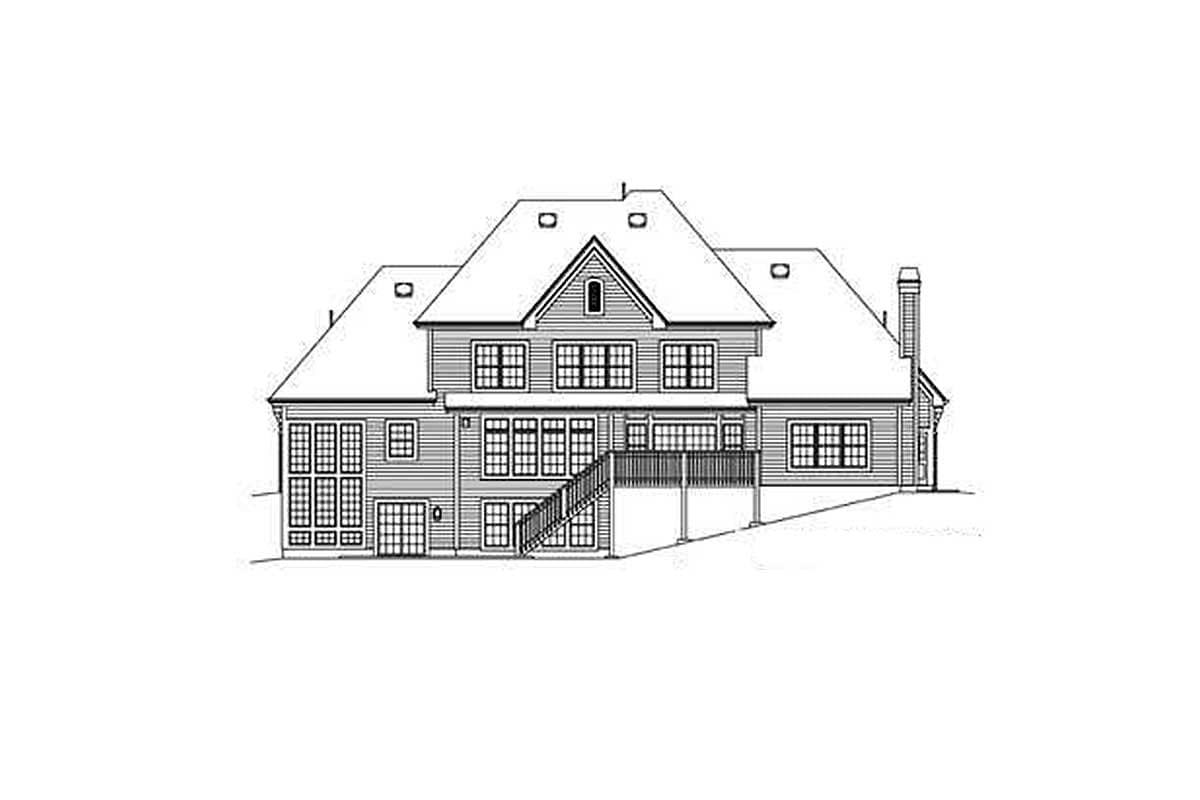

  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Plan details



Unique Master Suite with Atrium Exercise Room

  • 4,465

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,125
  • Reproducible Set $1,175
  • 5 Sets $1,175
  • 8 Sets $1,250
  • View all purchase option online

About This Plan

  • 8' arched double-entry doors in this prestigious home lead you into a grand foyer with its stately staircase.
  • The magnificent kitchen features a large center island, snack bar, menu desk, cabinet pantries, bayed breakfast area.
  • Adjacent hearth and dining rooms make the kitchen a functional location.
  • The unusal master suite has a coffered ceiling, double-entry doors, huge walk-in closets and a lavish bath with whirlpool tub that overlooks the two-story atrium/exercise room.
  • A playroom and three generously-sized bedrooms comprise the second floor, each with a walk-in closet and access to an oversized bath.
  • Bedroom 3 has a unique private indoor balcony.

Floor Plans

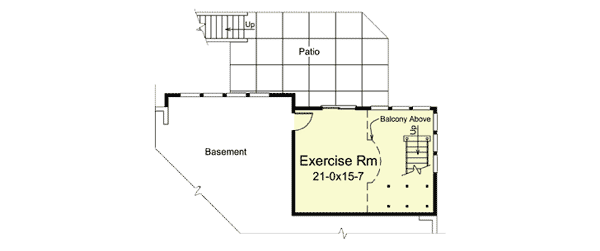

  • Basement

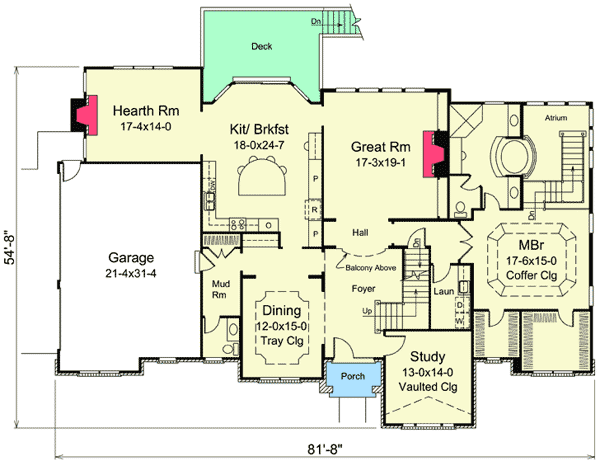

  • Main Level

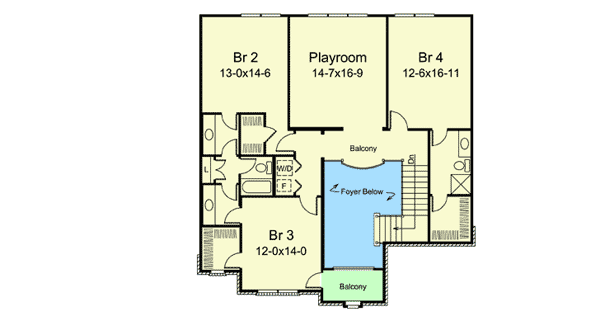

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,465 sq. ft.
  • Lower Level: 200 sq. ft.
  • 1st Floor: 2,850 sq. ft.
  • 2nd Floor: 1,415 sq. ft.
  • Basement Unfinished: 2,477 sq. ft.
  • Entry: 45 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 81' 8"
  • Depth: 54' 8"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 672 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
