Plan 57034HA

Unique Narrow Lot Design

Heated S.F.
1,547
Beds
2
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 57034HA

Basement
Basement
Main Level
Main Level

Plan 57034HA

M-F 9am-5pm EST |

1-203-761-8500

Basement

Plan 57034HA: Unique Narrow Lot Design - Floor Plan - Basement - Cottage, Country

Main Level

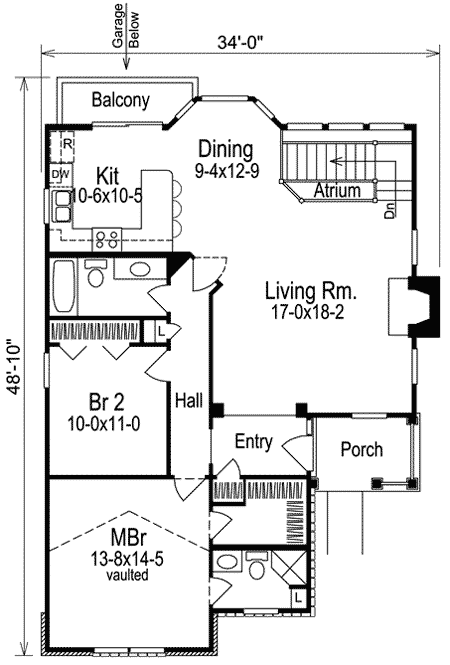

Plan 57034HA: Unique Narrow Lot Design - Floor Plan - Main Level - Cottage, Country

Plan Details

  • Dutch gables and stone accents provide an enchanting appearance on the exterior of this home plan.
  • The spacious living room offers a masonry fireplace, atrium with window wall and is open to a dining area with bay window.
  • Kitchen has a breakfast counter, lots of cabinet space and glass sliding doors to a balcony.
  • Master suite hosts a vaulted ceiling, full bath, and walk-in closet. Guest suite also has plenty of closet space and is handy to full hall bath.
  • 380 square feet of optional living area is located on the lower level.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,547 sq. ft.

Lower Level

312 sq. ft.

1st Floor

1,235 sq. ft.

Optional Lower Level

380 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 0"

Depth

48' 10"

Max Ridge Height

20' 0"

Garage

Type

Drive Under

Area

451 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,547 sq. ft.

Lower Level

312 sq. ft.

1st Floor

1,235 sq. ft.

Optional Lower Level

380 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

34' 0"

Depth

48' 10"

Max Ridge Height

20' 0"

Garage

Type

Drive Under

Area

451 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Master Suite - 1st Floor

Plan Collections

Sloping Lot
