Plan 93018EL

EXCLUSIVE

Unique Tower Office

Heated S.F.

4,396

Beds

4

Baths

4.5

Stories

1-2

Cars

3

What's Included

Floor Plan

Basement

Reverse Floor Plan

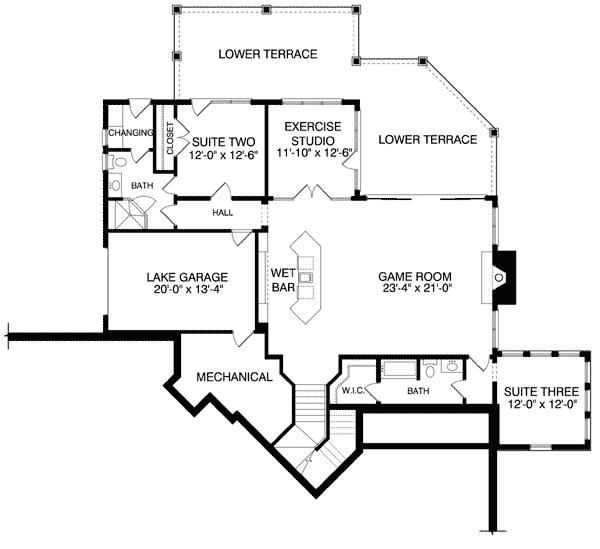

Unique Tower Office - 93018EL floor plan - Basement

Main Level

Reverse Floor Plan

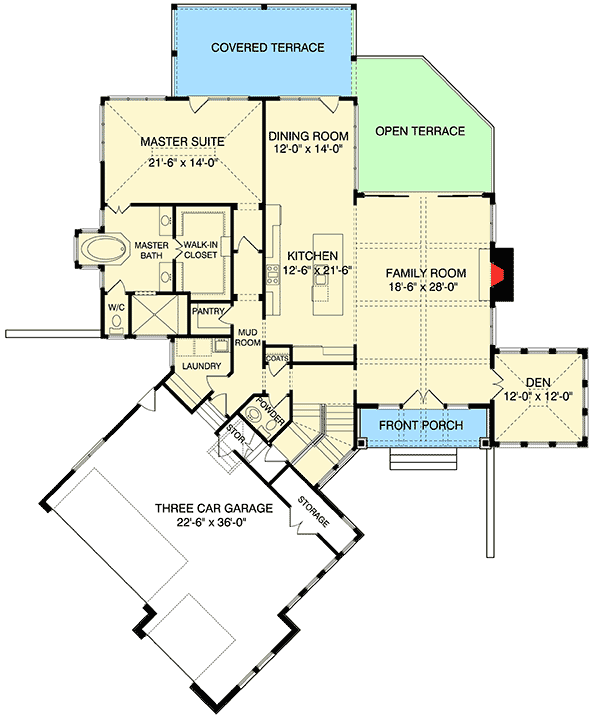

Unique Tower Office - 93018EL floor plan - Main Level

2nd Floor

Reverse Floor Plan

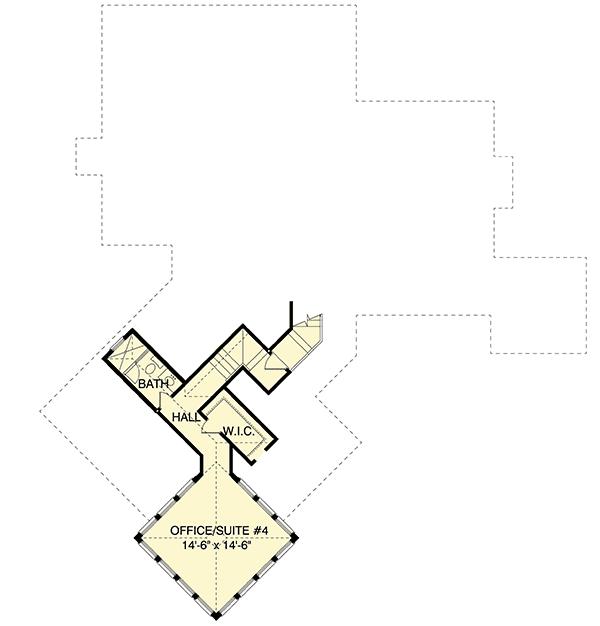

Unique Tower Office - 93018EL floor plan - 2nd Floor

Plan Details

This unique home plan has wonderful features that make it a joy to live in.
Light and airy, windows surround the first floor den and the second floor office which can easily be used as an extra bedroom.
Sweeping views greet you as you step into the home, with an unobstructed sightline all the way across the house.
Choose from an open or covered terrace in back for your outdoor enjoyment.
The lovely master suite has a vaulted ceiling and windows on three sides.
An extra-large walk-in shower and a big soaking tub await homeowners.
On the lower level, a lake garage opens to a massive finished floor with an exercise studio, huge game room with wet bar and two bedroom suites.

What's Included

Cover Sheet
General Note Sheet
Foundation Sheet
First Floor Plan
Second Floor Plan (if applicable)
Roof Framing Plan

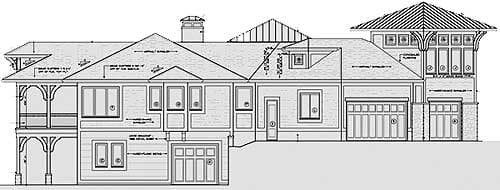

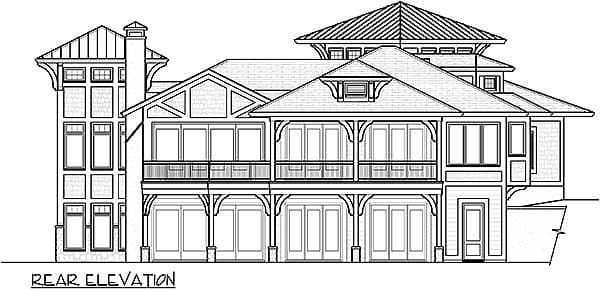

Front & Rear Elevation

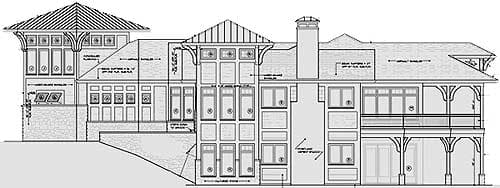

Left & Right Elevation
Openings & Sections Sheet
Foundation Details
Cornice Details
First Floor Electrical
Second Floor Electrical (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,396 sq. ft.

1st Floor:

2,222 sq. ft.

2nd Floor:

424 sq. ft.

Optional Lower Level:

1,750 sq. ft.

Porch, Combined:

1,017 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Walkout

Optional Foundations:

Basement, Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4 or 2x6

Dimensions

Width:

74' 5"

Depth:

96' 2"

Max Ridge Height:

26' 3"

Garage

Type:

Attached

Area:

931 sq. ft.

Count:

3 Cars

Entry Location:

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch:

6 on 12

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Plan Collections

Lake House Plans
