Plan 72567DA

Unique Two-Story Craftsman Design

1,865 3 4 2 2
Pageloader

Unique Two-Story Craftsman Design

Plan 72567DA

  • 1,865

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This two-story Craftsman style home plan has a unique design with a separate rec room over the detached garage - a great place for the kids to play on their own or to turn into a guest room or even a home theater.
  • The two-story living room is very bright with its great windows.
  • The owner's suite features large walk-in closet and shower plus dual vanities.
  • Two bedrooms share a bath upstairs.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

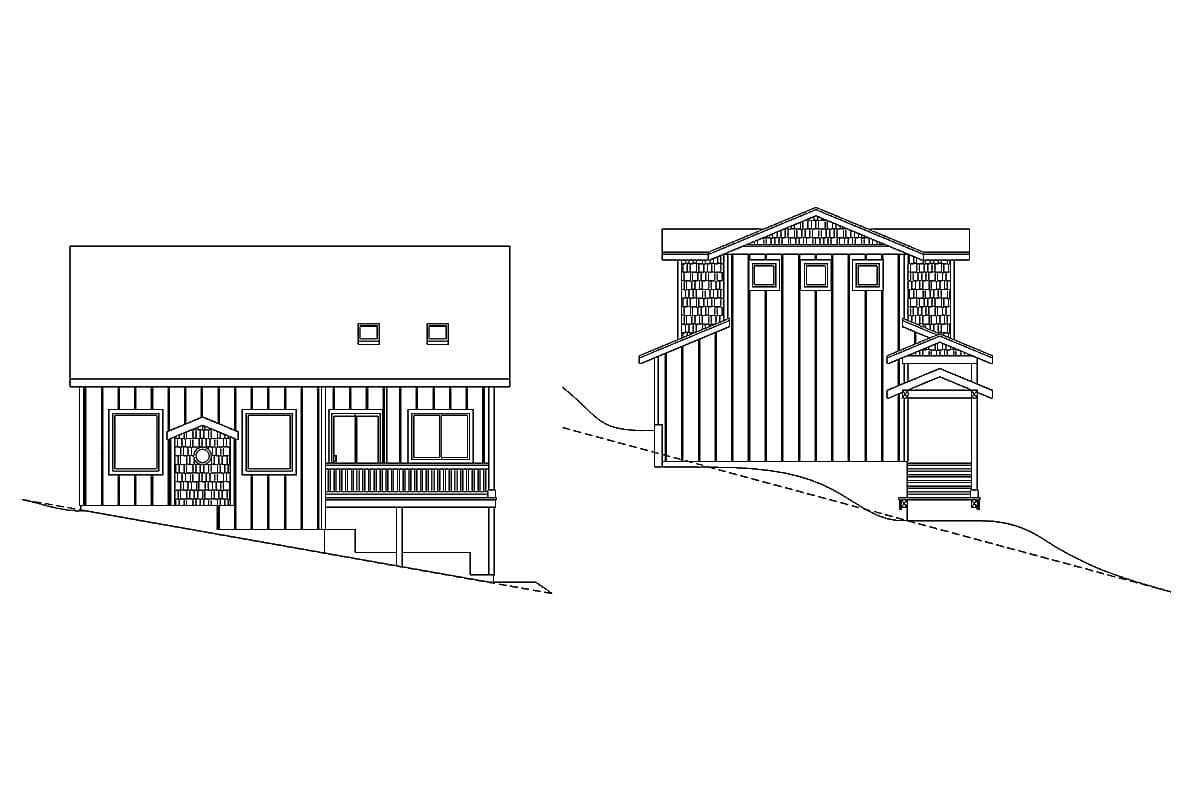

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Unique Two-Story Craftsman Design

  • 1,865

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 8 Sets $1,070
  • PDF Plus $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • This two-story Craftsman style home plan has a unique design with a separate rec room over the detached garage - a great place for the kids to play on their own or to turn into a guest room or even a home theater.
  • The two-story living room is very bright with its great windows.
  • The owner's suite features large walk-in closet and shower plus dual vanities.
  • Two bedrooms share a bath upstairs.

Floor Plans

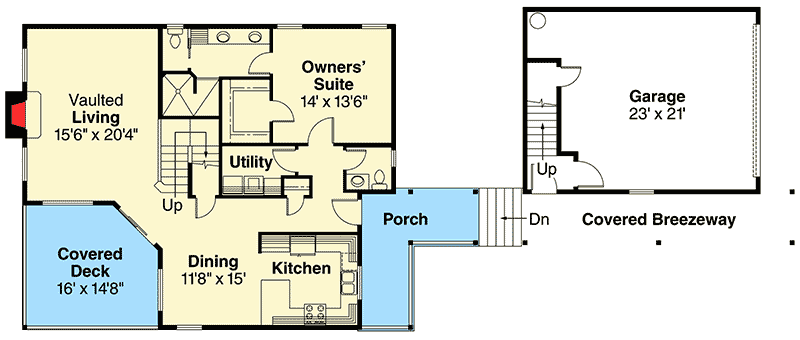

  • Main Level

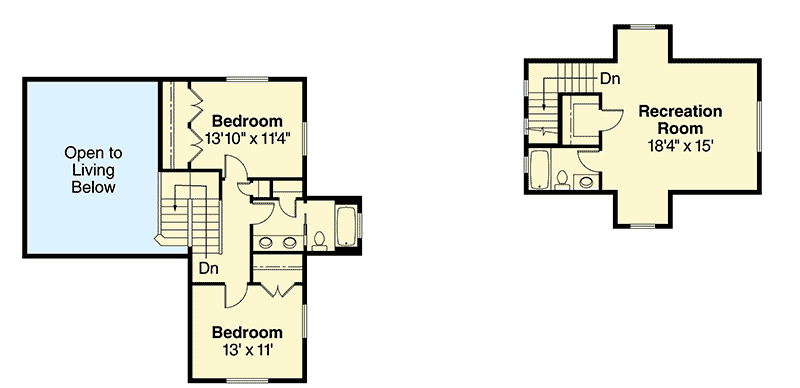

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,865 sq. ft.
  • 1st Floor: 1,311 sq. ft.
  • 2nd Floor: 554 sq. ft.
  • Bonus: 447 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 48' 0"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Media-Game-Home Theater
  • PDF
