Plan 36552TX

Upscale European House Plan

Pageloader

Upscale European House Plan

Plan 36552TX

  • 2,867

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Bold arched and round windows plus gorgeous roof lines give you a spectacular European house plan to call home.
  • The open layout is visible right from the foyer with views that stretch all the way back to the rear covered porch.
  • You can use bedroom 3 as a study if you desire.
  • The master suite comes with an enormous master bathroom with a giant round soaking tub and two spacious walk-in closets.
  • There's a bayed sitting area where you can relax as you start and end your day.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

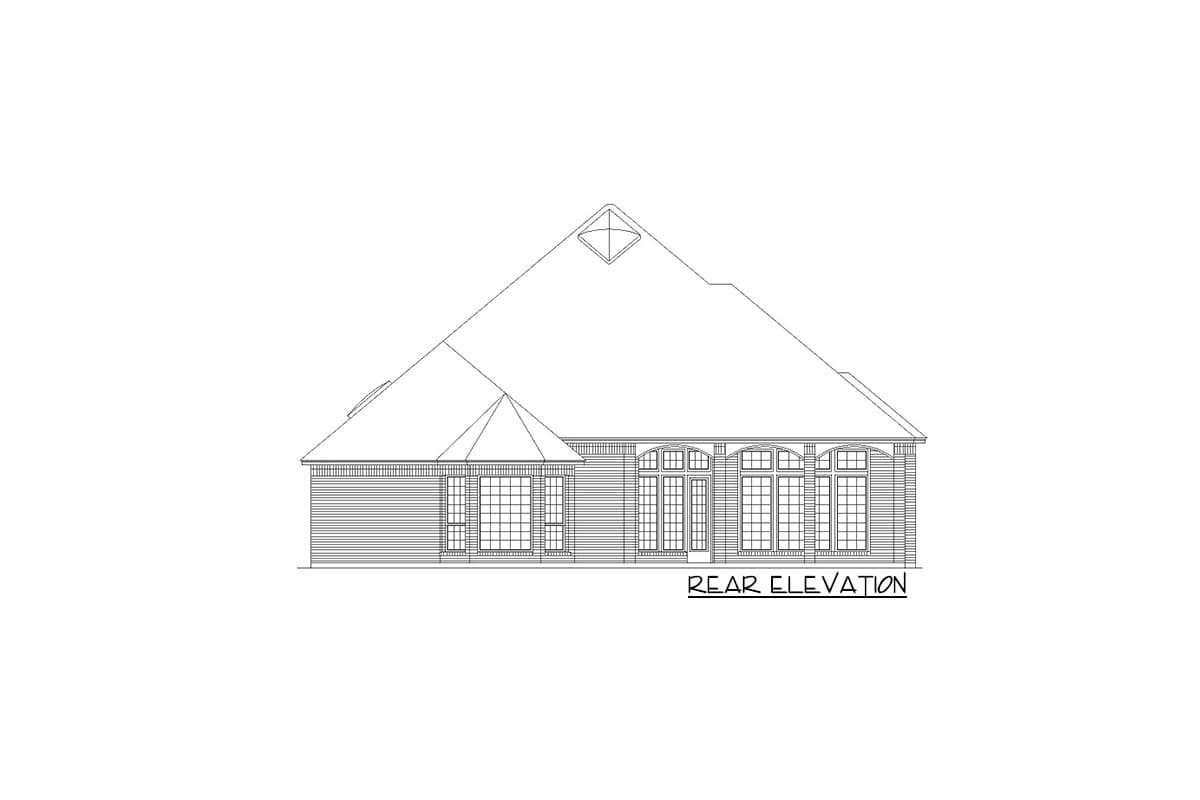

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

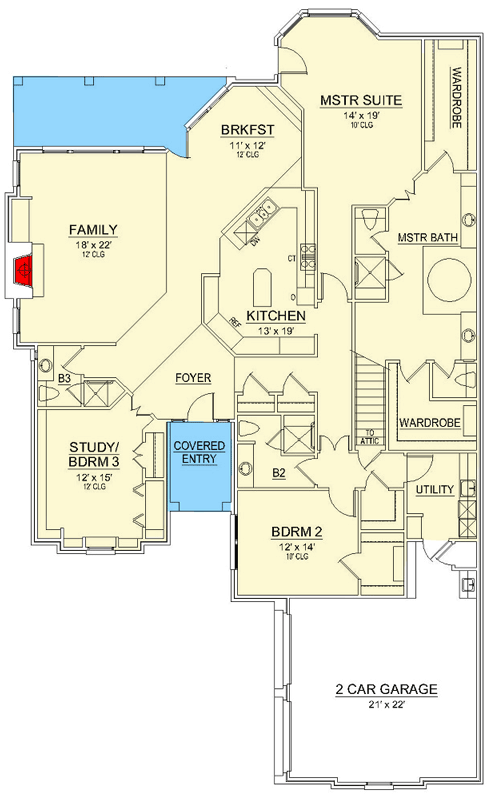

Floor Plan

Plan details



Upscale European House Plan

  • 2,867

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,075
  • 5 Sets $1,275
  • CAD $1,620
  • View all purchase option online

About This Plan

  • Bold arched and round windows plus gorgeous roof lines give you a spectacular European house plan to call home.
  • The open layout is visible right from the foyer with views that stretch all the way back to the rear covered porch.
  • You can use bedroom 3 as a study if you desire.
  • The master suite comes with an enormous master bathroom with a giant round soaking tub and two spacious walk-in closets.
  • There's a bayed sitting area where you can relax as you start and end your day.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,867 sq. ft.
  • 1st Floor: 2,867 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 67' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
