Plan 1739LV
Upscale French Country Abode
Heated S.F.
5,155
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • With four bedrooms, three full baths and a powder room, plus a studio apartment over the garage, this upscale French country design easily can accommodate the needs of a large family and its guests. The home is filled with luxurious extras.

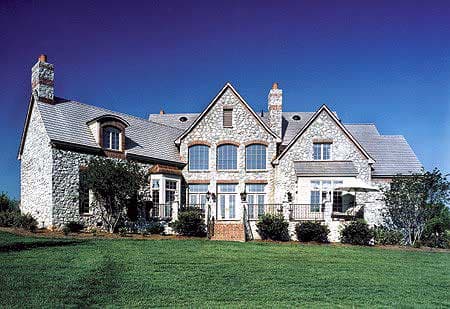

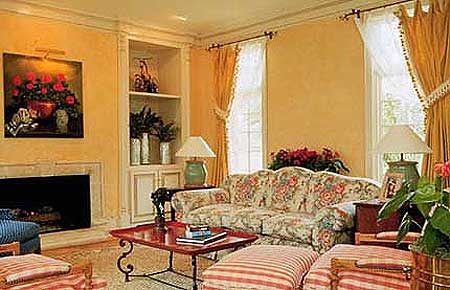

  • Four fireplaces on the first floor each can be bordered by optional cabinets. Featuring exposed beams, the central grand room rises for two stories and opens to a large terrace in back. The grand room flows into the bayed morning area, gathering room and islanded kitchen with walk-in pantry.

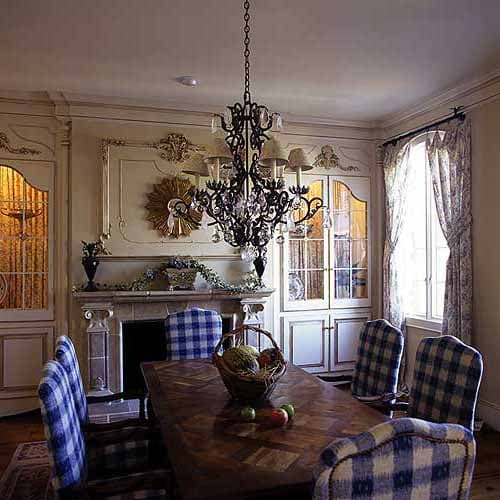

  • A formal dining room, a study and a super-deluxe master suite complete the first floor. Upstairs, a home theater is placed near bedroom four. The studio apartment over the detached three-car garage has an area of 641 square feet.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Upscale French Country Abode

  • 5,155

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,155 sq. ft.
  • 1st Floor: 3,389 sq. ft.
  • 2nd Floor: 1,766 sq. ft.

Dimensions

  • Width: 121' 2"
  • Depth: 104' 4"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 928 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
