Plan 72781DA Vacation Cabin With Bonus Above

1,120 2 2 1-2
Print
Compare
...

Vacation Cabin With Bonus Above

Plan 72781DA

  • 1,120

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • Designed as a vacation retreat, this cabin home plan has a small footprint and blends easily into a natural setting.
  • Its covered porch and deck offer plenty of outdoor living space as well, spanning the front and one full side.
  • A lofty vaulted ceiling expands the great room, nook and kitchen.
  • This bungalow house plan's upstairs is an unfinished bonus room and deck.
  • The roof has a 9:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

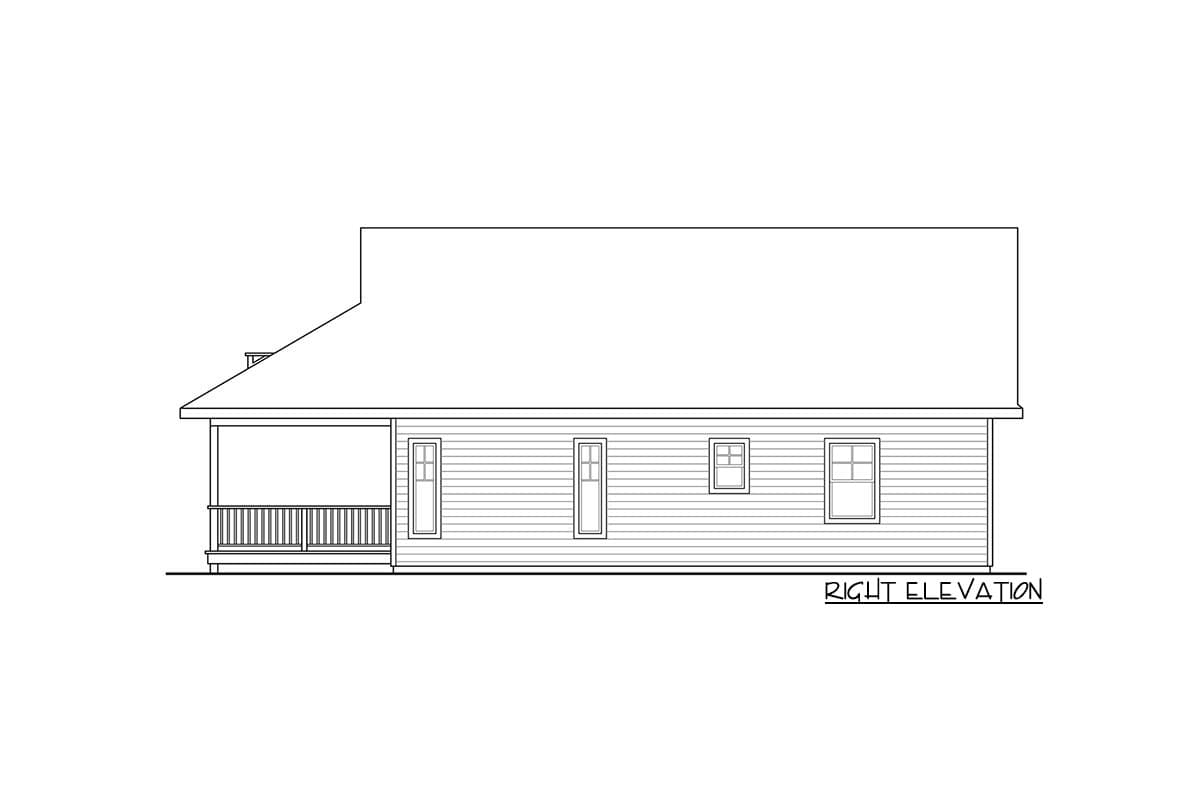

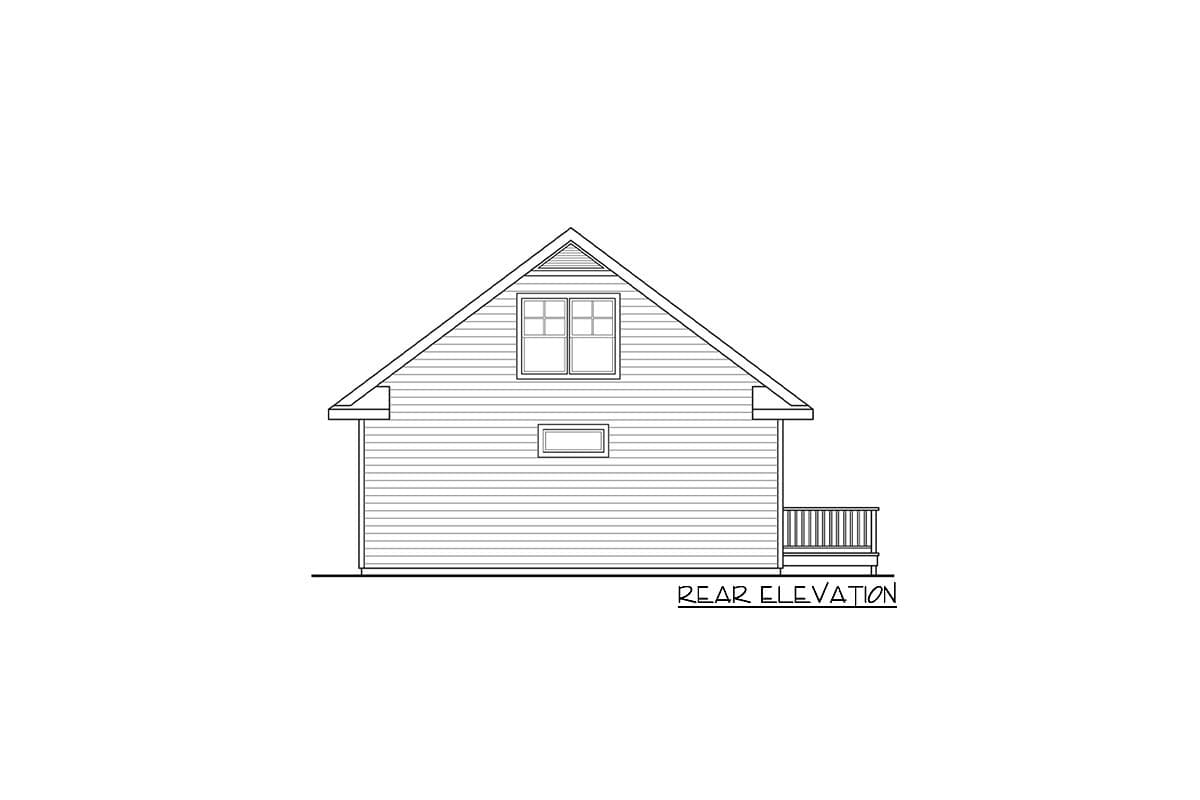

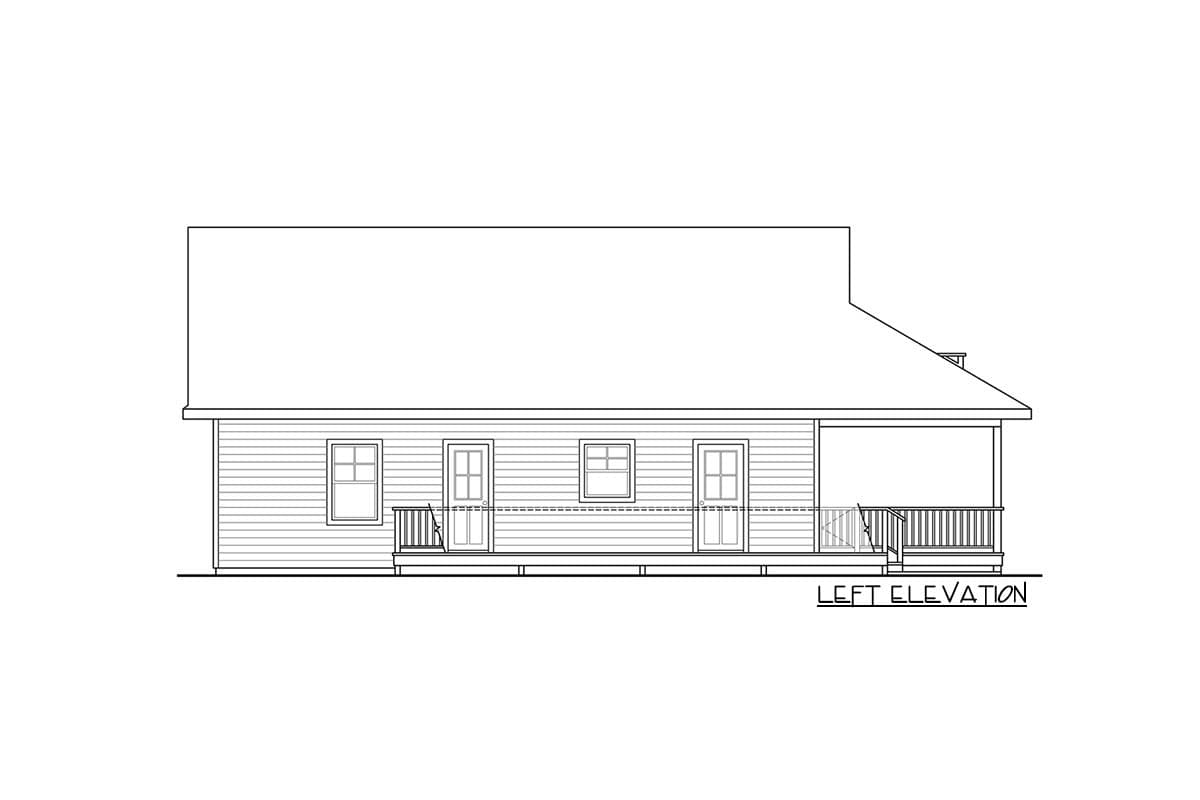

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

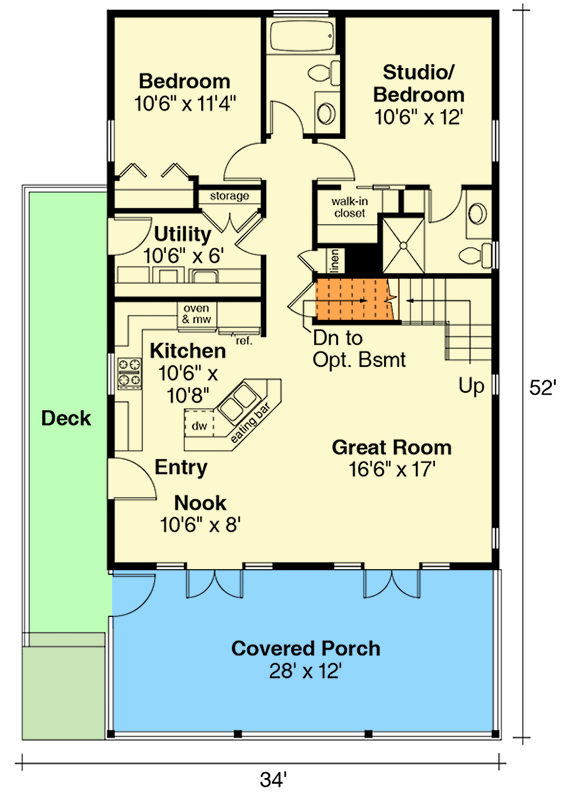

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Cabin With Bonus Above - 72781DA floor plan - Main Level

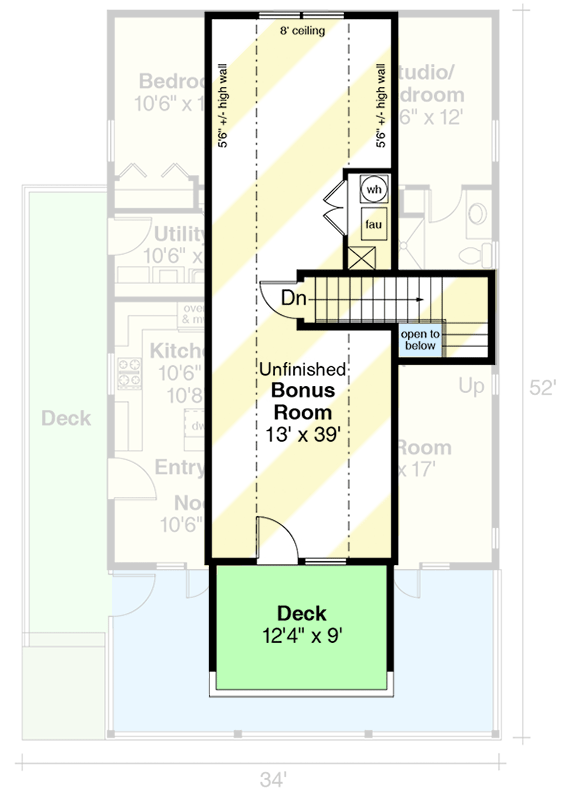

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Vacation Cabin With Bonus Above - 72781DA floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,120 sq. ft.
  • 1st Floor: 1,120 sq. ft.
  • Deck: 110 sq. ft.
  • Porch, Front: 336 sq. ft.
  • Bonus: 540 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 52' 0"
  • Max ridge height: 23' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features



Vacation Cabin With Bonus Above

  • 1,120

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1-2

    Floors

Buy This Plan
  • Study Set – Digital $610
  • PDF Light $845
  • 5 Sets + PDF $945
  • PDF - Single-Build $1,660
  • CAD - Single-Build $1,845
  • CAD - Unlimited Build $2,045
  • View all purchase option online

About This Plan

  • Designed as a vacation retreat, this cabin home plan has a small footprint and blends easily into a natural setting.
  • Its covered porch and deck offer plenty of outdoor living space as well, spanning the front and one full side.
  • A lofty vaulted ceiling expands the great room, nook and kitchen.
  • This bungalow house plan's upstairs is an unfinished bonus room and deck.
  • The roof has a 9:12 pitch.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,120 sq. ft.
  • 1st Floor: 1,120 sq. ft.
  • Deck: 110 sq. ft.
  • Porch, Front: 336 sq. ft.
  • Bonus: 540 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 52' 0"
  • Max ridge height: 23' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
