Plan 57310HA

Vacation Cottage

Heated S.F.

1,433

Beds

2

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

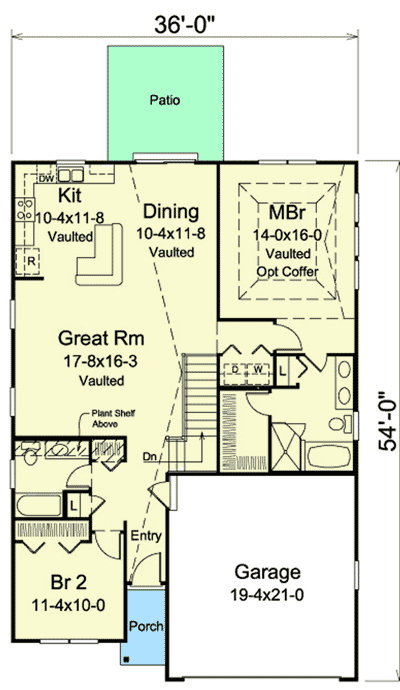

Vacation Cottage - 57310HA floor plan - Main Level

Plan Details

This beautiful Vacation Cottage has two bedrooms and a simple layout that makes it easy to maintain and clean.
Vaulted ceilings expand the great room, kitchen and dining room.
Add elegance with the optional coffered ceiling in the master bedroom with its private bathroom.
The second bedroom faces the front of the house and has a nearby bathroom with linen closet.
The two car garage keeps your cars warm and dry in your vacation setting.

What's Included

Front Cover Sheet
Detailed Floor Plans
Foundation Plan
Roof Plan

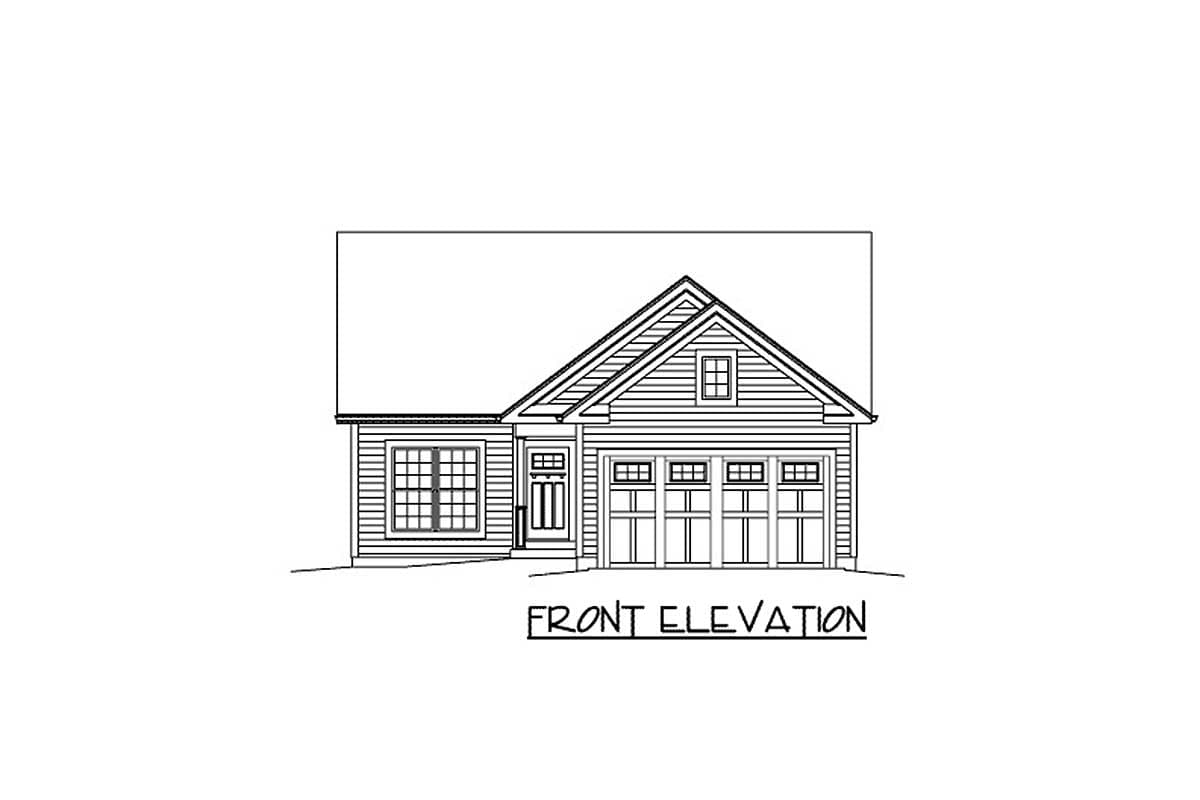

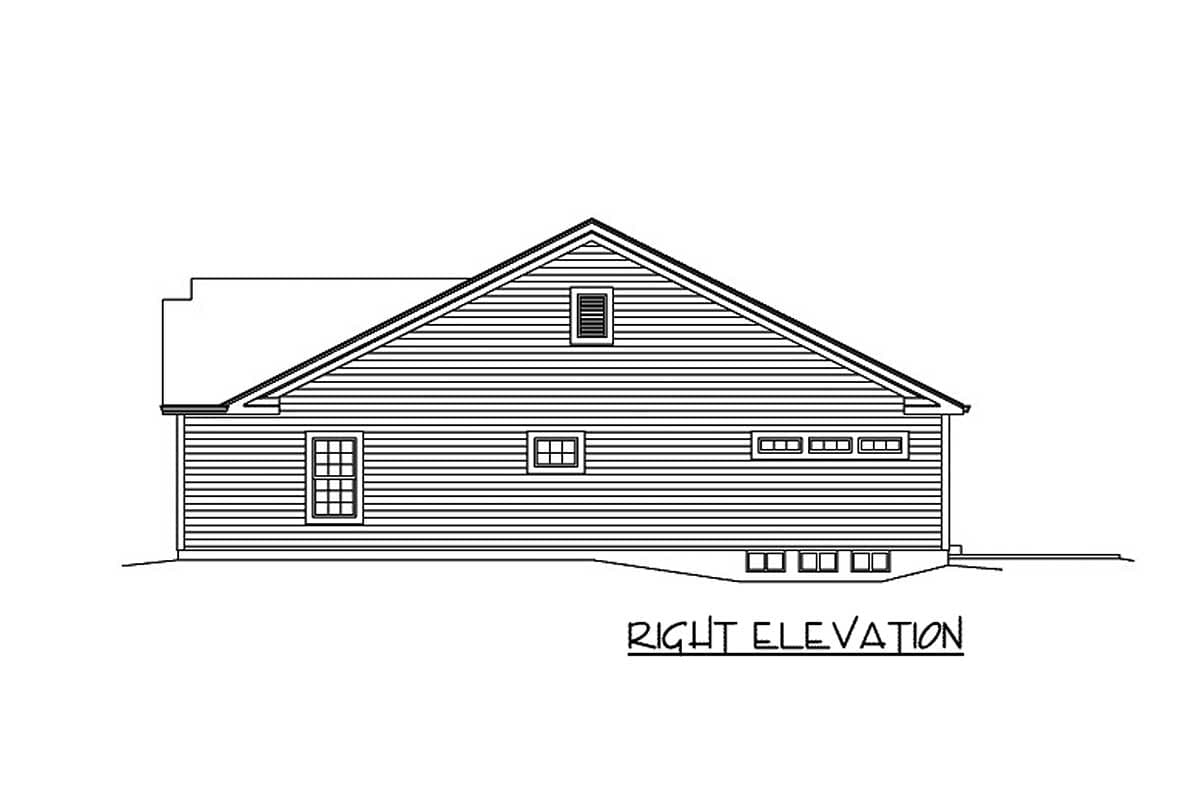

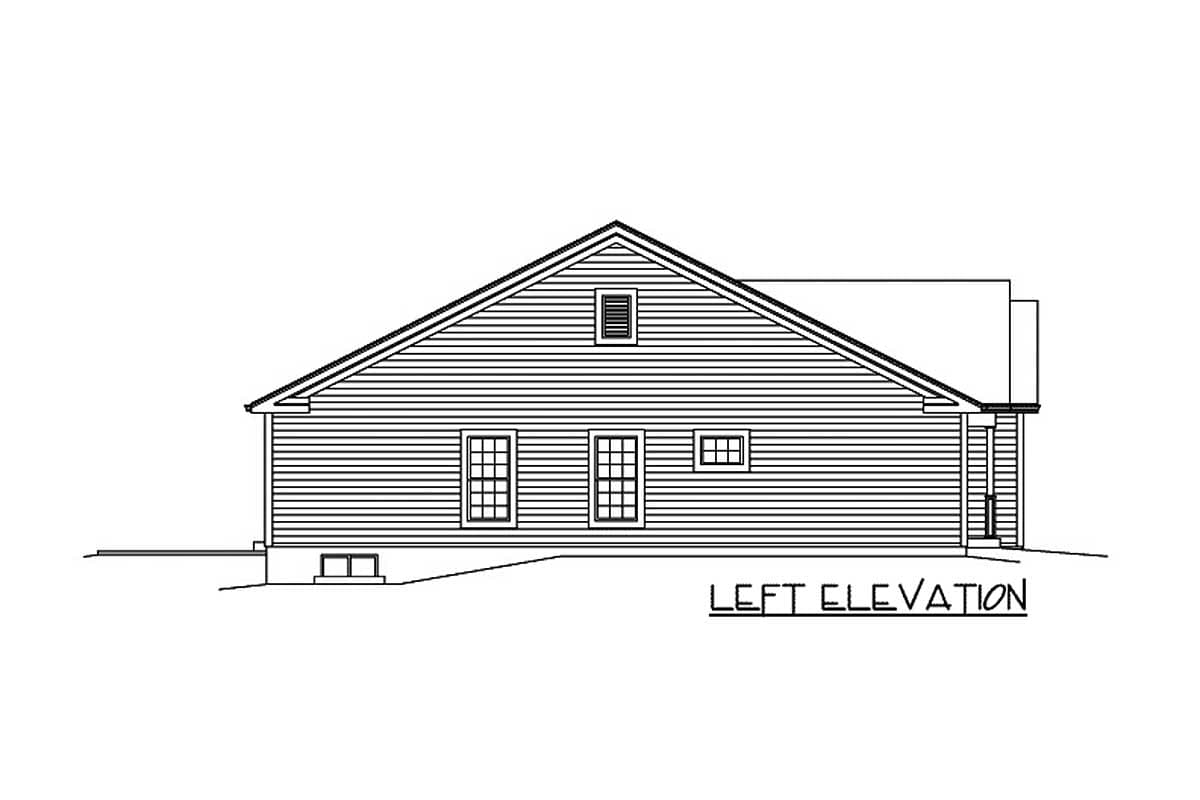

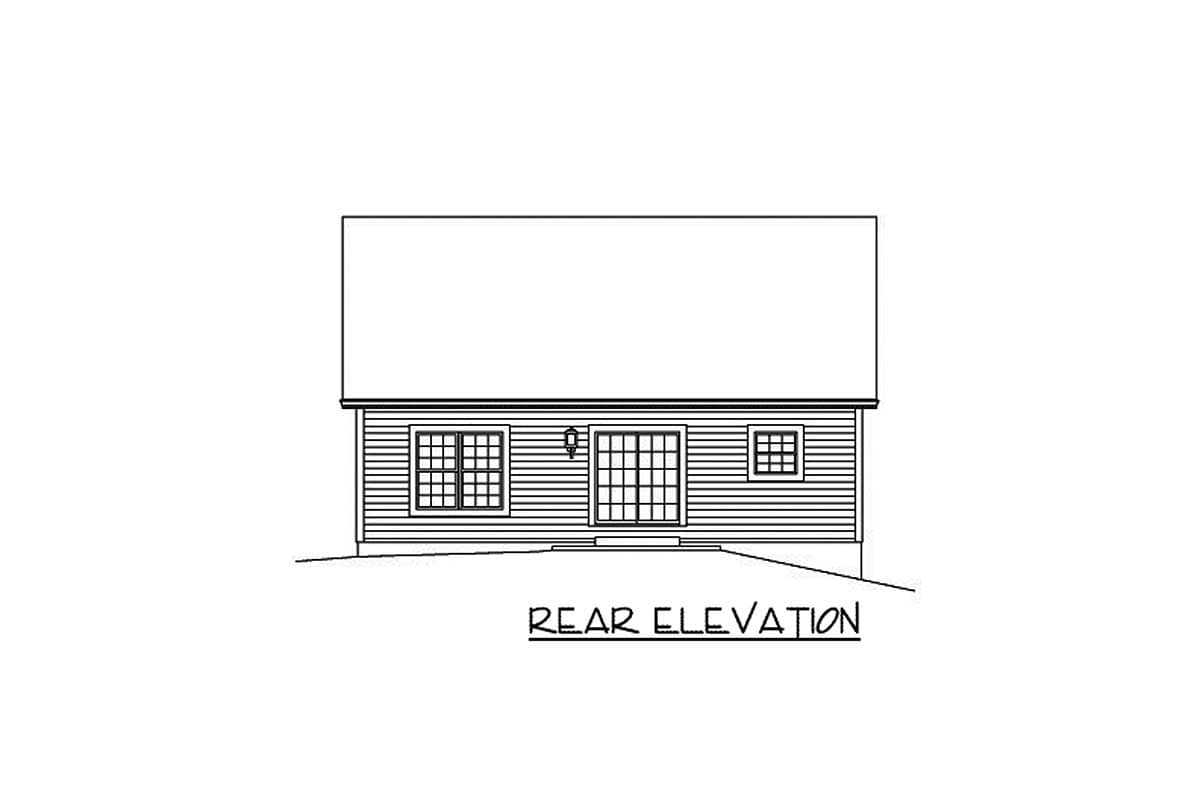

Exterior Elevations
Interior Elevations
Cross Section
Mechanical – Shows location of furnace
Electrical – Shows location of outlets, switches and fixtures
Plumbing – Shows location of fixtures

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,433 sq. ft.

1st Floor:

1,433 sq. ft.

Basement Unfinished:

1,331 sq. ft.

Entry:

33 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Foundation Type

Standard Foundations:

Basement

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

36' 0"

Depth:

54' 0"

Max Ridge Height:

25' 2"

Garage

Type:

Attached

Area:

407 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch:

6 on 12

Secondary Pitch:

10 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor
