Vacation Cottage or Retirement Plan

Plan 22080SL

  • 1,282

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • Just the right size for a vacation getaway, this plan would also work well as a retirement house.
  • Vaulted ceilings extend right through the family room, breakfast nook and spacious kitchen with an island.
  • Two bathrooms allow the master suite to have some privacy as well as a walk-in closet.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

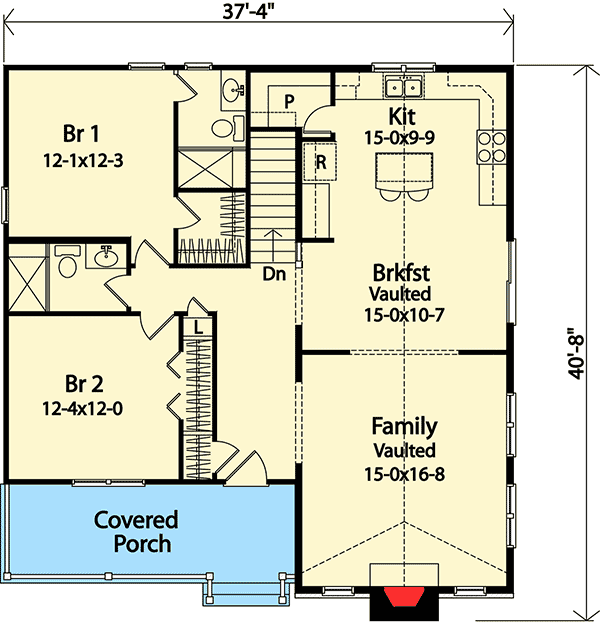

Vacation Cottage or Retirement Plan - 22080SL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,282 sq. ft.
  • 1st Floor: 1,282 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 37' 4"
  • Depth: 40' 8"
  • Max ridge height: 19' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Vacation Cottage or Retirement Plan

  • 1,282

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $550
  • CAD - Single-Build $650
  • PDF - Unlimited Build $1,550
  • CAD - Unlimited Build $1,650
  • View all purchase option online

About This Plan

  • Just the right size for a vacation getaway, this plan would also work well as a retirement house.
  • Vaulted ceilings extend right through the family room, breakfast nook and spacious kitchen with an island.
  • Two bathrooms allow the master suite to have some privacy as well as a walk-in closet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,282 sq. ft.
  • 1st Floor: 1,282 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 37' 4"
  • Depth: 40' 8"
  • Max ridge height: 19' 6"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
Plan 22080SL
View this and more for this plan by visiting www.architechtecturaldesigns.com/22080SL
|
Need Help? 800-854-7852
|
