Plan 24114BG
Vacation Cottage with Drive Under Garage
Heated S.F.
1,298
Beds
3
Baths
2
Stories
2
Cars
2
What's Included
Plan Details
  • Wonderful porches front and rear and an open floor plan mark this Vacation Cottage Home Plan with a drive-under garage.
  • Two sets of double doors lead to the covered back porch or sit in the sun on the open deck.
  • The master suite is located on the first floor and has a large walk-in closet and porch access.
  • On the second floor, each of the two bedrooms has a cathedral ceiling and they share a hall bath and a recessed desk area.
  • The lower level has room for two cars plus ample storage. If needed, you can easily convert this space to living space. With the right lot, it would be perfect for a large rec room or for use as a home theater and extra bedroom suite.
  • The main roof pitch is 10/12 and it is designed with trusses.
  • Please note, this house plan is restricted from use in Fannin County, Georgia.
What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vacation Cottage with Drive Under Garage

  • 1,298

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

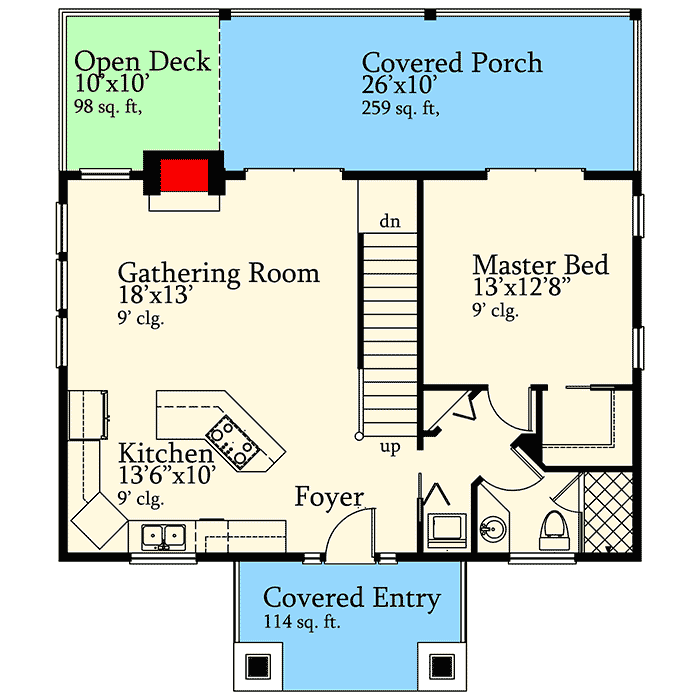

Floor Plan

  • Main Level

  • 2nd Floor

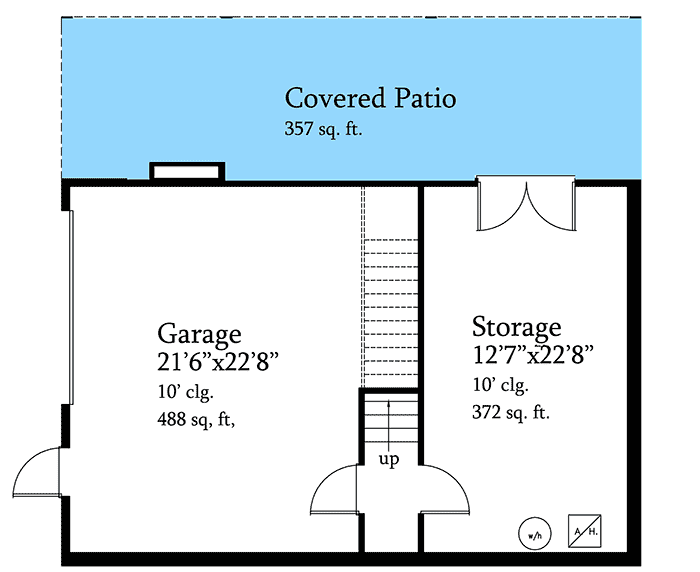

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,298 sq. ft.
  • 1st Floor: 860 sq. ft.
  • 2nd Floor: 438 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 42' 0"
  • Max ridge height: 21' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 488 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
