Vacation Home Plan with Unusual Shape

Plan 72721DA

This plan plants 10 trees

2,177
Heated s.f.
2-3
Beds
2
Baths
1
Stories

An unusual shape adds distinction to this rustic Vacation home plan that works as a beach house or mountain or lake getaway.
Vaulted ceilings soar upward in most rooms, expanding the space.
From the kitchen you can see into the huge great room with windows on three sides.
There are porches and decks on almost every side of the home.
The master suite is given separation from the other bedrooms - a nice feature.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering An artist's drawing of the home, usually viewed from the front, and general construction notes.

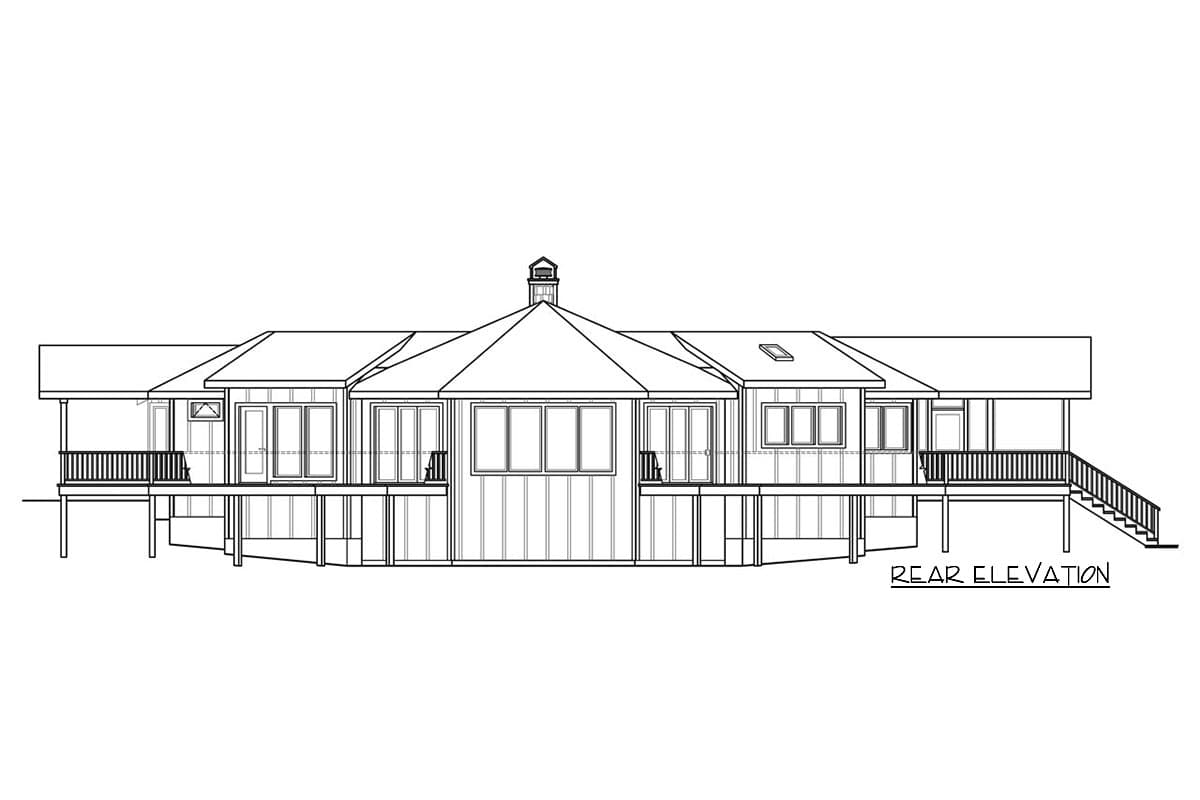

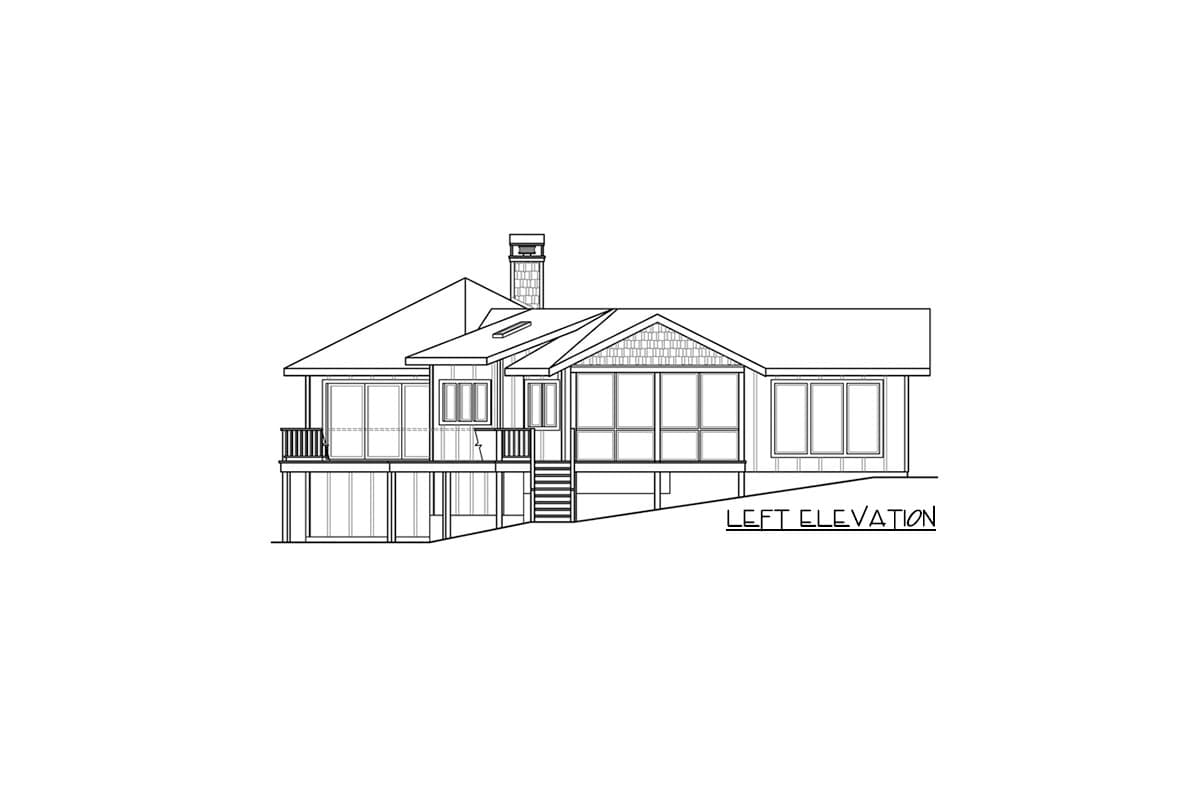

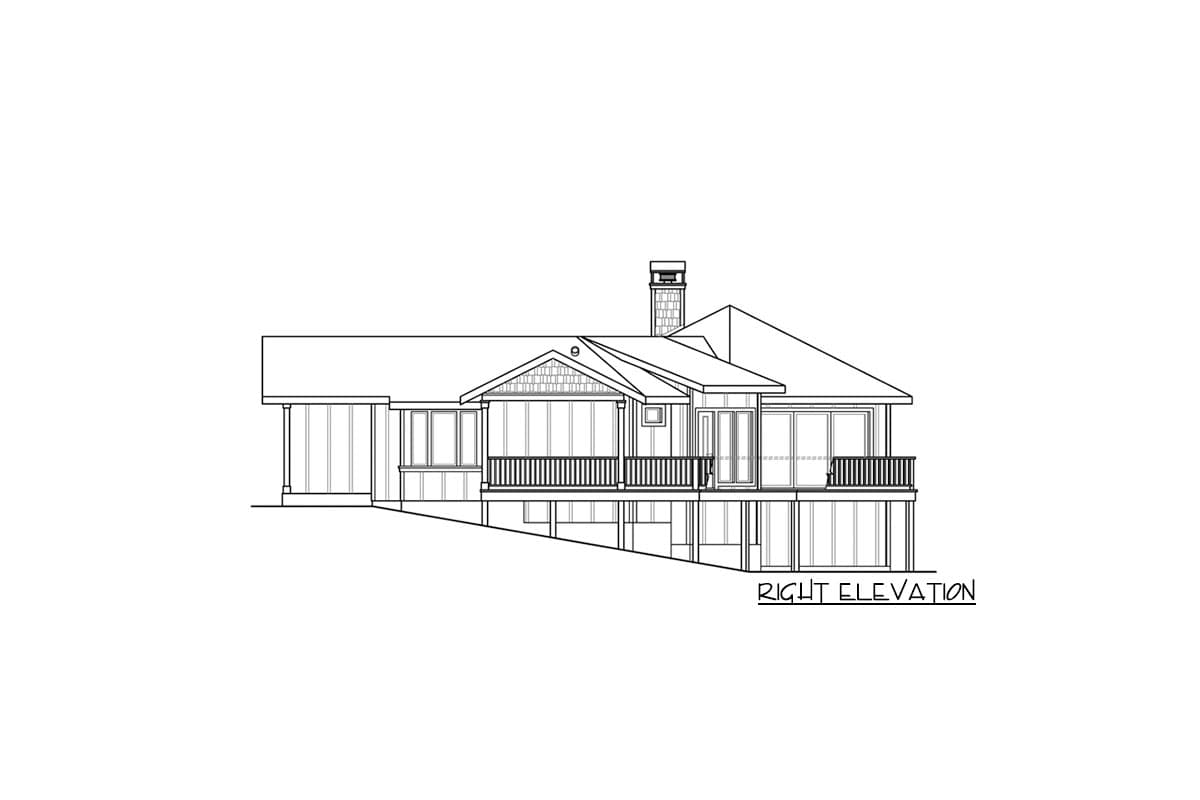

Elevations Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc. Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan A schematic layout of all lighting, switches and electrical outlets. These items are NOT included: Architectural or Engineering Stamp - handled locally if required Site Plan - handled locally when required Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

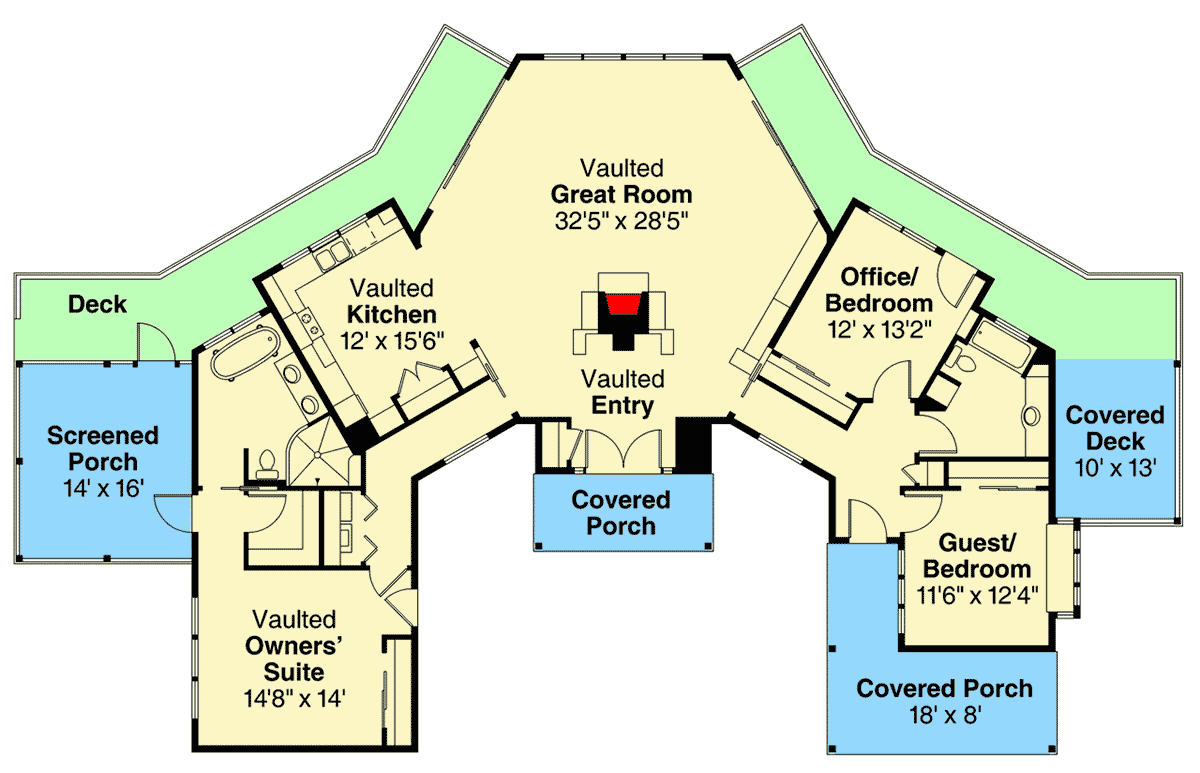

Vacation Home Plan with Unusual Shape - 72721DA floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,177 sq. ft.
1st Floor: 2,177 sq. ft.

Screened Porch: 224 sq. ft.

Beds/Baths

Bedrooms: 2 or 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Basement, Slab

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 92' 10"
Depth: 55' 8"
Max ridge height: 18' 5"

Roof Details

Primary Pitch: 6 on 12

Architectural Style
