Plan 48472FM

Vaulted and Beamed Great Room

Pageloader

Vaulted and Beamed Great Room

Plan 48472FM

  • 2,492

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Gorgeous views of the vaulted and beamed great room of this elegant French Country house plan start right at the foyer.
  • Built-ins and art niches can be found throughout the home adding a custom touch.
  • The open layout enhances views from room to room.
  • The dashing master suite has a bayed sitting area, tray ceiling and a huge walk-in closet.
  • Both of the remaining two bedrooms are on the opposite side of the home and share a jack and jill bathroom between them.
  • The covered patio gives you a quiet and private place to relax in the shade.
  • Bonus space on the upper floor comes with an optional half bath.

Each plan set includes the following:

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

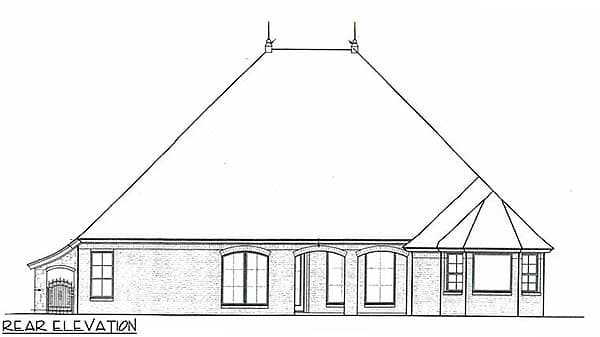

  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section


Plan details



Vaulted and Beamed Great Room

  • 2,492

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $990
  • 5 Sets $1,045
  • 8 Sets $1,185
  • Reproducible Set $1,335
  • PDF - single-use $1,335
  • CAD $2,015
  • View all purchase option online

About This Plan

  • Gorgeous views of the vaulted and beamed great room of this elegant French Country house plan start right at the foyer.
  • Built-ins and art niches can be found throughout the home adding a custom touch.
  • The open layout enhances views from room to room.
  • The dashing master suite has a bayed sitting area, tray ceiling and a huge walk-in closet.
  • Both of the remaining two bedrooms are on the opposite side of the home and share a jack and jill bathroom between them.
  • The covered patio gives you a quiet and private place to relax in the shade.
  • Bonus space on the upper floor comes with an optional half bath.

Floor Plans

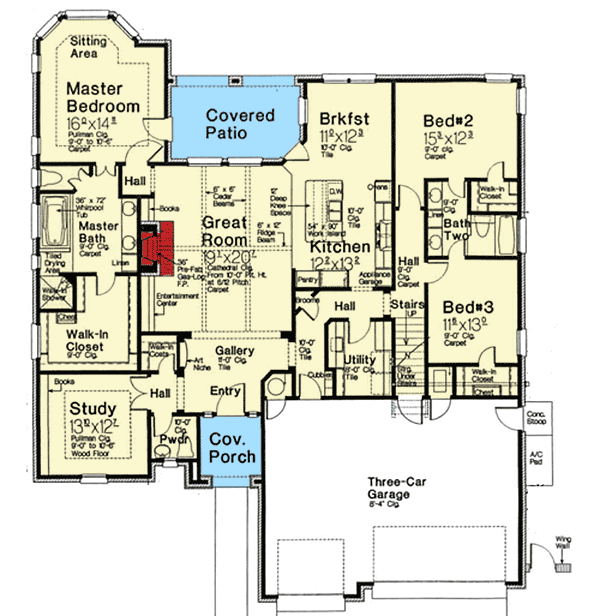

  • Main Level

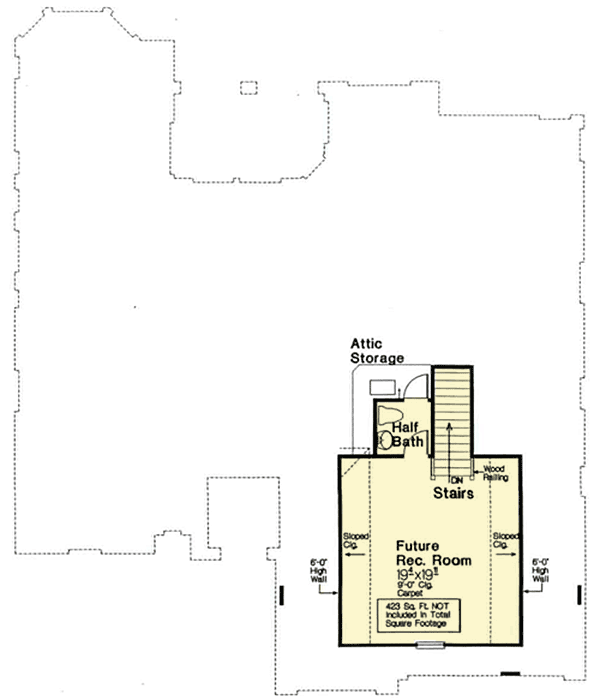

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,492 sq. ft.
  • 1st Floor: 2,492 sq. ft.
  • Bonus: 423 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 72' 0"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 783 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick
