Plan 290073IY
Vaulted Bonus Room Included
Heated S.F.
2,426
Beds
3-6
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan
Vaulted Bonus Room Included - 290073IY floor plan - Main Level
2nd Floor
Reverse Floor Plan

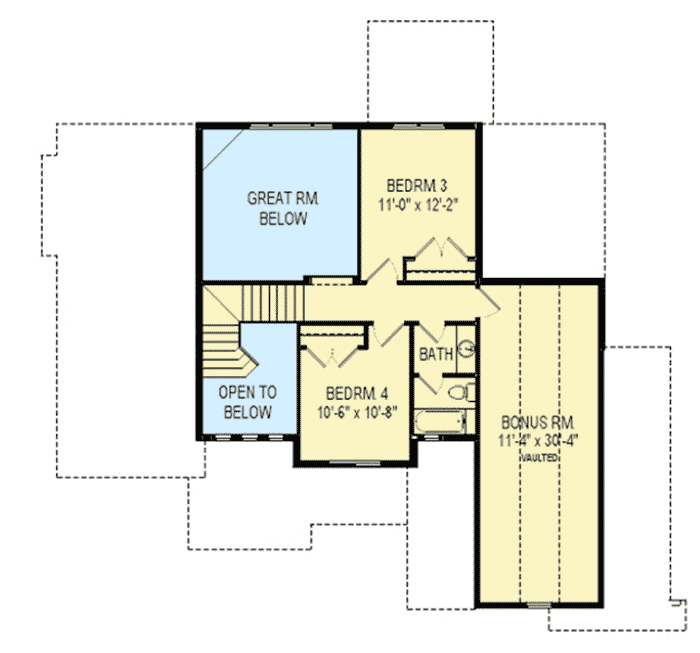

Vaulted Bonus Room Included - 290073IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

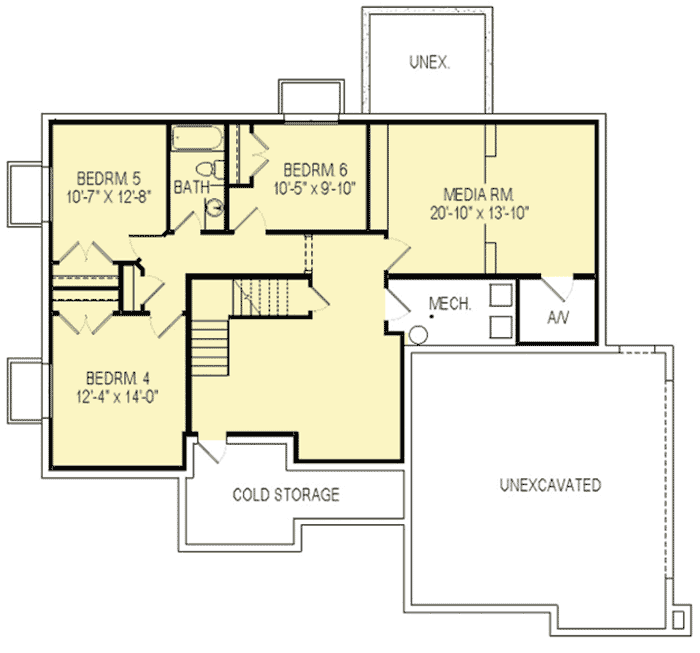

Vaulted Bonus Room Included - 290073IY floor plan - Optional Lower Level
Plan Details
  • A gorgeous fanned staircase is the first thing you see when you enter the two-story foyer of this Traditional house plan.
  • The big, open layout lets you see all the way from the kitchen to the two-story great room corner fireplace.
  • The master suite is the only bedroom on the first floor. Two others are up on the second floor.
  • Vaulted ceilings top the finished bonus room that lies over the two car garage.
  • Need more bedrooms?  Finish the optional lower level that has room for three more plus a media room with platform seating.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vaulted Bonus Room Included

  • 2,426

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,426 sq. ft.
  • 1st Floor: 1,514 sq. ft.
  • 2nd Floor: 912 sq. ft.

Dimensions

  • Width: 61' 4"
  • Depth: 58' 0"
  • Max ridge height: 28' 9"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 621 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
