Plan 72715DA
Vaulted Covered Patio In Back
Heated S.F.
1,948
Beds
3
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • A welcoming front porch enhances the comfortably styling of this two story home plan. Because its 3-car garage is entered via side access, no garage doors distract from this inviting exterior.
  • Inside, a convenient half-bathroom is to the right of the entry, and a den/office is to the left. This configuration is ideal for use as an office for a home business with occasional clients. A deep storage closet fills the space under the stairs.
  • The kitchen sits at the heart of the home. From the sink work island, you can look out into the bright and lofty vaulted great room, the patio, and the dining room. A raised eating bar rims the dining room's interface, while a slightly narrower counter fronts the great room. Storage aplenty is available in the step-in pantry that fills one corner.
  • In the great room, a fireplace nestles into a rear corner next to a stack of high windows that fill most of the rear wall. The lower sections of glass slide open to provide easy, breezy access to the vaulted and covered patio.
  • Owners' suite amenities include a large walk-in closet, plus a two-section bathroom with a dual vanity and enclosed toilet and shower. Two more bedrooms are upstairs, along with a third bathroom. Skylights brighten the upper bathroom, stairs and hallway.
  • The roof has a 6:12 pitch.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

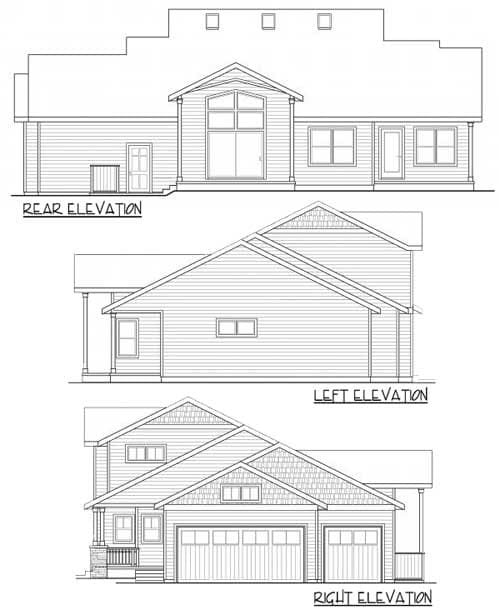

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Vaulted Covered Patio In Back

  • 1,948

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

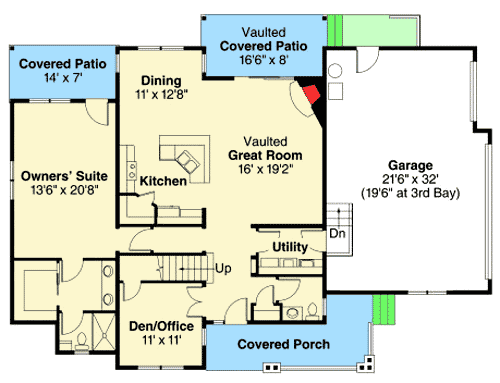

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,948 sq. ft.
  • 1st Floor: 1,496 sq. ft.
  • 2nd Floor: 452 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 47' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 709 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
