Vaulted Great Room Beauty

Plan 25403TF

  • 2,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A 3-car garage comes off the front of this southern country home plan and a covered porch adds to its curb appeal.
  • The central axis of the home plan is vaulted and wide open. From the fireplace in the living room you have unimpeded views straight to the kitchen.
  • A large deck is accessible by French doors off the great room and a single door from the dining room. A smaller screened porch off the dining room gives you a second option for enjoying the outdoors with a modicum of cover.
  • Pocket doors reveal the study off the foyer.

Plans include the following:
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

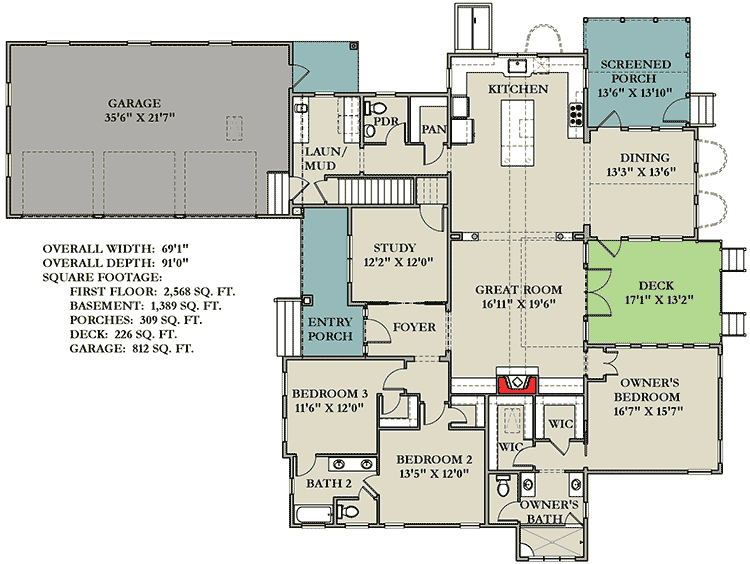

Vaulted Great Room Beauty - 25403TF floor plan - Main Level

Vaulted Great Room Beauty

  • 2,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,568 sq. ft.
  • 1st Floor: 2,568 sq. ft.

Dimensions

  • Width: 69' 1"
  • Depth: 91' 0"
  • Max ridge height: 29' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Slab
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick and Truss
