Plan 72666DA

Vaulted Guest Cottage

Heated S.F.
414
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 72666DA

Main Level
Main Level
Bonus
Bonus

Plan 72666DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 72666DA: Vaulted Guest Cottage - Floor Plan - Main Level - Cottage, Vacation

Bonus

Plan 72666DA: Vaulted Guest Cottage - Floor Plan - Bonus - Cottage, Vacation

Plan Details

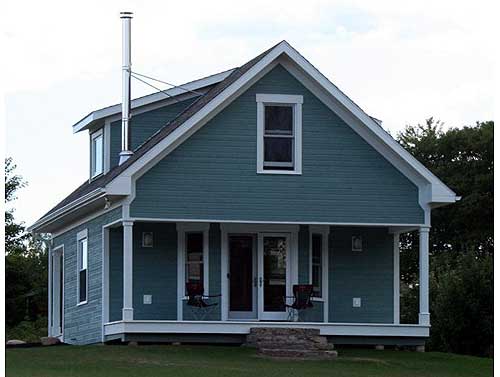

  • This delightful guest cottage makes a relaxing stay for friends and family. Enter through the double doors to the great room with a wood stove in the corner.
  • Towards the rear of the cottage is a kitchenette, perfect for allowing guest to make there own snacks and lunches if they would like. There is also a full bathroom.
  • Ladders on both sides of the great room access the two storage spaces above where you could sneak in a bed in a pinch.
  • Each of the vaulted storage areas has a couple feet in the center of the space that has an 8' ceiling height and they slope down to 4' high walls, so there is a small, flat section of ceiling.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

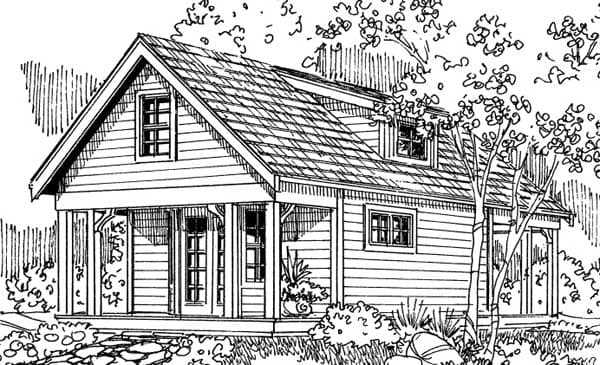

  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

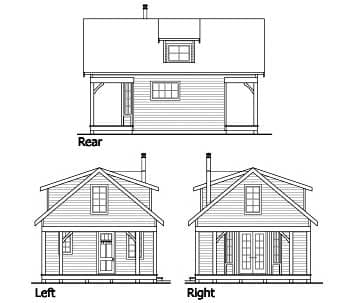

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

414 sq. ft.

1st Floor

414 sq. ft.

Storage

269 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

32' 0"

Max Ridge Height

22' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Vacation

Plan Collections

Photo Gallery

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

414 sq. ft.

1st Floor

414 sq. ft.

Storage

269 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

22' 0"

Depth

32' 0"

Max Ridge Height

22' 2"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Vacation

Plan Collections

Photo Gallery

Tiny Home House Plans
