Plan 23264JD Vaulted One-Story Bungalow

1,249 2 2 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Vaulted One-Story Bungalow

Plan 23264JD

  • 1,249

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This charming one-story bungalow house plan features vaulted spaces indoor and out, including both the front covered porch and rear covered patio.
  • The foyer has a 14' ceiling and the great room features a 12'4" vaulted ceiling with a fireplace shared by the vaulted rear covered patio.
  • Vaults continue in the den and nook, both with patio access.
  • The kitchen is open to the great room and nook. Casual meals can be had at the counter.
  • The master bedroom is vaulted and double vanities are found in the bath. A second bedroom has its own bath with laundry tucked away as well.
  • Related Plan: Get a larger version with house plan 23262JD (1,657 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

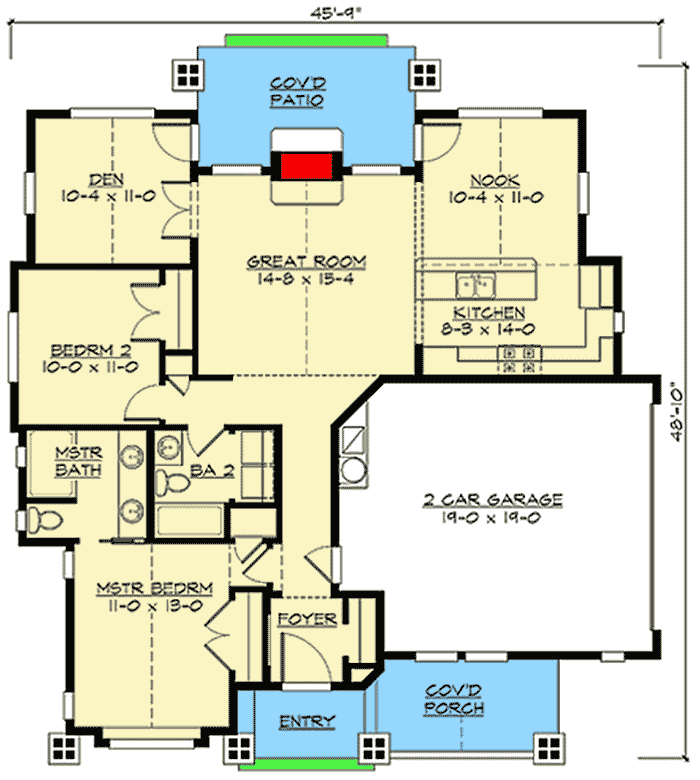

Vaulted One-Story Bungalow - 23264JD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,249 sq. ft.
  • 1st Floor: 1,249 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 50' 0"
  • Max ridge height: 15' 6"

Garage

  • Type: Attached
  • Area: 423 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room 12' 4"
Foyer 14' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Vaulted One-Story Bungalow

  • 1,249

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • CAD + PDF - Unlimited Build $2,600
  • View all purchase option online

About This Plan

  • This charming one-story bungalow house plan features vaulted spaces indoor and out, including both the front covered porch and rear covered patio.
  • The foyer has a 14' ceiling and the great room features a 12'4" vaulted ceiling with a fireplace shared by the vaulted rear covered patio.
  • Vaults continue in the den and nook, both with patio access.
  • The kitchen is open to the great room and nook. Casual meals can be had at the counter.
  • The master bedroom is vaulted and double vanities are found in the bath. A second bedroom has its own bath with laundry tucked away as well.
  • Related Plan: Get a larger version with house plan 23262JD (1,657 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,249 sq. ft.
  • 1st Floor: 1,249 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 50' 0"
  • Max ridge height: 15' 6"

Garage

  • Type: Attached
  • Area: 423 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
