Plan 720098DA

Vaulted Timber Carport with Open Sides and Gable Roof

Name: Plan 720098DA: Vaulted Timber Carport with Open Sides and Gable Roof
Brand: Architectural Designs
SKU: 720098DA
Price: 320.0 USD
Availability: InStock

Heated S.F.

Beds

Baths

Stories

Cars

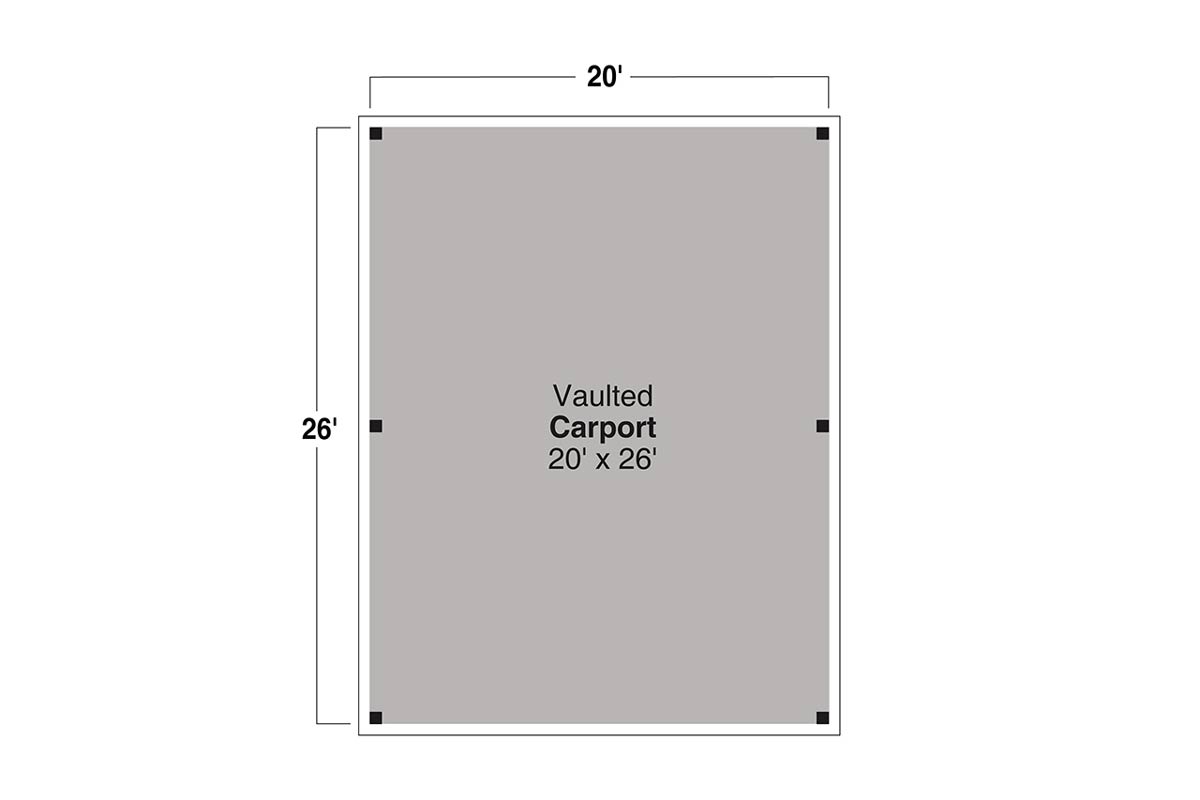

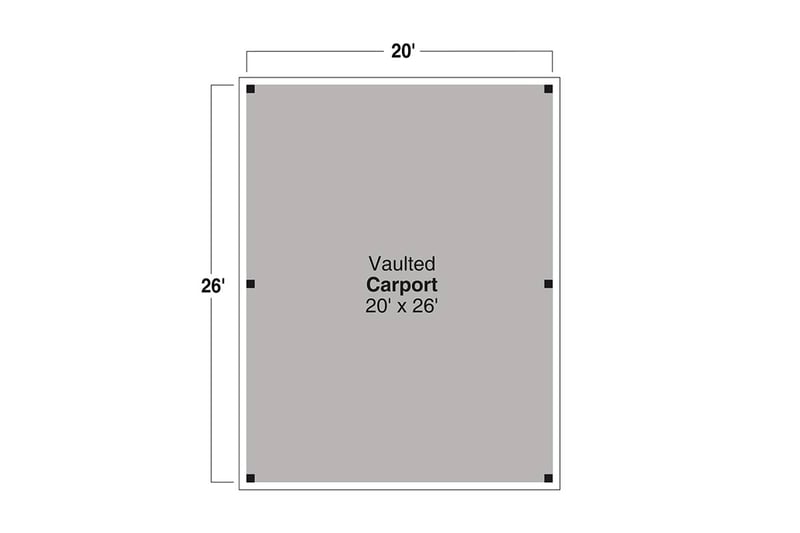

Floor Plan

Main Level

Plan Details

This rustic open-sided carport offers 520 square feet of covered space with a 20' x 26' footprint and classic vaulted gable roof construction. It provides practical vehicle protection while blending into natural surroundings with its exposed timber frame and Craftsman-inspired detailing.
A simple drive-in layout allows direct access from any side, with no enclosed walls to obstruct movement or visibility. Exposed rafters and bracing enhance the architectural character while keeping the structure visually light.
The design’s clean symmetry and open-air flow allow it to double as a shaded shelter for gatherings, workspaces, or equipment storage in addition to vehicle protection.
Featuring vaulted ceilings and deep eaves, the carport stays cool in the summer while offering rain and snow protection year-round. The wood structure visually complements wooded, rural, or rustic properties and can easily pair with a matching main home.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

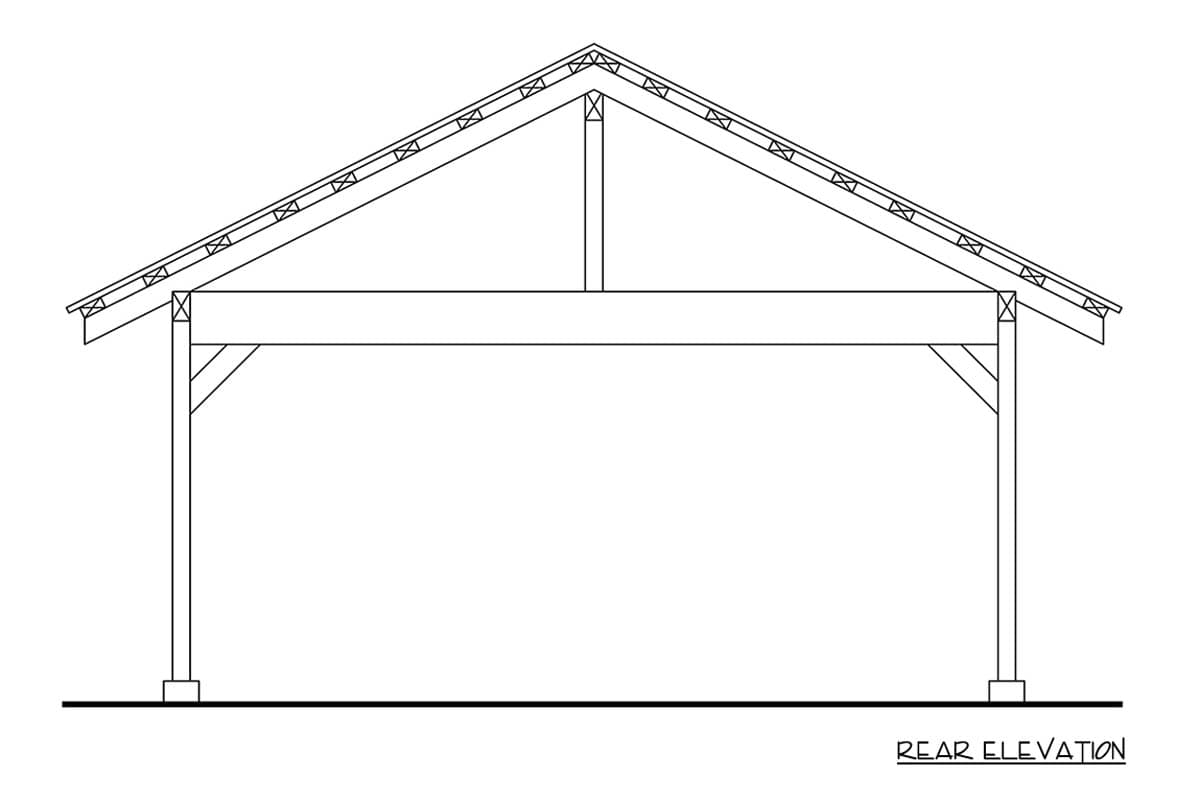

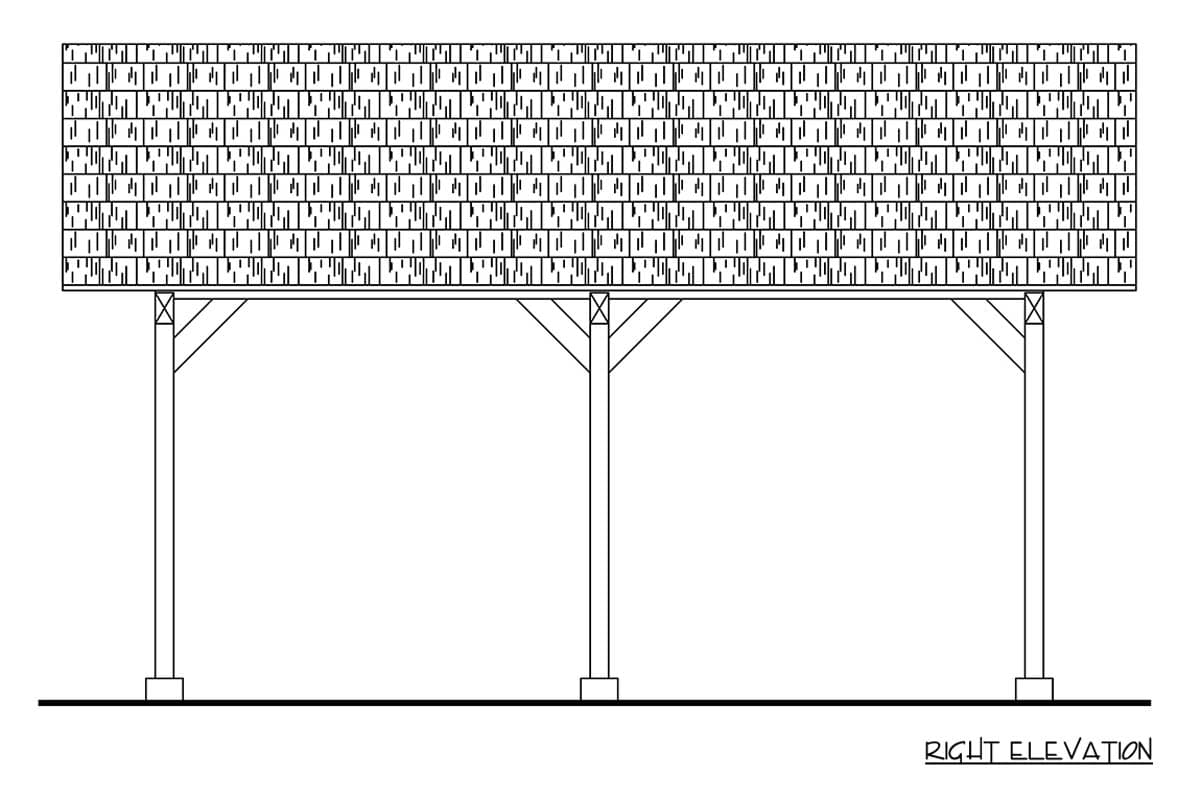

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Cost to Build Report

Still deciding? Calculate the cost to build this house in your area.

Customize This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Cost to Furnish Report

Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

Foundation Type

Standard Foundations

Slab

Exterior Walls

6x6 Posts

Dimensions

Width

20' 0"

Depth

26' 0"

Max Ridge Height

15' 5"

Garage

Type

Carport

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Rustic
