Versatile 3 to 5 Bedroom Craftsman Home Plan with Study and 3-Car Garage

Plan 360018DK

  • 2,906

    Heated s.f.

  • 3-5

    Beds

  • 4.5 - 5.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This welcoming and versatile Craftsman home plan features a stone and clapboard exterior, recessed front entry with columns, and 3-car garage.
  • An open-concept main floor features a spacious great room and striking octagonal morning and dining rooms, all with elegant tray ceilings.
  • A thoughtfully designed kitchen boasts an island, separate breakfast bar, and generously sized walk-in pantry.
  • The tucked-away study or fourth bedroom offers privacy and versatility.
  • An inviting master suite with a tray ceiling offers twin walk-in closets and a 5-piece bath with a linen closet and walk-in shower.
  • Optional second-level bonus spaces enable you to truly make this home your own.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

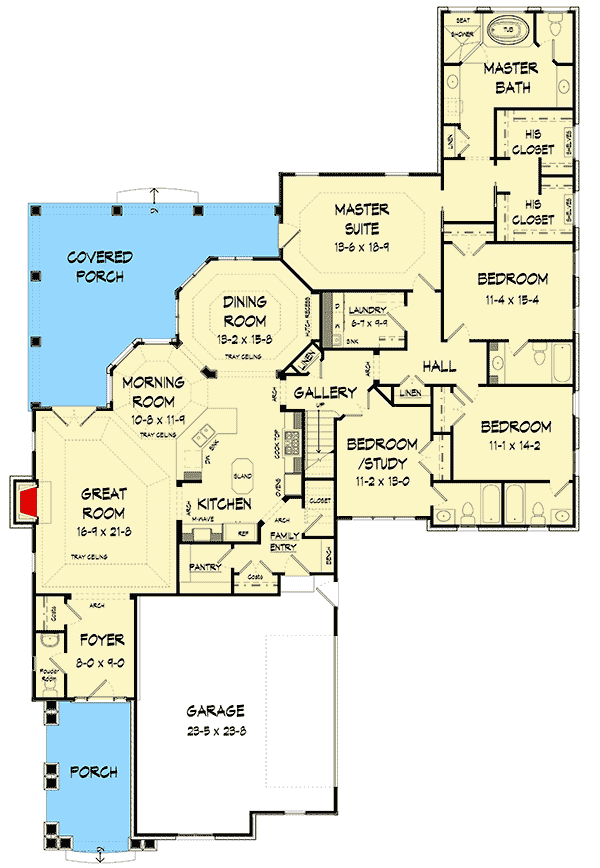

Versatile 3 to 5 Bedroom Craftsman Home Plan with Study and 3-Car Garage - 360018DK floor plan - Main Level

Second Floor (Landing) with Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

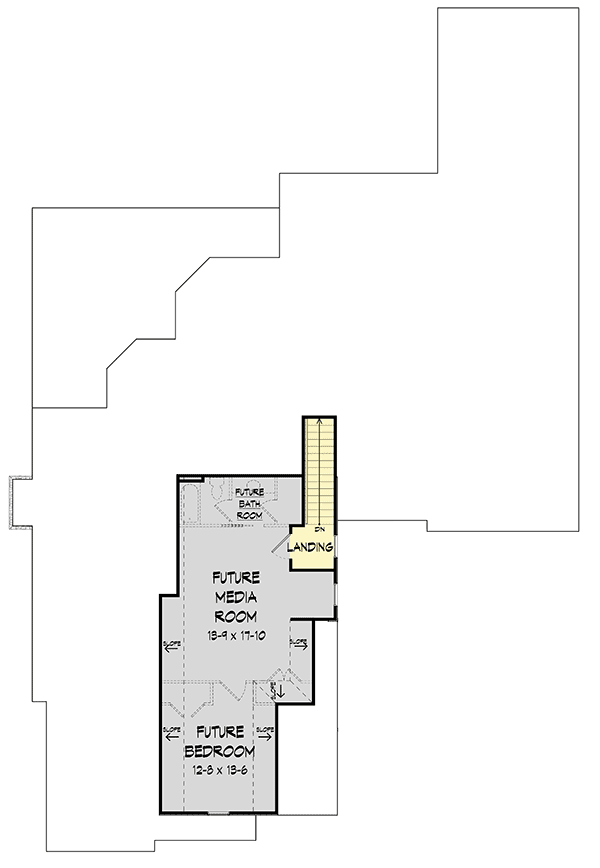

Versatile 3 to 5 Bedroom Craftsman Home Plan with Study and 3-Car Garage - 360018DK floor plan - Second Floor (Landing) with Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,906 sq. ft.
  • 1st Floor: 2,878 sq. ft.
  • 2nd Floor: 28 sq. ft.
  • Porch, Rear: 434 sq. ft.
  • Porch, Front: 186 sq. ft.
  • Bonus: 652 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 6"
  • Depth: 100' 2"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 674 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Versatile 3 to 5 Bedroom Craftsman Home Plan with Study and 3-Car Garage

  • 2,906

    Heated s.f.

  • 3-5

    Beds

  • 4.5 - 5.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,300
  • PDF Light $1,800
  • CAD + PDF - Single-Build $2,100
  • View all purchase option online

About This Plan

  • This welcoming and versatile Craftsman home plan features a stone and clapboard exterior, recessed front entry with columns, and 3-car garage.
  • An open-concept main floor features a spacious great room and striking octagonal morning and dining rooms, all with elegant tray ceilings.
  • A thoughtfully designed kitchen boasts an island, separate breakfast bar, and generously sized walk-in pantry.
  • The tucked-away study or fourth bedroom offers privacy and versatility.
  • An inviting master suite with a tray ceiling offers twin walk-in closets and a 5-piece bath with a linen closet and walk-in shower.
  • Optional second-level bonus spaces enable you to truly make this home your own.

Floor Plans

  • Main Level

  • Second Floor (Landing) with Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,906 sq. ft.
  • 1st Floor: 2,878 sq. ft.
  • 2nd Floor: 28 sq. ft.
  • Porch, Rear: 434 sq. ft.
  • Porch, Front: 186 sq. ft.
  • Bonus: 652 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 6"
  • Depth: 100' 2"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 674 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
Plan 360018DK
