Versatile Modern Home Plan with Bonus Space and Optional Lower Level

Plan 290098IY

  • 2,820

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Modern meets traditional in this striking 3-6 bedroom home plan, which features a board-and-batten exterior with stone accents and a convenient 3-car garage.
  • Through the foyer, a spacious great room with a fireplace awaits.
  • Open to the great room and dining areas, the well-appointed kitchen boasts an oversized island with seating for casual meals and a large walk-in pantry.
  • The master suite offers backyard views, a 5-piece bath with a walk-in shower, and a large walk-in closet.
  • Two main-floor bedrooms share a full bath.
  • An upper-floor bonus room is filled with possibilities.
  • Enjoy the versatility of the optional lower-level plan, which features a spacious walk-out rec room, living area with kitchen, tucked-away media room, two additional bedrooms, and a full bath.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

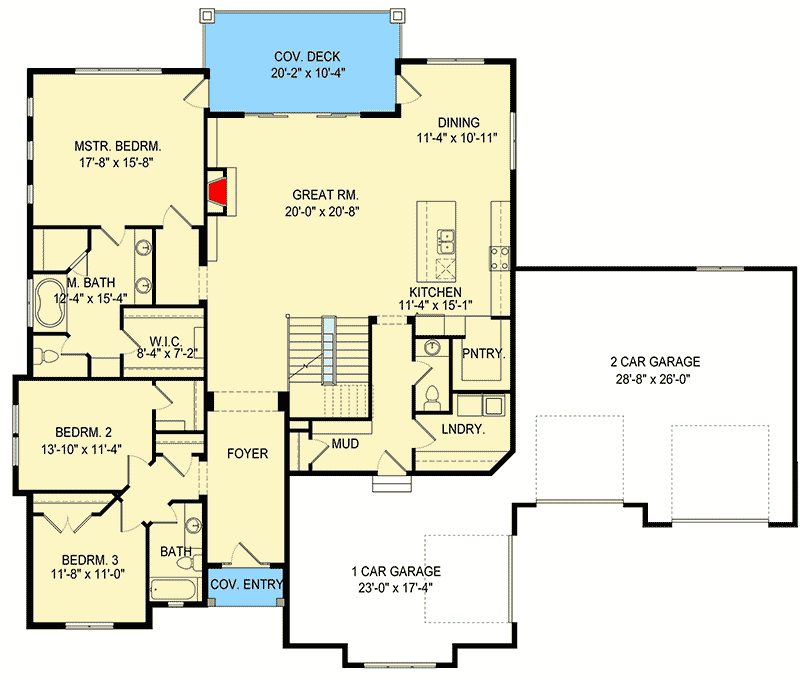

Versatile Modern Home Plan with Bonus Space and Optional Lower Level - 290098IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Versatile Modern Home Plan with Bonus Space and Optional Lower Level - 290098IY floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

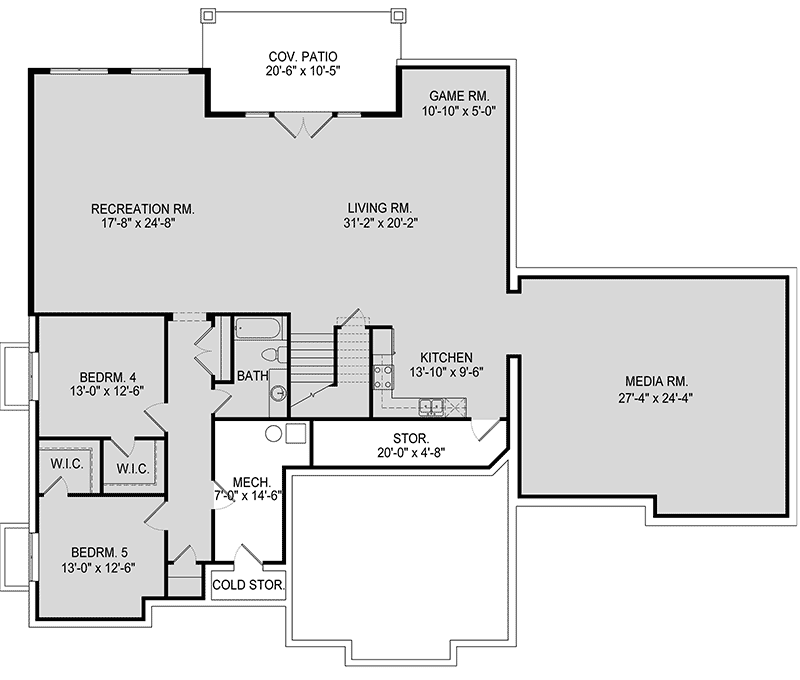

Versatile Modern Home Plan with Bonus Space and Optional Lower Level - 290098IY floor plan - Optional Lower Level

Versatile Modern Home Plan with Bonus Space and Optional Lower Level

  • 2,820

    Heated s.f.

  • 3-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,820 sq. ft.
  • 1st Floor: 2,404 sq. ft.
  • 2nd Floor: 416 sq. ft.

Dimensions

  • Width: 80' 10"
  • Depth: 67' 8"
  • Max ridge height: 27' 8"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1189 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0" Second Floor / 9' 0"
