Plan 9320EL Victorian Style Home Plan

4,934 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Victorian Style Home Plan

Plan 9320EL

  • 4,934

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Imagine relaxing in the downstairs library, or in the Roman-style bath in the downstairs master suite.
  • Or try to imagine family mealtime in the gourmet kitchen, or family movie night in the large upstairs media room.
  • Other popular features in this home include a wine cellar, formal dining space, a keeping room and an open terrace in back.
  • There are two separate garages, a single-car space and one with 2-car dimensions.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

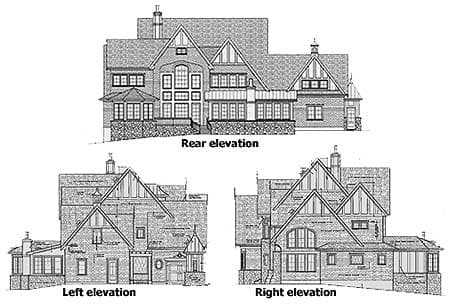

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

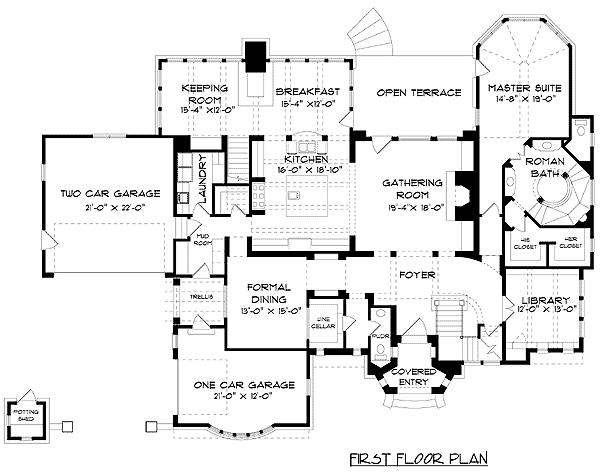

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Victorian Style Home Plan - 9320EL floor plan - Main Level

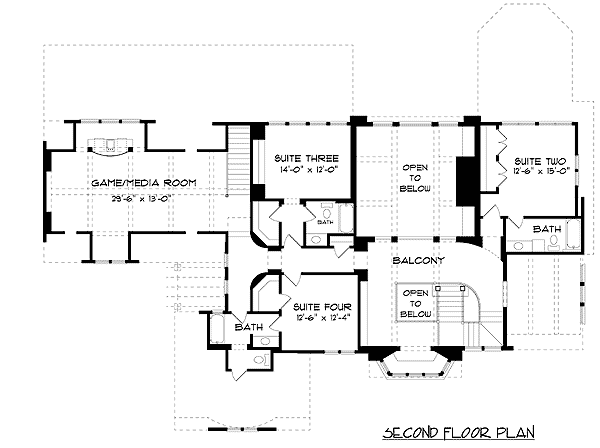

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Victorian Style Home Plan - 9320EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,934 sq. ft.
  • 1st Floor: 2,948 sq. ft.
  • 2nd Floor: 1,986 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 89' 7"
  • Depth: 69' 3"
  • Max ridge height: 40' 6"

Garage

  • Type: Attached
  • Area: 714 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Victorian Style Home Plan

  • 4,934

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD+PDF - Single-Build $3,280
  • PDF - Unlimited Build $3,345
  • CAD - Unlimited Build $4,130
  • View all purchase option online

About This Plan

  • Imagine relaxing in the downstairs library, or in the Roman-style bath in the downstairs master suite.
  • Or try to imagine family mealtime in the gourmet kitchen, or family movie night in the large upstairs media room.
  • Other popular features in this home include a wine cellar, formal dining space, a keeping room and an open terrace in back.
  • There are two separate garages, a single-car space and one with 2-car dimensions.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,934 sq. ft.
  • 1st Floor: 2,948 sq. ft.
  • 2nd Floor: 1,986 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 89' 7"
  • Depth: 69' 3"
  • Max ridge height: 40' 6"

Garage

  • Type: Attached
  • Area: 714 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
Plan 9320EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9320EL
|
Need Help? 800-854-7852
|
Plan 9320EL
