Plan 69091AM

View-Grabbing Narrow Lot Design

Heated S.F.
2,044
Beds
3
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 69091AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69091AM

M-F 9am-5pm EST |

1-203-761-8500

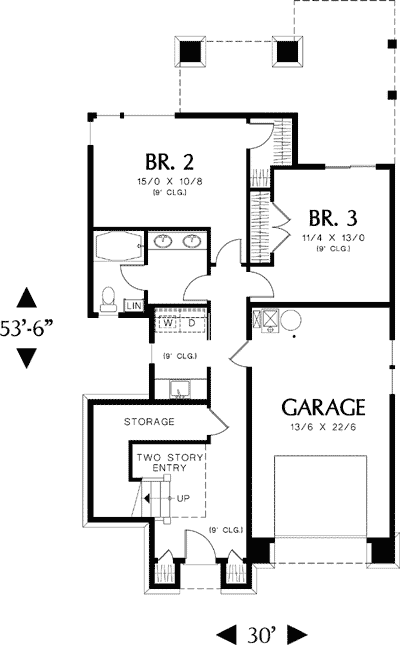

Main Level

Plan 69091AM: View-Grabbing Narrow Lot Design - Floor Plan - Main Level - Cottage, Shingle, Vacation

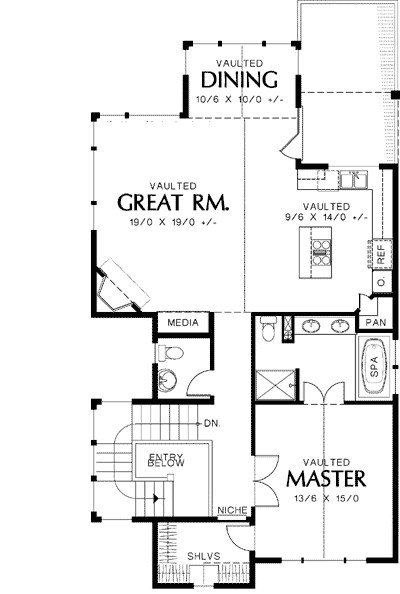

2nd Floor

Plan 69091AM: View-Grabbing Narrow Lot Design - Floor Plan - 2nd Floor - Cottage, Shingle, Vacation

Plan Details

  • At just 30 feet wide, this view-grabbing home plan includes a single-car garage, three bedrooms, and a reverse two-story design that seizes the view.
  • The main level of the home is primarily utilitarian. The garage connects to a hallway that leads to the laundry room, and to a pair of secondary bedrooms and a full bath. The hallway also directs traffic to the entry hall where a wraparound staircase ascends to the upper level.
  • The stair tower is filled with light from windows that wrap around its midsection. The rear of the plan contains the living spaces of the great room, kitchen, dining room, and a deck. Vaulted ceilings and abundant windows add to the spacious feel of the rooms. The rear banks of windows direct the focus toward the view and amenities add comfort.
  • The great room features a fireplace while the kitchen offers an island with a cooktop and a corner pantry. A door in the adjacent dining room links the interior spaces to the deck.
  • Also located on the upper level, the master suite contains a walk-in closet with built-ins, a vaulted ceiling, a spa tub, and a dual-sink vanity.

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,044 sq. ft.

1st Floor

866 sq. ft.

2nd Floor

1,178 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

54' 0"

Max Ridge Height

30' 0"

Garage

Type

Drive Under

Area

322 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Cottage

Shingle

Vacation

Special Features

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
