Plan 72053DA Volume and Light

2,272 3 2.5 1 3
Print
Compare
...

Volume and Light

Plan 72053DA

  • 2,272

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

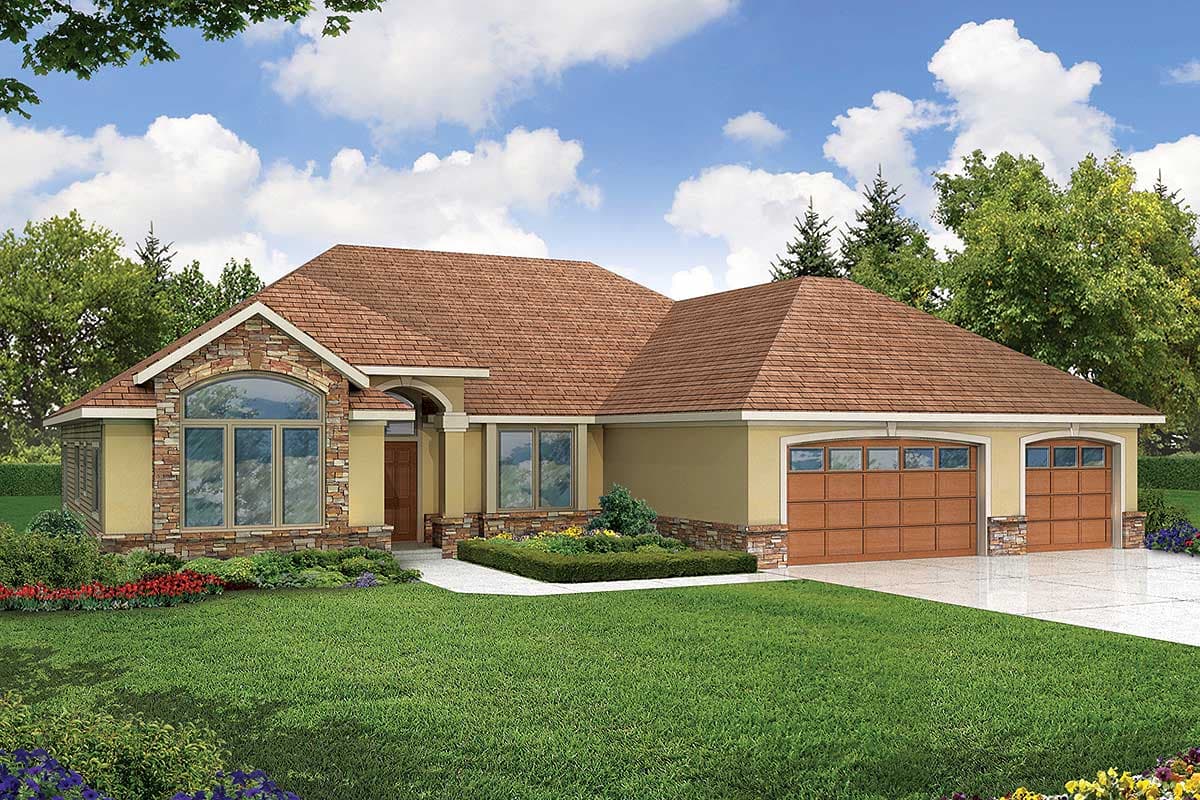

  • Traditional in style, this design gains appeal from the large arched window that faces the street.
  • The privately situated master suite has direct access to the patio that runs the width of the house in back. In the master suite, there are two walk-in closets, garden tub, separate shower and twin sinks.
  • On the other side of the house, the other full bath serves the secondary bedrooms.
  • The open living area is vaulted and has two skylights, adding volume and light. A corner fireplace bordered by built-ins warms the entire living area. The vault rises to 16'3".
  • Off the entry, a study or media room completes the plan.
  • The covered section of the rear patio is 38' wide and 6' deep.
  • For the alternate basement foundation, the garage is pulled forward 2', increasing the overall depth of the home to 64'. The utility room and toilet closet of the master bath are shortened to accommodate the stairs. The designer also pulled some of the space for the stairs from the garage making the garage depth with the basement stairs 24'-2".

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

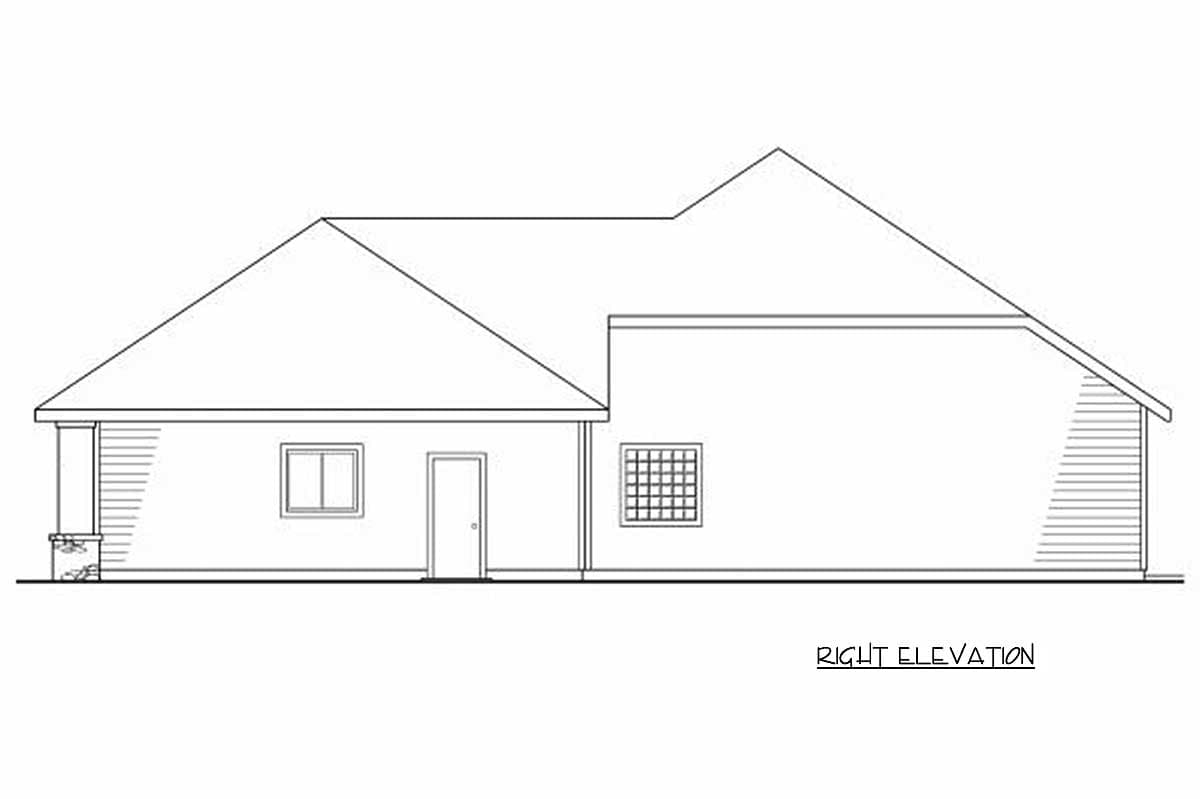

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

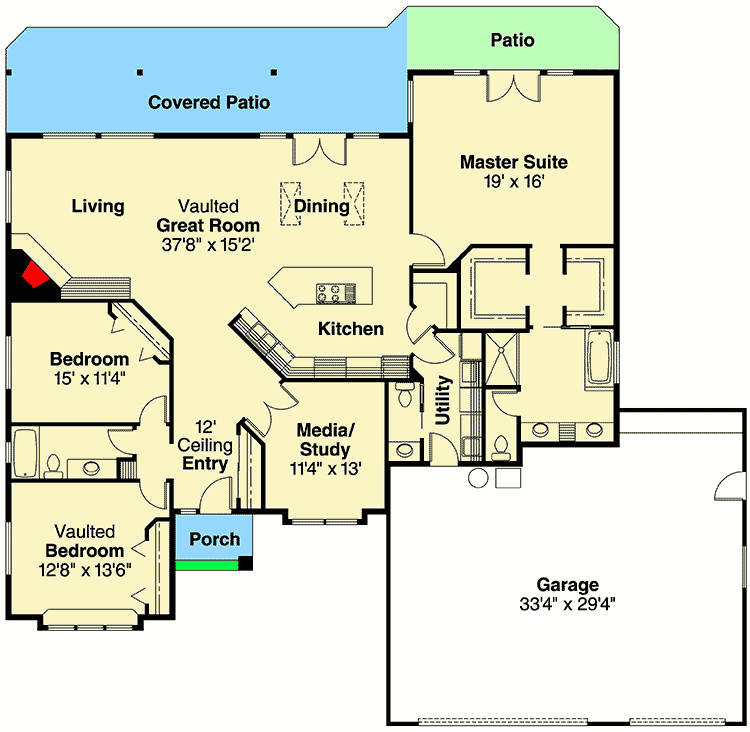

Volume and Light - 72053DA floor plan - Main Level

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Volume and Light - 72053DA floor plan - Optional

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,272 sq. ft.
  • 1st Floor: 2,272 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 62' 0"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 914 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features



Volume and Light

  • 2,272

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,085
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • Traditional in style, this design gains appeal from the large arched window that faces the street.
  • The privately situated master suite has direct access to the patio that runs the width of the house in back. In the master suite, there are two walk-in closets, garden tub, separate shower and twin sinks.
  • On the other side of the house, the other full bath serves the secondary bedrooms.
  • The open living area is vaulted and has two skylights, adding volume and light. A corner fireplace bordered by built-ins warms the entire living area. The vault rises to 16'3".
  • Off the entry, a study or media room completes the plan.
  • The covered section of the rear patio is 38' wide and 6' deep.
  • For the alternate basement foundation, the garage is pulled forward 2', increasing the overall depth of the home to 64'. The utility room and toilet closet of the master bath are shortened to accommodate the stairs. The designer also pulled some of the space for the stairs from the garage making the garage depth with the basement stairs 24'-2".

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,272 sq. ft.
  • 1st Floor: 2,272 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 62' 0"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 914 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Plan 72053DA
View this and more for this plan by visiting www.architechtecturaldesigns.com/72053DA
|
Need Help? 800-854-7852
|
Plan 72053DA
