Plan 89798AH

Wall of Windows

Heated S.F.
2,032
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 89798AH

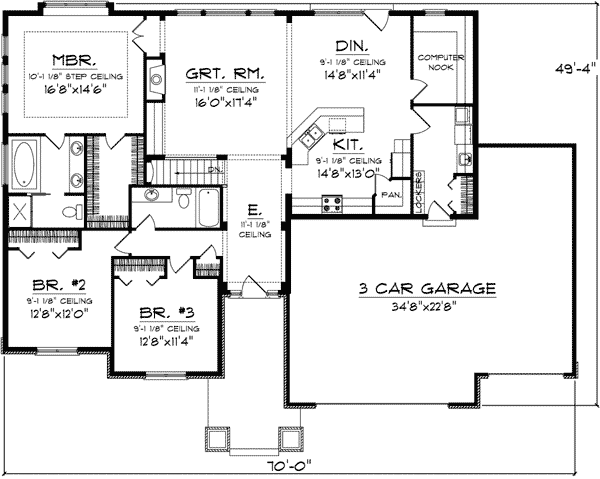

Main Level
Main Level

Plan 89798AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 89798AH: Wall of Windows - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • Sturdy columns and a covered porch greet you as you enter this Craftsman style home of just over 2,000 square feet.

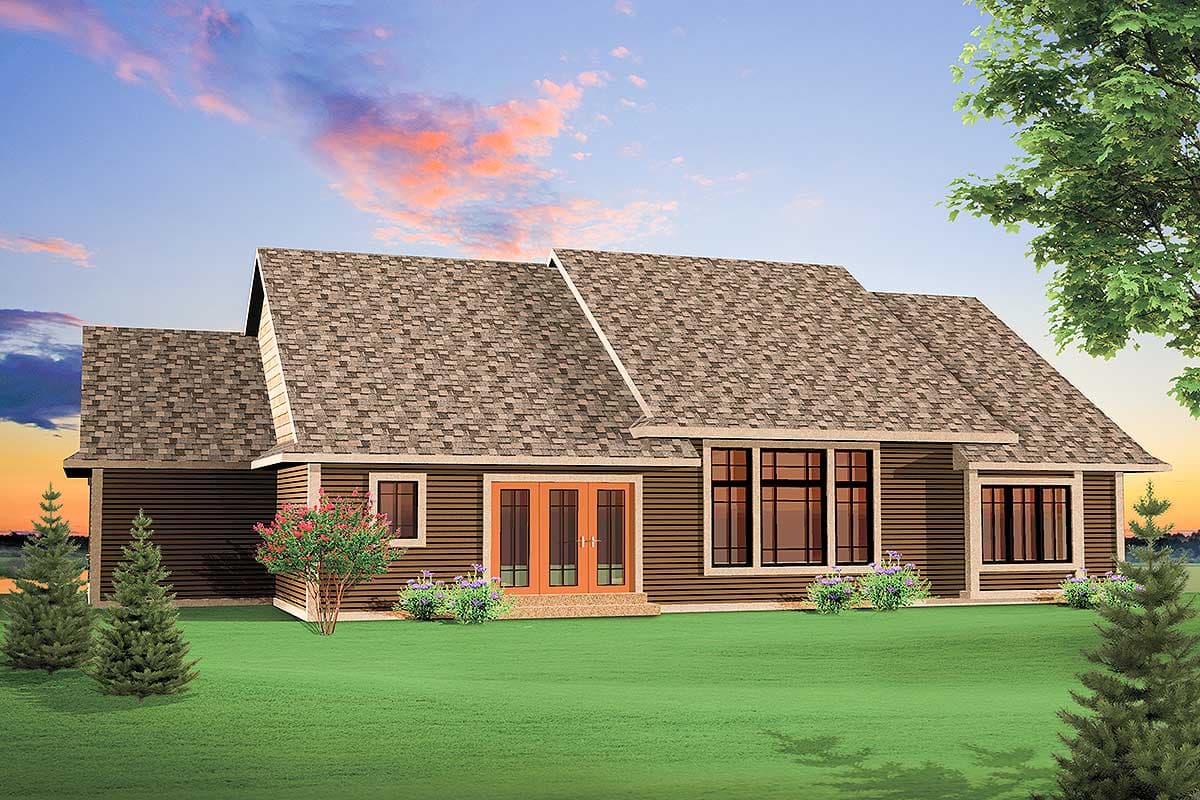

  • As you enter the home, you'll be drawn to the main living area by the abundant natural light flowing in through the windows that are found along the entire rear of the home.
  • The kitchen works with the dining room and great room to create a living area that's also big enough to entertain large groups.
  • The bedrooms are found to the left of the entry where the master suite pampers with a step ceiling, large walk-in closet and private bath with Jacuzzi tub.
  • Two additional bedrooms lie to the front of the home with direct access to the full bath just off the entry.
  • A three-stall garage with extra storage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,032 sq. ft.

1st Floor

2,032 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

49' 4"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

876 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Walk-in Pantry
