Plan 59202ND

Welcoming Stone Steps

Heated S.F.
2,610
Beds
2
Baths
2.5
Stories
1

Floor Plan

Plan 59202ND

Main Level
Main Level
Second Level
Second Level

Plan 59202ND

M-F 9am-5pm EST |

1-203-761-8500

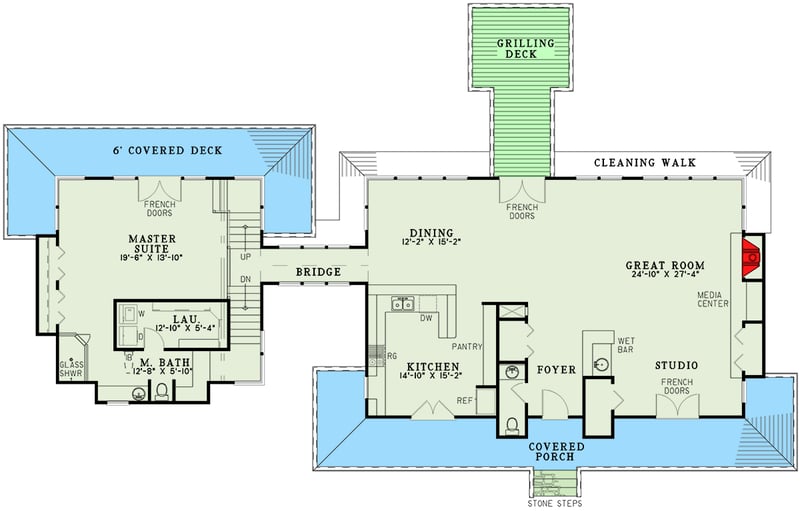

Main Level

Plan 59202ND: Welcoming Stone Steps - Floor Plan - Main Level - Mountain, Vacation

Second Level

Plan 59202ND: Welcoming Stone Steps - Floor Plan - Second Level - Mountain, Vacation

Plan Details

  • Stone steps and a covered porch welcome you to this tree house style home plan.

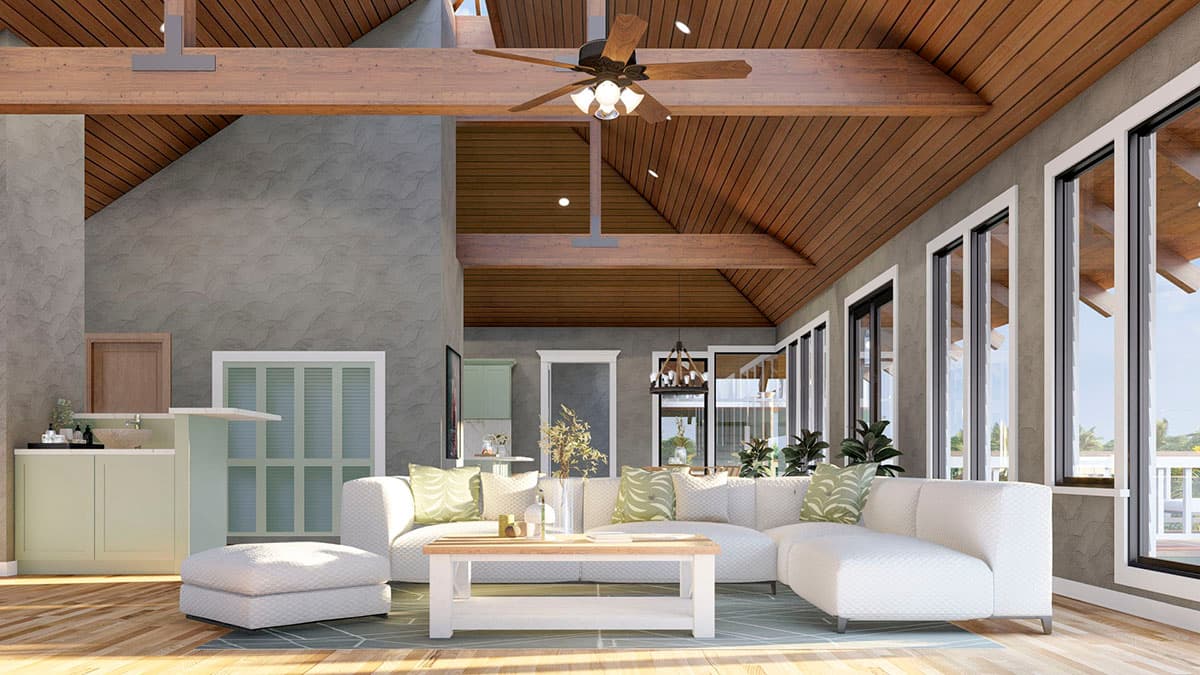

  • French doors open to the studio with a wet bar providing relaxation while enjoying the great room fireplace.
  • Your guests will enjoy the openness of the dining room and kitchen created by the vaulted ceilings above.
  • A peninsula grilling deck allows you to prepare your meals with ease.
  • Separated from the living areas by a bridge, your master suite includes corner glass shower and walk-in closet with a convenient laundry area.
  • The lower level has an identical bedroom suite with French door access to the rear deck.
  • The lower floor has its own bedroom with french doors leading to the rear deck.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,610 sq. ft.

Lower Level

634 sq. ft.

1st Floor

1,976 sq. ft.

Porch, Front

213 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

91' 10"

Depth

54' 0"

Max Ridge Height

30' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Mountain

Vacation

Special Features

Master Suite - 1st Floor

Wet Bar

Wraparound Porch

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,610 sq. ft.

Lower Level

634 sq. ft.

1st Floor

1,976 sq. ft.

Porch, Front

213 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Daylight, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

91' 10"

Depth

54' 0"

Max Ridge Height

30' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Mountain

Vacation

Special Features

Master Suite - 1st Floor

Wet Bar

Wraparound Porch

Plan Collections

Sloping Lot
