Well-Appointed Craftsman House Plan - 2004 Sq Ft
Heated S.F.
2,004
Beds
3
Baths
2.5 - 3.5
Stories
1-2
Cars
2

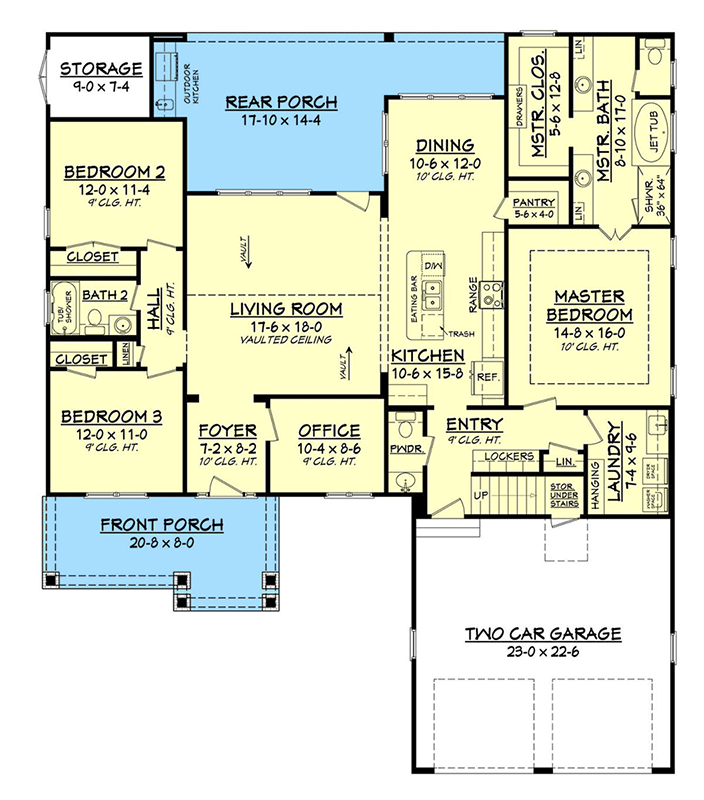

Floor Plan

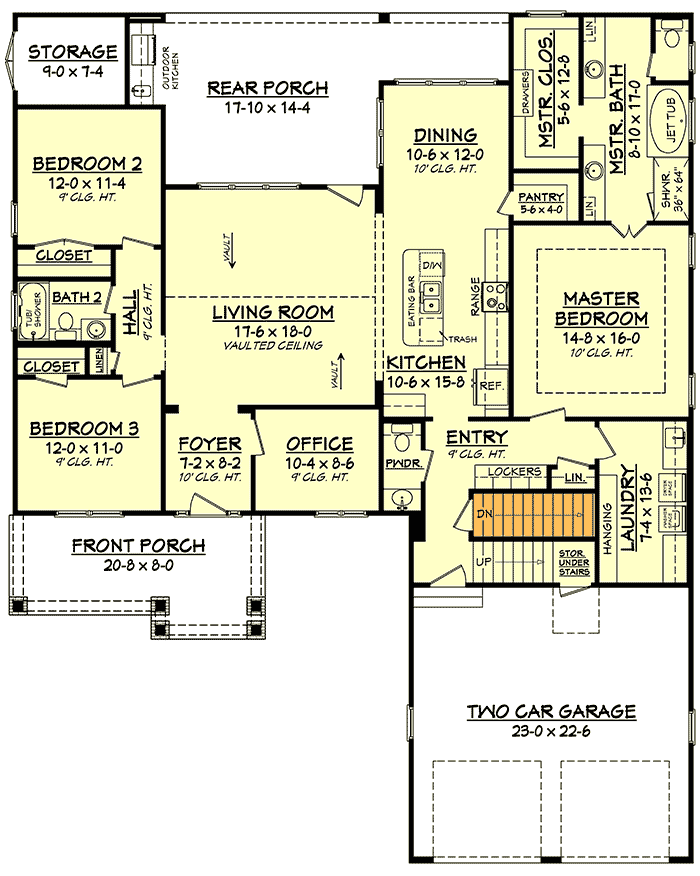

Basement Option
Reverse Floor Plan
Well-Appointed Craftsman House Plan - 2004 Sq Ft - 51738HZ floor plan - Basement Option

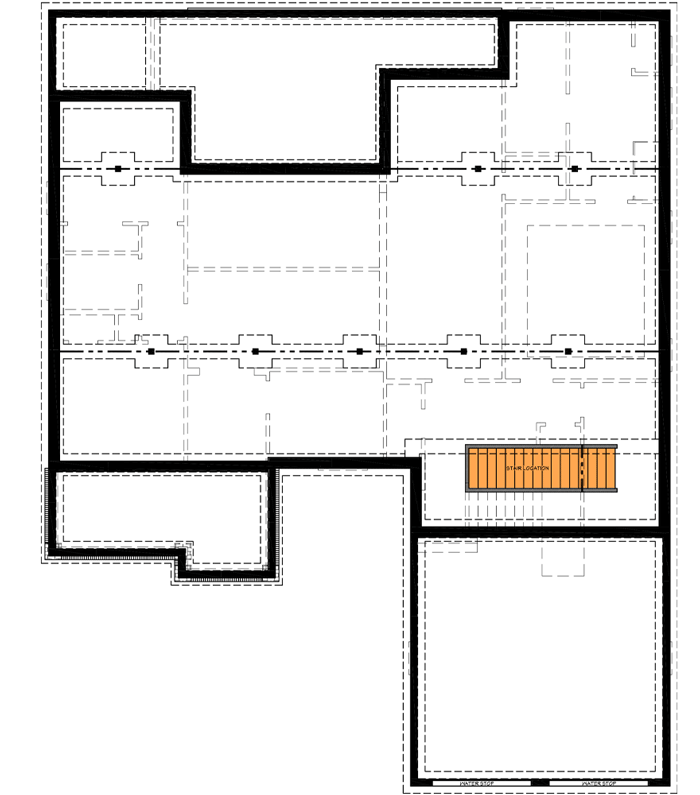

Basement Layout
Reverse Floor Plan
Well-Appointed Craftsman House Plan - 2004 Sq Ft - 51738HZ floor plan - Basement Layout

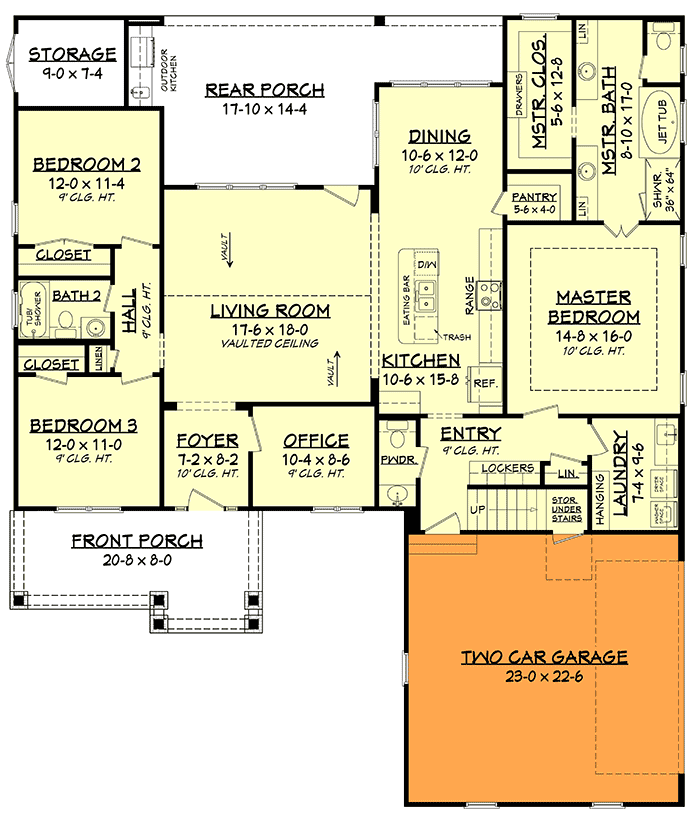

2-Car Side Garage Option
Reverse Floor Plan
Well-Appointed Craftsman House Plan - 2004 Sq Ft - 51738HZ floor plan - 2-Car Side Garage Option
Plan Details
  • This well-appointed Craftsman style house plan offers many great features including a bonus room over the two car garage.
  • Three well-sized bedrooms are offered within the popular split bedroom design.
  • The large kitchen has abundant counter space along with a raised eating bar and walk-in pantry.
  • Luxurious and spacious, the master suite features a bathroom with custom shower, jet tub, dual vanities, and expansive closet space.

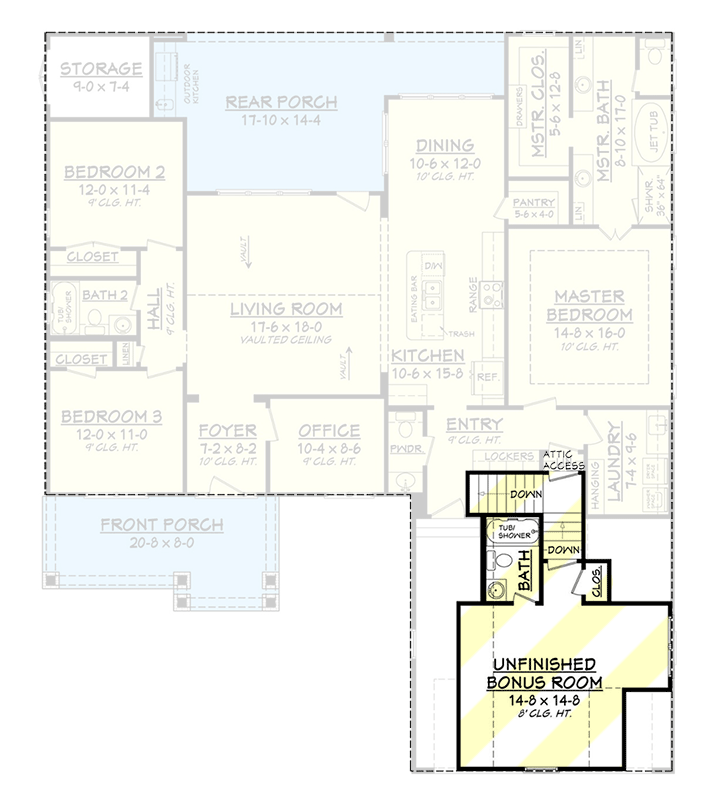

  • A bonus room is also provided upstairs, and could be anything from an extra bedroom to a media space.
  • There is a 2-car side garage option making this flexible for any kind of lot.
What's Included
This plan set has the following 8 sheets:
  1. Cover sheet with sheet index and rendering
  2. Foundation plan
  3. Floor plans

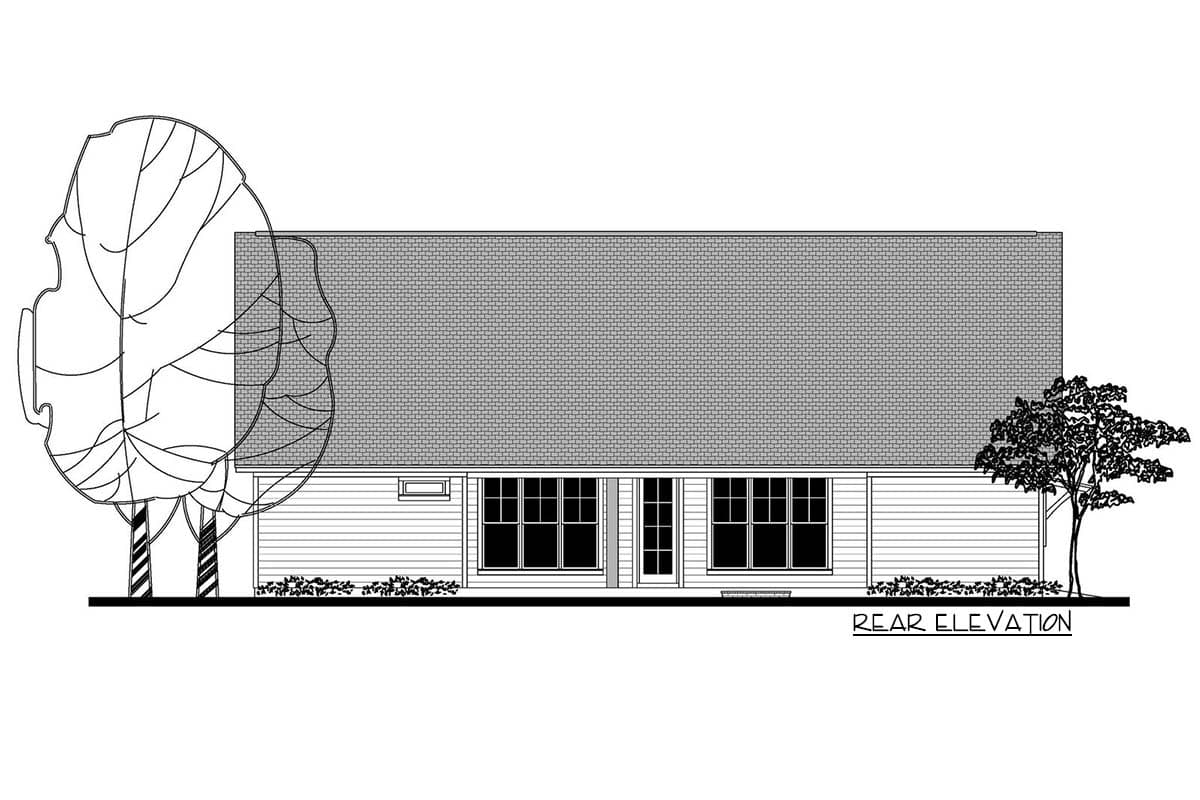

  4. Front and Rear views

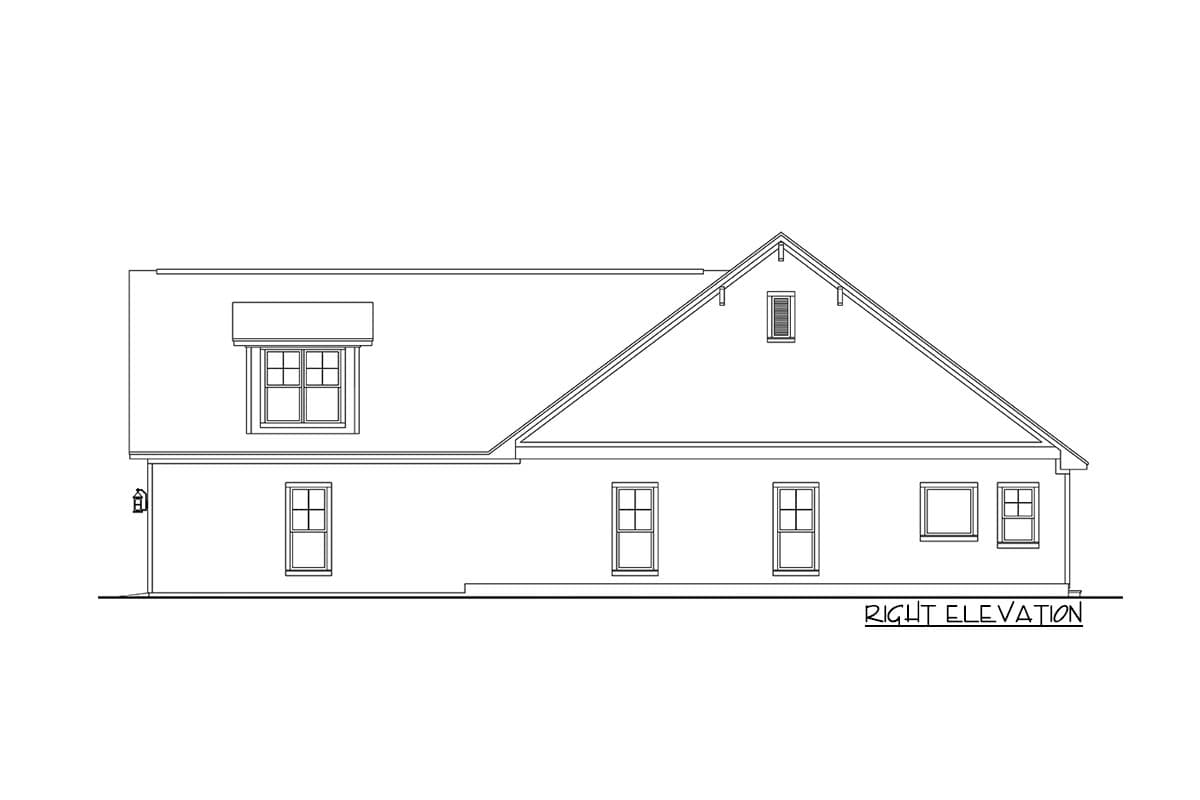

  5. Right and left views
  6. Roof plan
  7. Cross section and kitchen cabinet views
  8. Electrical plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Well-Appointed Craftsman House Plan - 2004 Sq Ft

  • 2,004

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

  • Basement Option

  • Basement Layout

  • 2-Car Side Garage Option

Plan Details

Square Footage Breakdown

  • Total: 2,004 sq. ft.
  • 1st Floor: 2,004 sq. ft.

Dimensions

  • Width: 56' 8"
  • Depth: 66' 10"
  • Max ridge height: 25' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
