Well-Designed Craftsman House Plan

Plan 290052IY

  • 4,669

    Heated s.f.

  • 5-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A graceful eyebrow dormer sits on the roof over Bedroom 2 of this attractive Craftsman house plan with an optional finished lower level.
  • On the practical side, the home has both a mud room and a huge utility room with an island and lots of windows.
  • Amenities include a quiet study, built-ins and a gorgeous, spacious open floor plan.
  • The first floor master suite is top-of-the-line with its giant walk-in closet and deluxe private bathroom with a big, stand-alone soaking tub.
  • Most of the large bedrooms on the second floor boast vaulted ceilings and all have walk-in closets. The second floor laundry room is an added perk.
  • An optional finished lower level gives you a second kitchen, a dedicated exercise room, a fabulous media room and a 6th bedroom.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

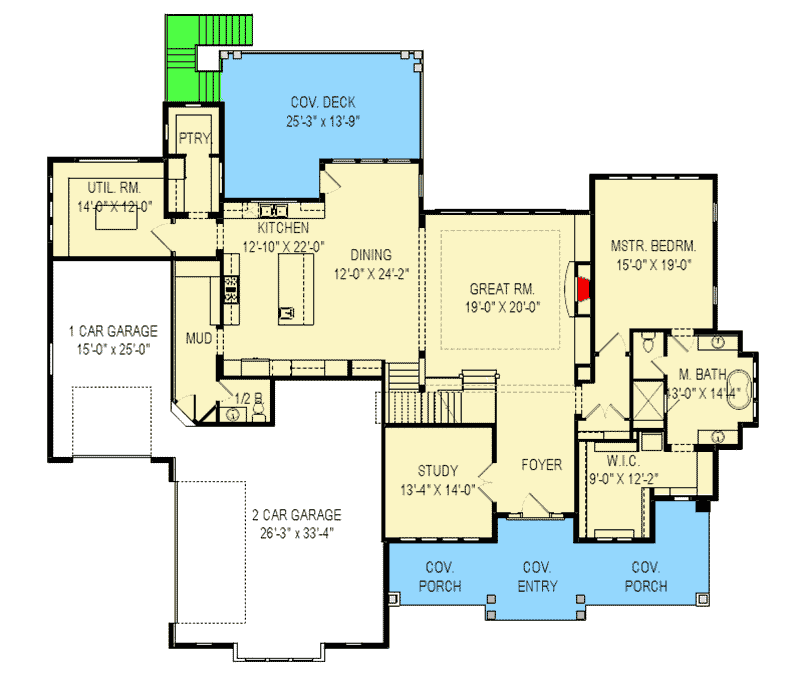

Well-Designed Craftsman House Plan - 290052IY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

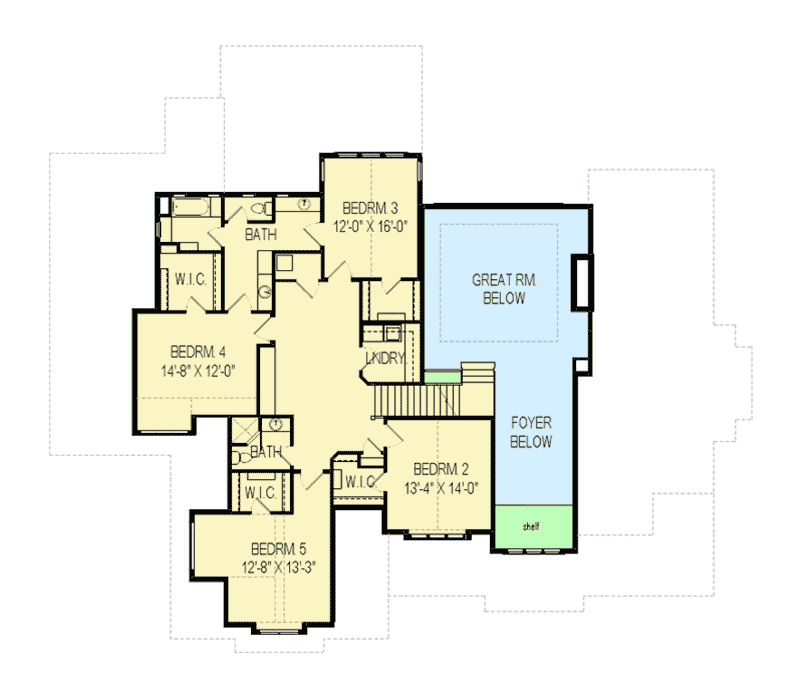

Well-Designed Craftsman House Plan - 290052IY floor plan - 2nd Floor

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

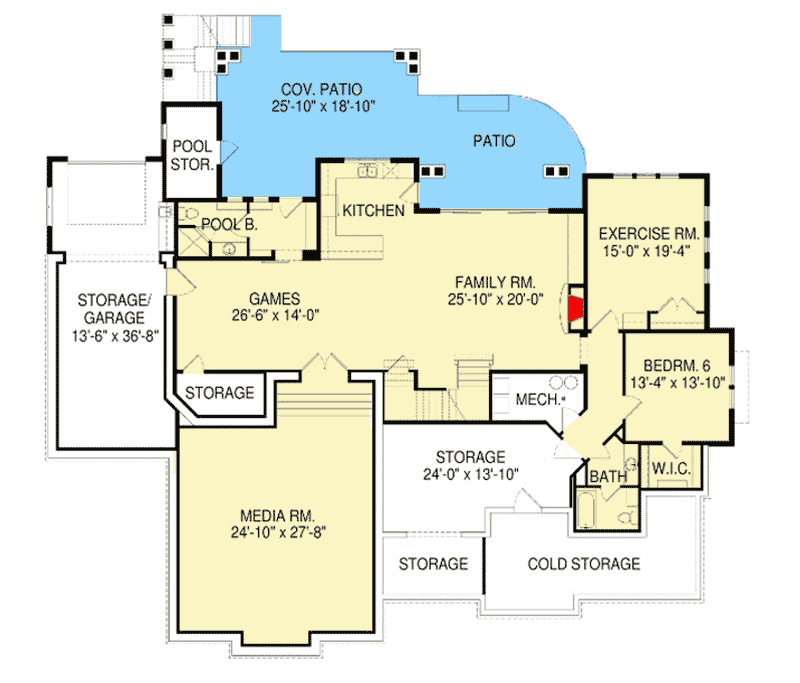

Well-Designed Craftsman House Plan - 290052IY floor plan - Optional Lower Level

Well-Designed Craftsman House Plan

  • 4,669

    Heated s.f.

  • 5-6

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,669 sq. ft.
  • 1st Floor: 2,885 sq. ft.
  • 2nd Floor: 1,784 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 82' 1"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1265 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
