Work-from-home Cottage with Cathedral Ceiling

Plan 62309DJ

  • 192

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • This work-from-home outbuilding has a simple cottage exterior and is a great solution for those looking to separate their home and work lives.
  • 9' ceiling height paired with a cathedral ceiling will make you feel like you're in an executive office.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

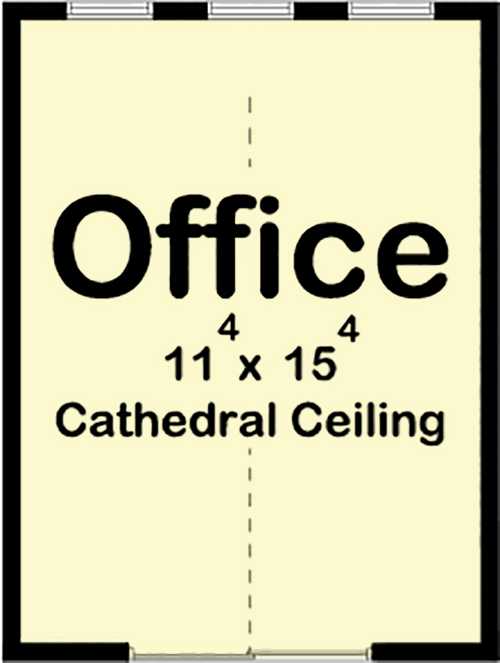

Work-from-home Cottage with Cathedral Ceiling - 62309DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 192 sq. ft.
  • 1st Floor: 192 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 12' 0"
  • Depth: 16' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Plan Collections

Work-from-home Cottage with Cathedral Ceiling

  • 192

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $300
  • 5 Sets + PDF $550
  • PDF - Unlimited Build $800
  • CAD + PDF - Single-Build $800
  • CAD Unlimited + PDF $1,300
  • View all purchase option online

About This Plan

  • This work-from-home outbuilding has a simple cottage exterior and is a great solution for those looking to separate their home and work lives.
  • 9' ceiling height paired with a cathedral ceiling will make you feel like you're in an executive office.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 192 sq. ft.
  • 1st Floor: 192 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 12' 0"
  • Depth: 16' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
