Plan 290029IY
Arts and Crafts Bungalow with Optional Lower Level
Heated S.F.
2,658
Beds
4-6
Baths
2 - 3
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

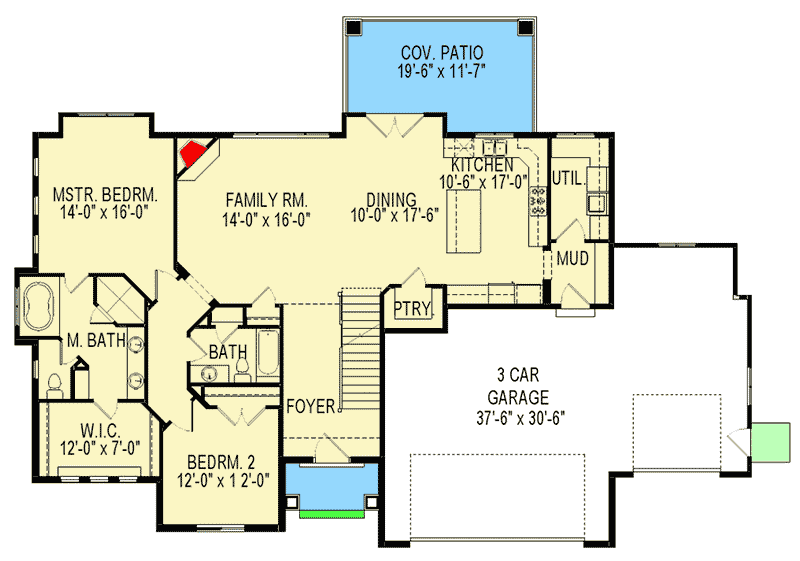

Arts and Crafts Bungalow with Optional Lower Level - 290029IY floor plan - Main Level
2nd Floor
Reverse Floor Plan

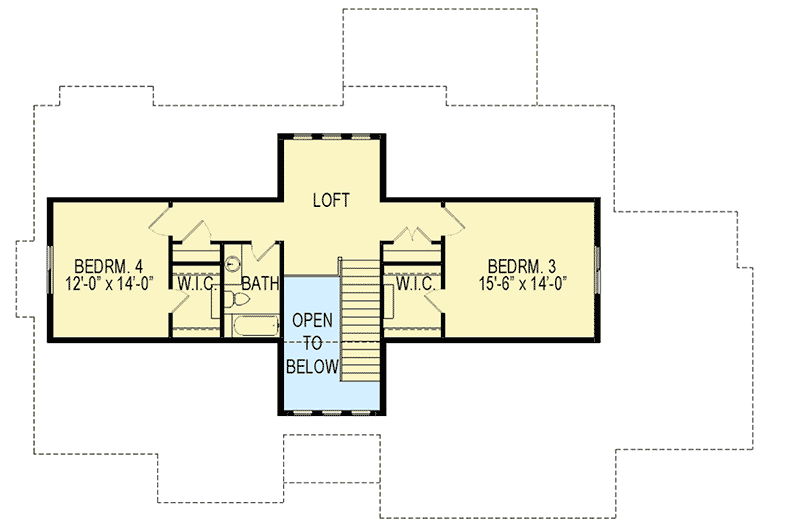

Arts and Crafts Bungalow with Optional Lower Level - 290029IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

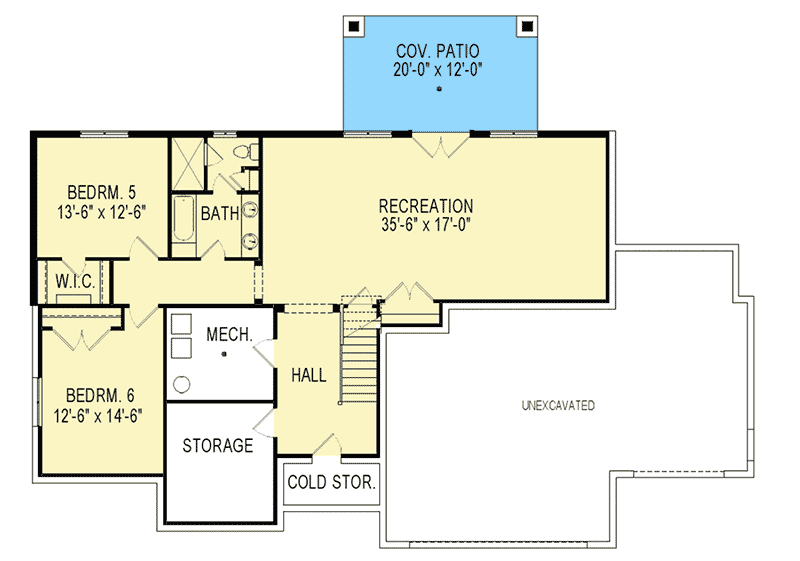

Arts and Crafts Bungalow with Optional Lower Level - 290029IY floor plan - Optional Lower Level
Plan Details
  • Craftsman good looks combine with room for expansion in this handsome Craftsman house plan.
  • There are two bedrooms on the first floor, two on the second floor and the option for two more bedrooms if you finish the lower level.
  • A big covered patio and a three car garage are ideal for large families.
  • Most bedrooms in the house get walk-in closets and there's a walk-in pantry too.
  • Loft space on the second floor has a open rail that looks down into the foyer below.
  • Related Plans: This house plan comes in alternate sizes including 290030IY (2,712 sq. ft.) and 290045IY (2,922 sq. ft.).
What's Included
This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
