Plan 33200ZRX

2-Story House Plan With Open Great Room

Heated S.F.
3,303
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 33200ZRX

Main Level
Main Level
2nd Floor
2nd Floor

Plan 33200ZRX

M-F 9am-5pm EST |

1-203-761-8500

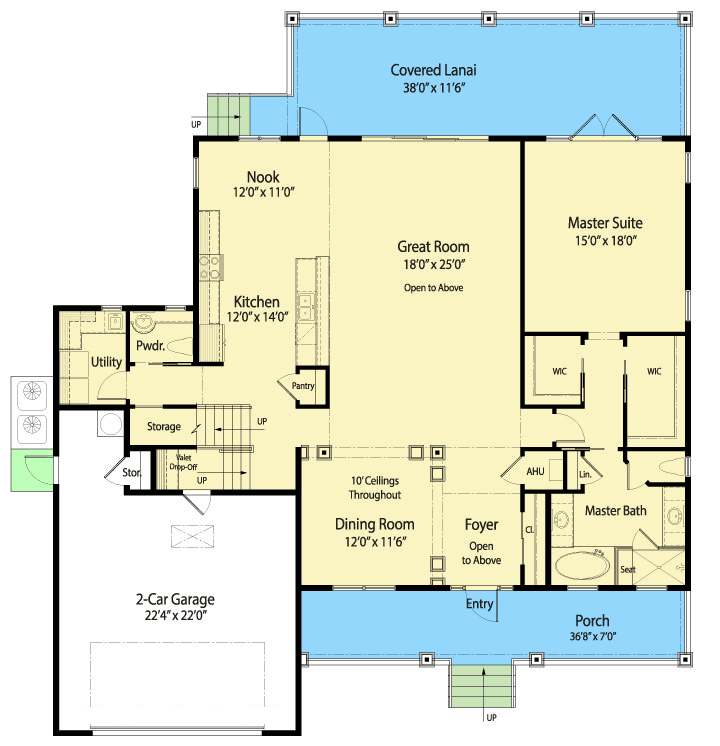

Main Level

Plan 33200ZRX: 2-Story House Plan With Open Great Room - Floor Plan - Main Level - Southern, Traditional

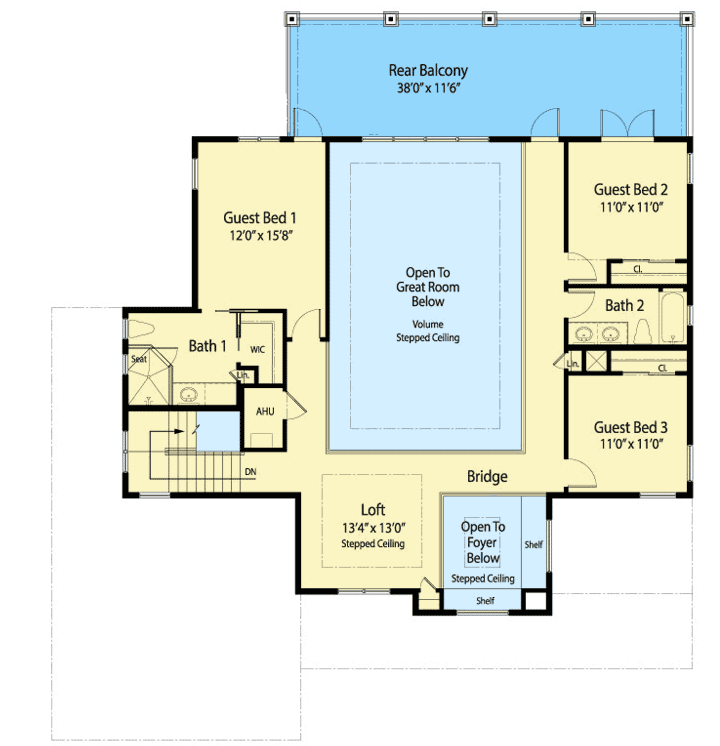

2nd Floor

Plan 33200ZRX: 2-Story House Plan With Open Great Room - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This house plan starts with an appealing exterior, with an elevated covered entry, which is enhanced by a bumped out clerestory foyer window. Inside, the 2-story foyer’s stepped ceiling makes a luxury statement. The dramatic second-story bridge dissects the view to the great room below.
  • An open concept kitchen and nook offers wide-open views of the great room and the extensive covered lanai. The great room opens to the lanai through a wall of glass sliders, bringing the outside in.
  • In the kitchen, the pantry hugs the eat-at bar and is easily accessed from the garage where groceries can be dropped off. A powder bath accommodates family and guests from the public spaces.
  • The master suite extends the entire length of the plan and offers dual walk-in closets, an amenity rich bath and thru a pair of French doors access to the lanai.
  • A generous sized utility room makes space for a sink and counter top work area.
  • The upstairs gives you three guest bedrooms, two baths and a spacious loft.
  • The garage access steps down from a valet drop-off area convenient for purse and keys.
  • Related Plans: Get an alternate exterior with house plans 33201ZR and 33202ZR.

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,303 sq. ft.

1st Floor

2,090 sq. ft.

2nd Floor

1,213 sq. ft.

Porch, Front

257 sq. ft.

Lanai

437 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

68' 8"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

3,303 sq. ft.

1st Floor

2,090 sq. ft.

2nd Floor

1,213 sq. ft.

Porch, Front

257 sq. ft.

Lanai

437 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

68' 8"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
