1-Bed ADU House Plan with Cathedral Ceilings - 593 Sq Ft

Heated S.F.
593
Beds
1
Baths
1
Stories
1
Tour

Floor Plan

Plan 623402DJ

Main Level
Main Level

Plan 623402DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

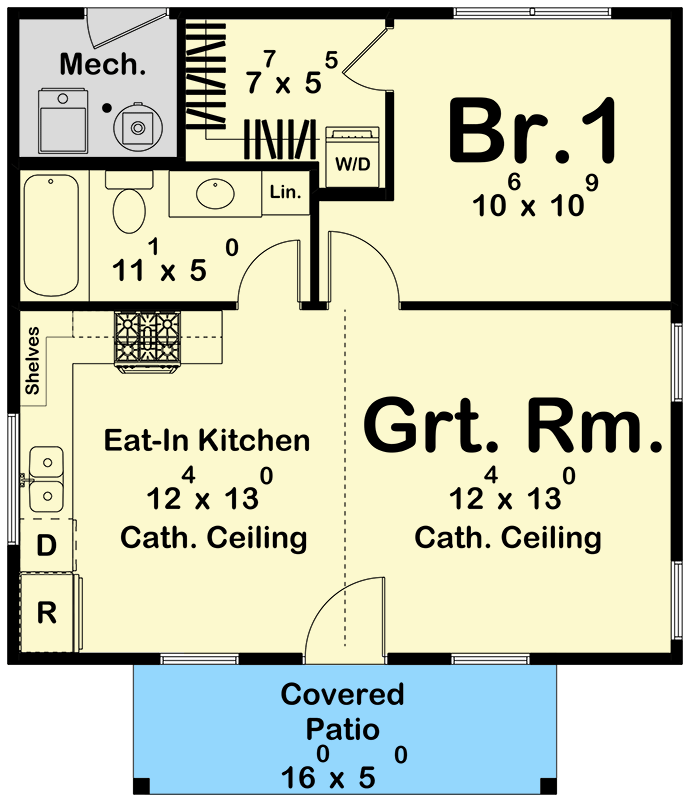

Plan 623402DJ: 1-Bed ADU House Plan with Cathedral Ceilings - 593 Sq Ft - Floor Plan - Main Level - Cottage, Country, Modern Farmhouse

Plan Details

  • This stylish ADU features one bedroom and one bathroom, designed to maximize comfort and functionality.
  • Step into the main living area and be captivated by the soaring cathedral ceiling, which enhances the sense of space and openness.
  • The eat-in kitchen, designed for both style and practicality, offers an ideal spot for cooking and casual meals, combining form and function beautifully.
  • The bedroom serves as a tranquil retreat, complete with a spacious walk-in closet for all your storage needs.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

593 sq. ft.

1st Floor

593 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 4"

Depth

29' 8"

Max Ridge Height

21' 3"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Cottage

Country

Modern Farmhouse

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

593 sq. ft.

1st Floor

593 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 4"

Depth

29' 8"

Max Ridge Height

21' 3"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

4 on 12

Architectural Style

Cottage

Country

Modern Farmhouse

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU
