Plan 64477SC

1-Bed Carriage House with Main-level Mudroom

Heated S.F.
681
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 64477SC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 64477SC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

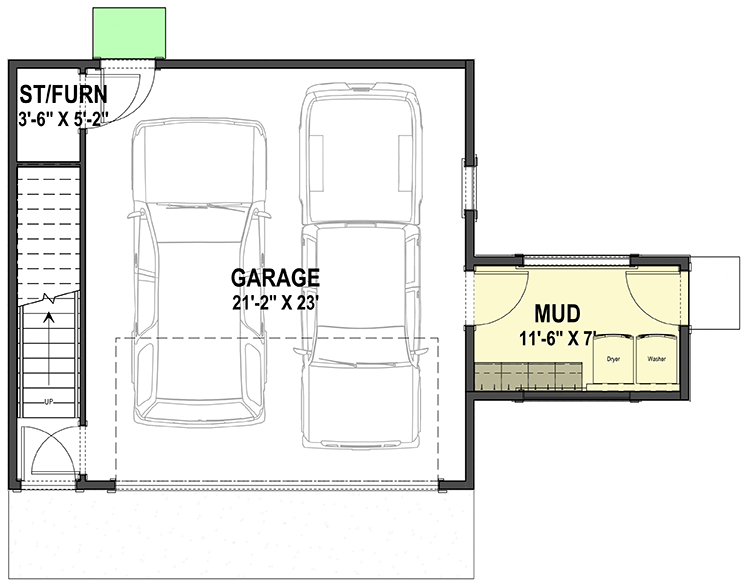

Plan 64477SC: 1-Bed Carriage House with Main-level Mudroom - Floor Plan - Main Level - Bungalow, Carriage, Cottage, Craftsman

2nd Floor

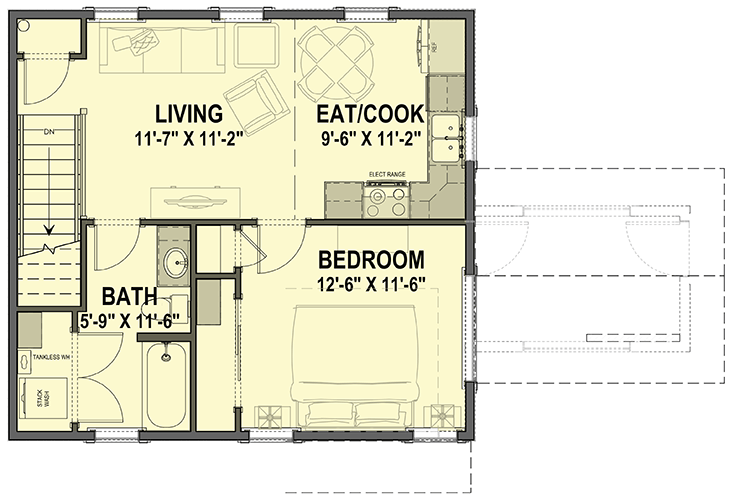

Plan 64477SC: 1-Bed Carriage House with Main-level Mudroom - Floor Plan - 2nd Floor - Bungalow, Carriage, Cottage, Craftsman

Plan Details

  • Although small in size, this 1-bedroom carriage house boasts immense character and exterior charm.
  • The main level consists of the 2-car garage and a mud / laundry room that juts out from the square design.
  • Upstairs, the L-shaped counters keep the kitchen open to the living space, making the rooms feel larger.
  • The bedroom includes a closet for your wardrobe, as well as a linen closet for additional storage space.
  • A laundry closet is accessible from the full bathroom.

What's Included

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

681 sq. ft.

2nd Floor

681 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

24' 0"

Max Ridge Height

25' 9"

Garage

Type

Attached

Area

521 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Bungalow

Carriage

Cottage

Craftsman

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

ADU
