Plan 135008GRA
1-Bed Carriage House with Oversized Garage and Loft
Heated S.F.
2,369
Beds
1
Baths
1
Stories
2
Cars
3
What's Included
Plan Details
  • Craftsman detailing on the exterior of this 1-bedroom, carriage house plan adds to the character and curb appeal. Stone and shake accents complete the design.
  • The sizable garage occupies the left side of the home with two oversized garage doors, along with a man door to the left.
  • An inviting front porch welcomes you inside, where a living room opens to the dining area. The galley-style kitchen is tucked towards the rear, while the walk-in pantry makes good use of the space beneath the stairs.
  • The bedroom is located on the main level and includes a full bath and walk-in closet.
  • Upstairs, discover a roomy loft to be used as a flexible space for the homeowner.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Bed Carriage House with Oversized Garage and Loft

  • 2,369

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

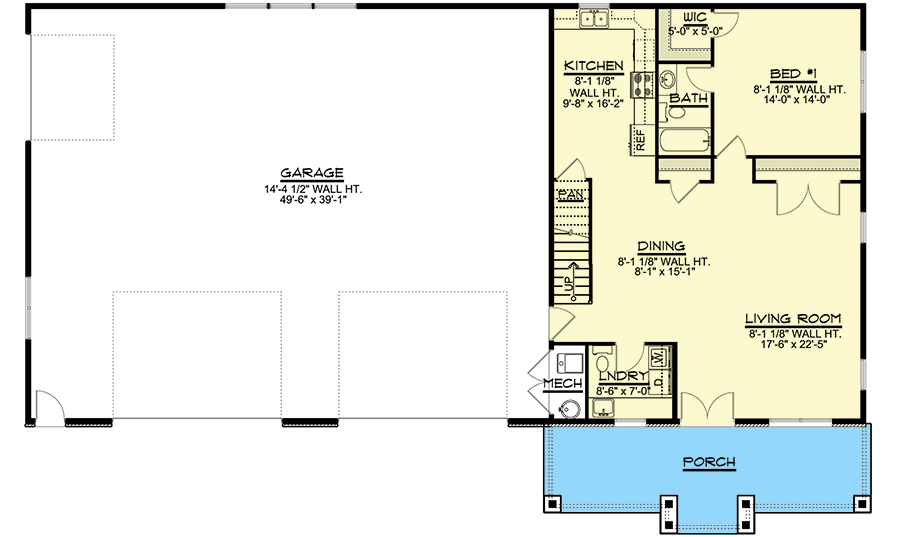

Floor Plan

  • Main Level

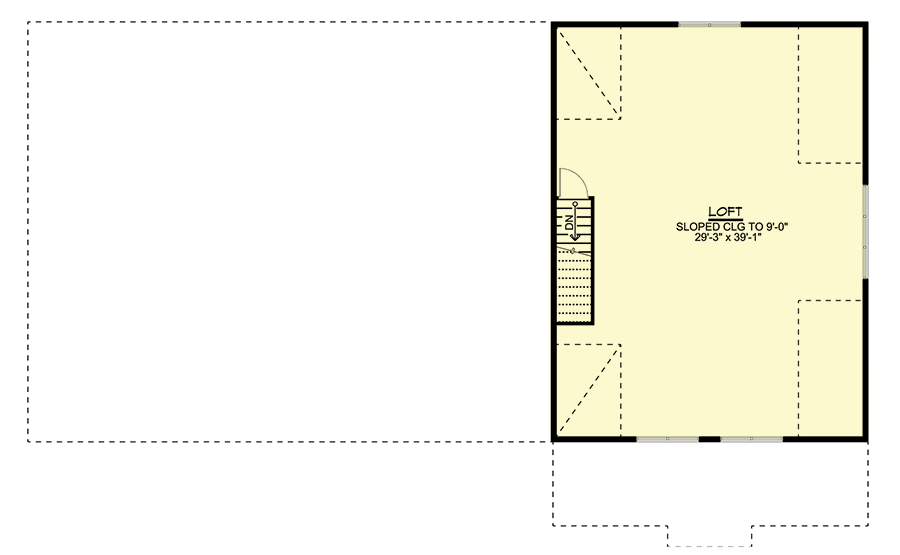

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,369 sq. ft.
  • 1st Floor: 1,207 sq. ft.
  • 2nd Floor: 1,162 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 40' 0"
  • Max ridge height: 25' 2"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 1993 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick And Truss
