Plan 51245MM

1-Bed Cottage House Plan with Vaulted Ceilings

Heated S.F.
716
Beds
1
Baths
1
Stories
1
Cars
1

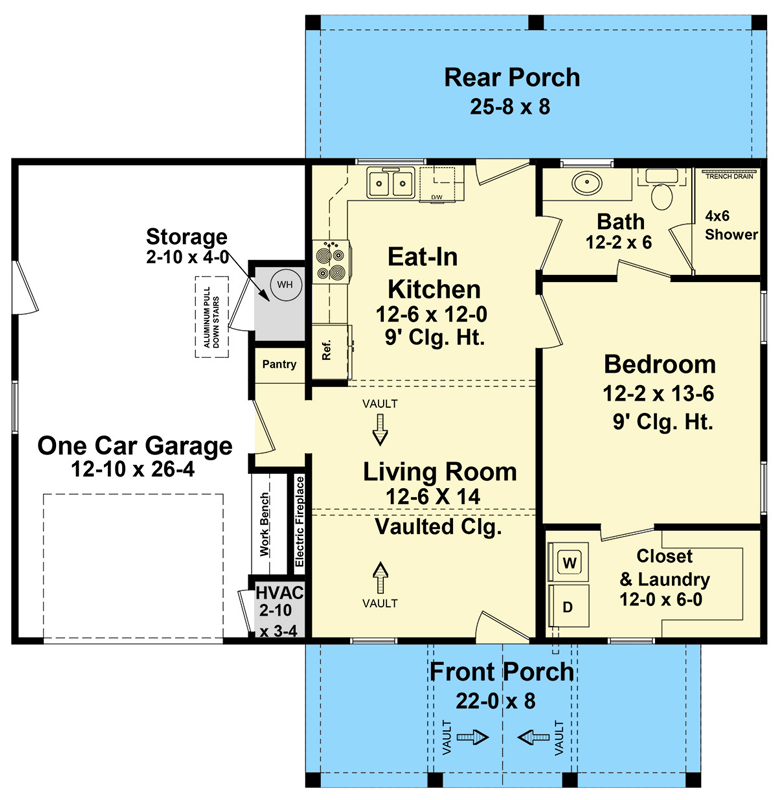

Floor Plan

Plan 51245MM

Main Level
Main Level

Plan 51245MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51245MM: 1-Bed Cottage House Plan with Vaulted Ceilings - Floor Plan - Main Level - Cottage, Farmhouse

Plan Details

  • This charming 716 sq. ft. cottage plan offers 1 bedroom, 1 bathroom, and an attached 418 sq. ft. one-car garage.
  • Enter through a welcoming front porch into the central living space featuring vaulted ceilings for an airy, open feel.
  • The eat-in kitchen is conveniently located next to the living room, providing an ideal space for both cooking and dining.
  • The main floor master suite includes a spacious layout with an adjacent laundry area for added convenience.
  • Enjoy outdoor relaxation on both the 176 sq. ft. front porch and the 205 sq. ft. rear porch.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

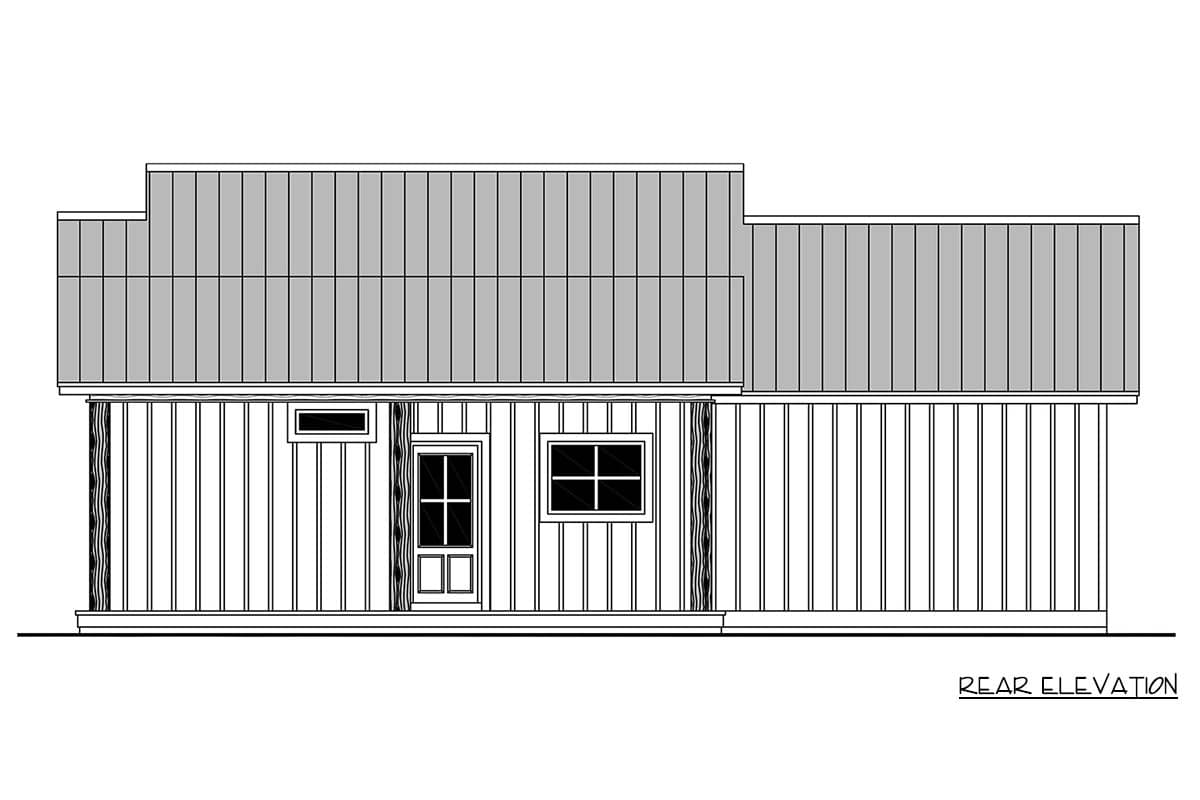

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

716 sq. ft.

1st Floor

716 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

205 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

43' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

418 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Farmhouse

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Workshop

Square Footage Breakdown

Total Heated Area

716 sq. ft.

1st Floor

716 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

205 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

43' 0"

Max Ridge Height

18' 2"

Garage

Type

Attached

Area

418 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Farmhouse

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Workshop
