Plan 51894HZ

1-Bed Country Cabin with Loft and Potential Bunk Room

Heated S.F.
1,227
Beds
1
Baths
2
Stories
2

Floor Plan

Plan 51894HZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51894HZ

M-F 9am-5pm EST |

1-203-761-8500

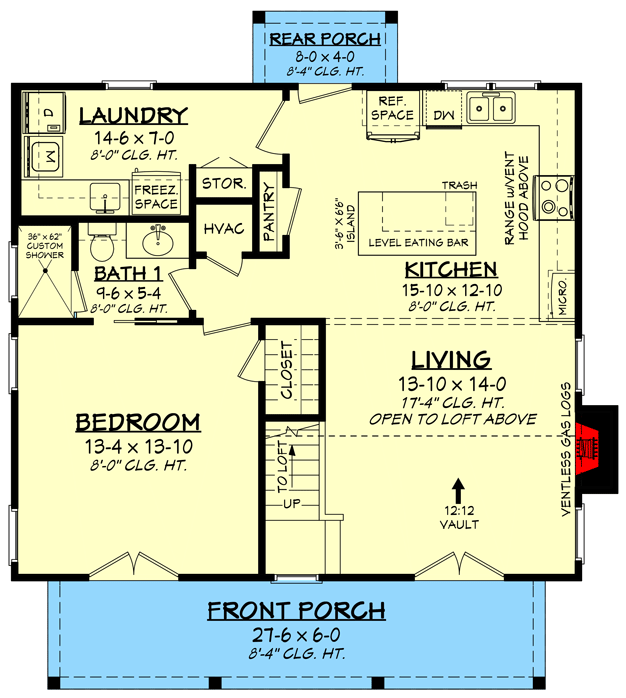

Main Level

Plan 51894HZ: 1-Bed Country Cabin with Loft and Potential Bunk Room - Floor Plan - Main Level - Cabin, Cottage, Country, Rustic, Traditional, Vacation

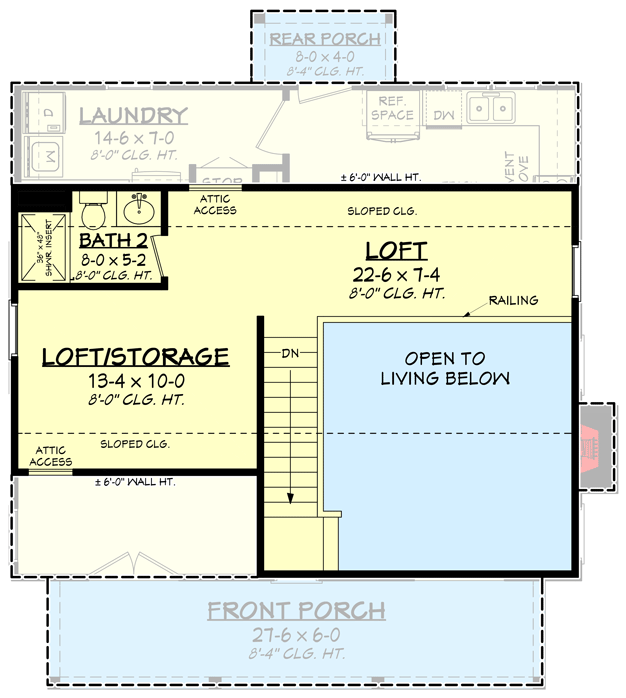

2nd Floor

Plan 51894HZ: 1-Bed Country Cabin with Loft and Potential Bunk Room - Floor Plan - 2nd Floor - Cabin, Cottage, Country, Rustic, Traditional, Vacation

Plan Details

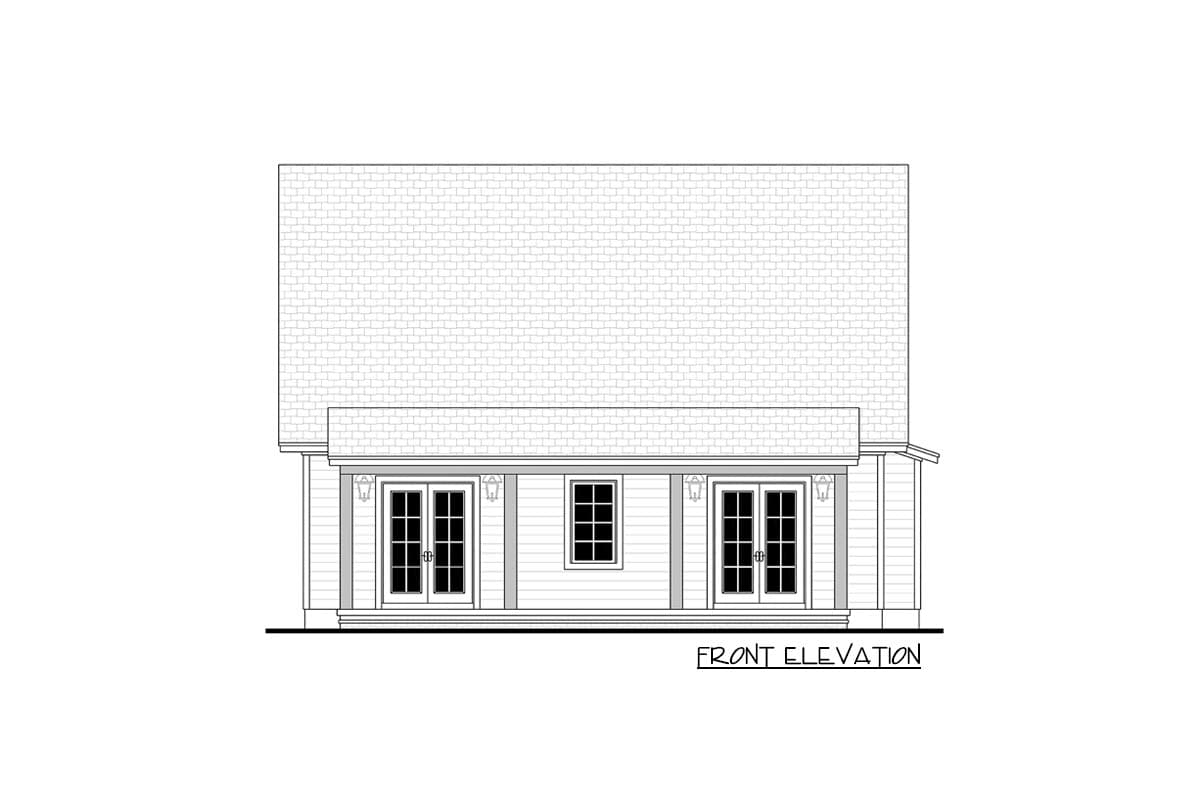

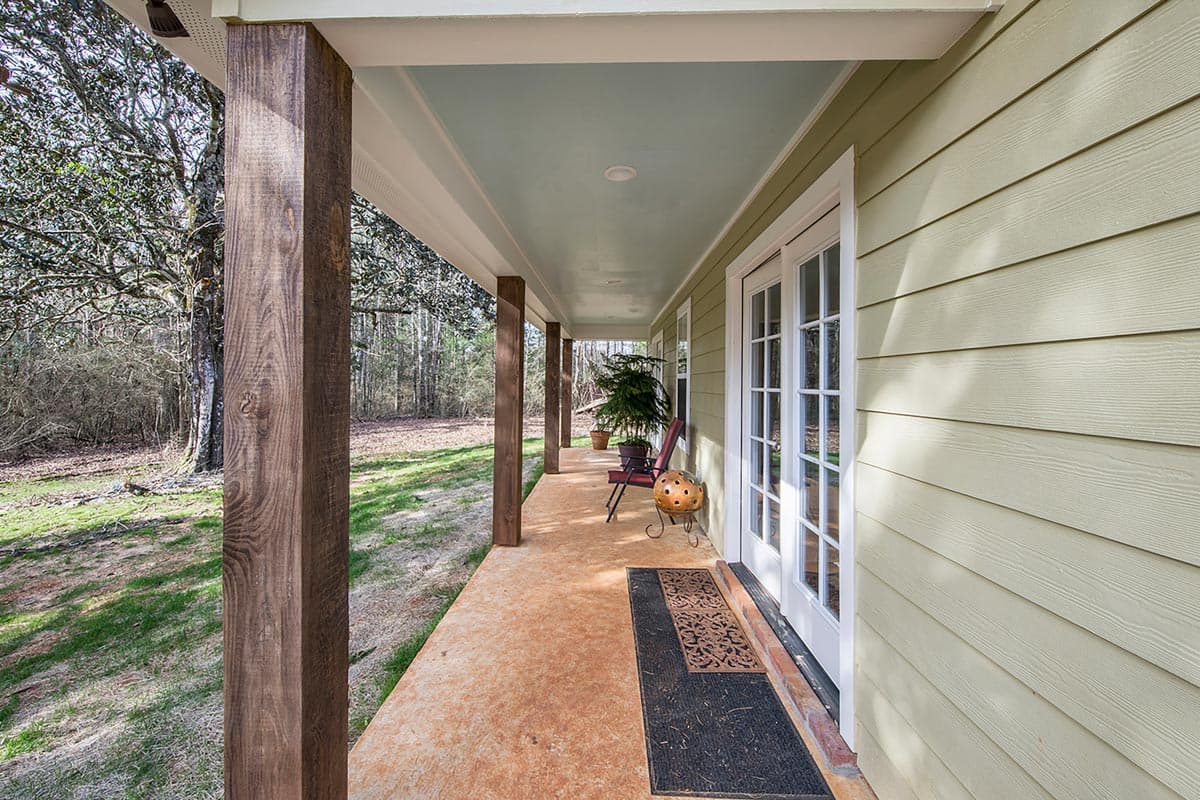

  • This compact country house plan is perfect for use as a cabin or for someone that doesn't need an abundance of rooms to live. Four timbers support the shed roof giving you a shady 6'-deep front porch to enjoy.

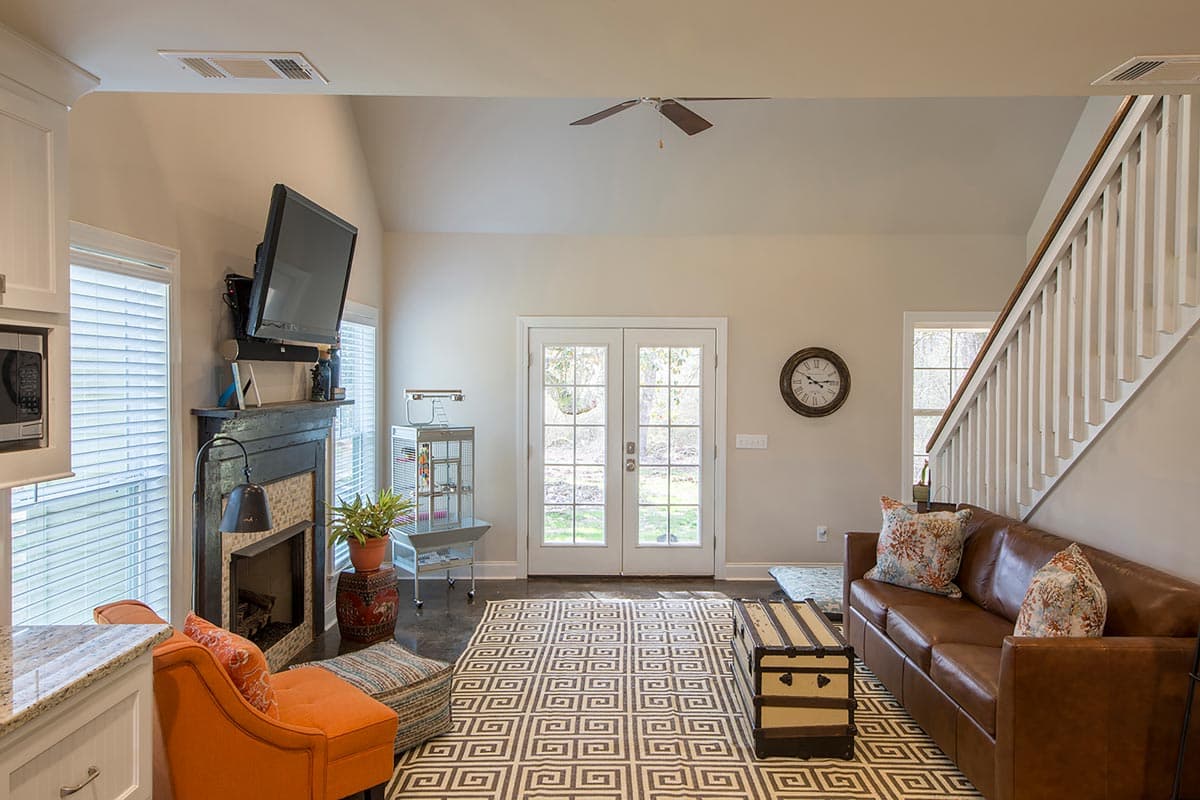

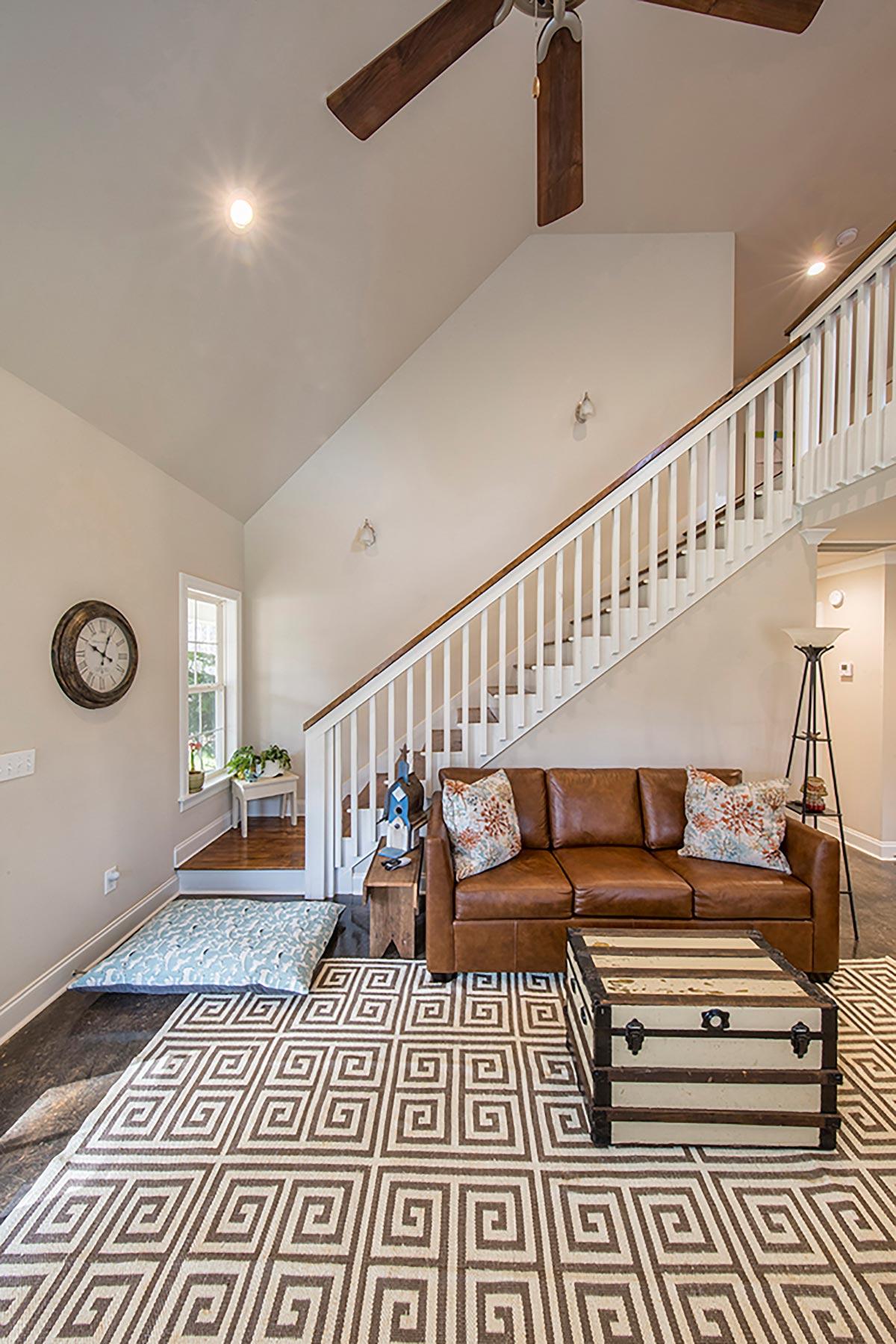

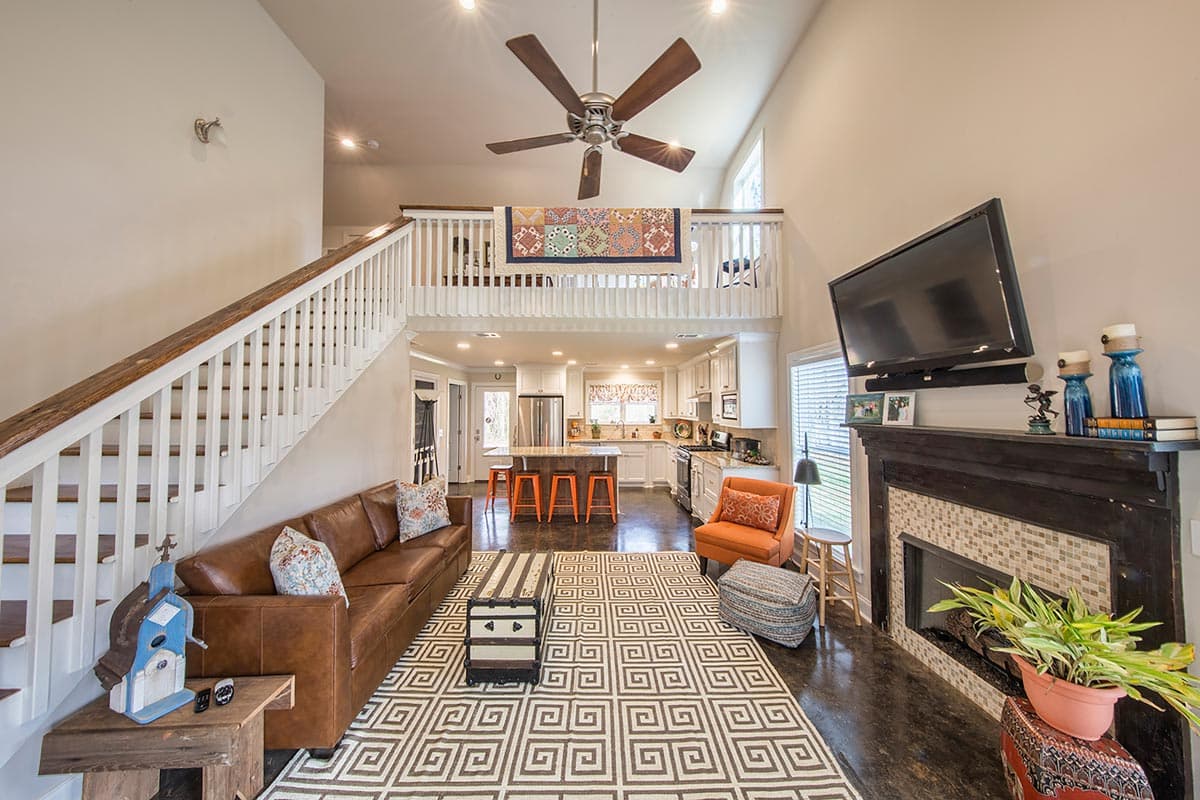

  • Two sets of French doors open from the porch: the one on the left takes you into the main bedroom and the one on the right into the living room that is open to the loft above.

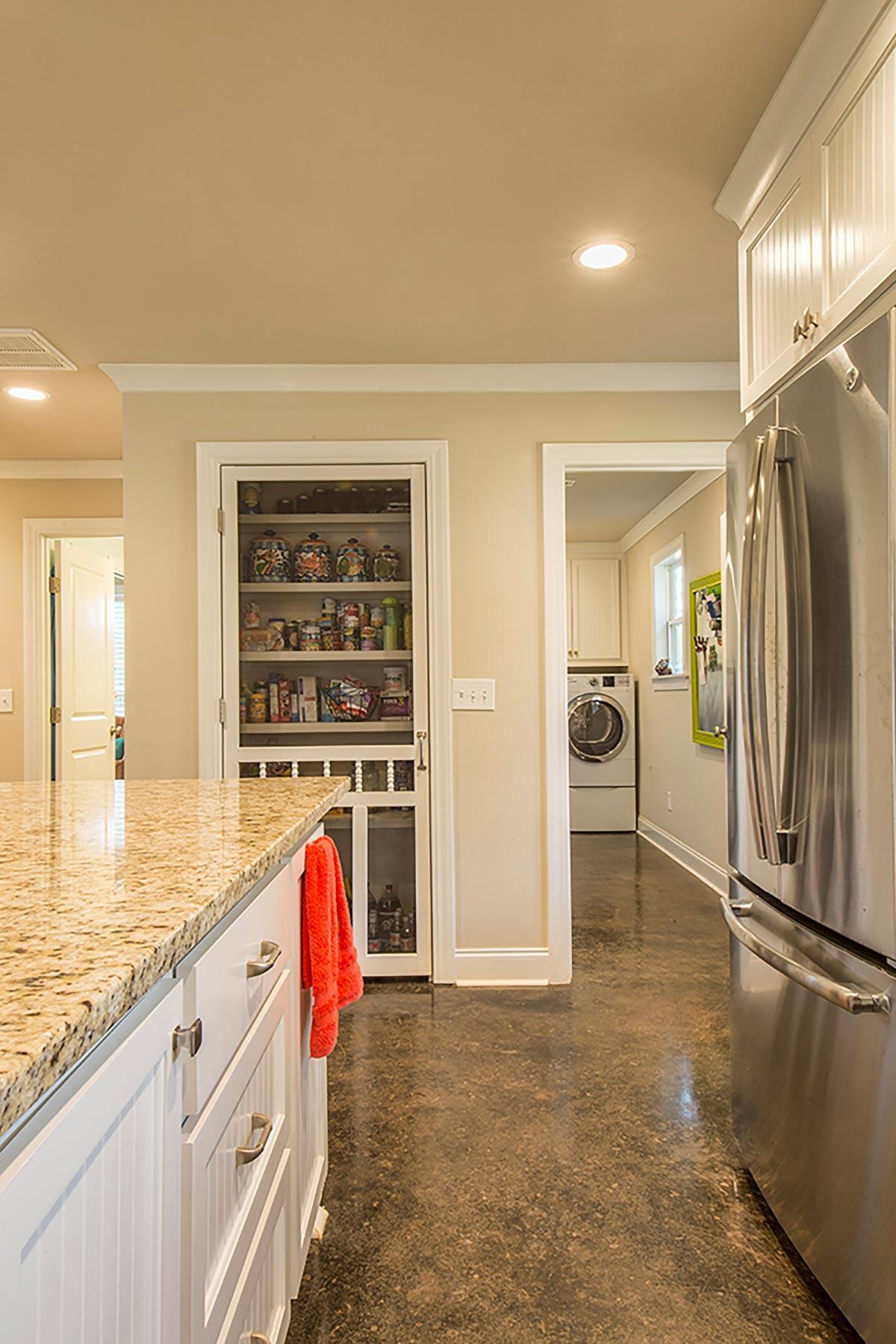

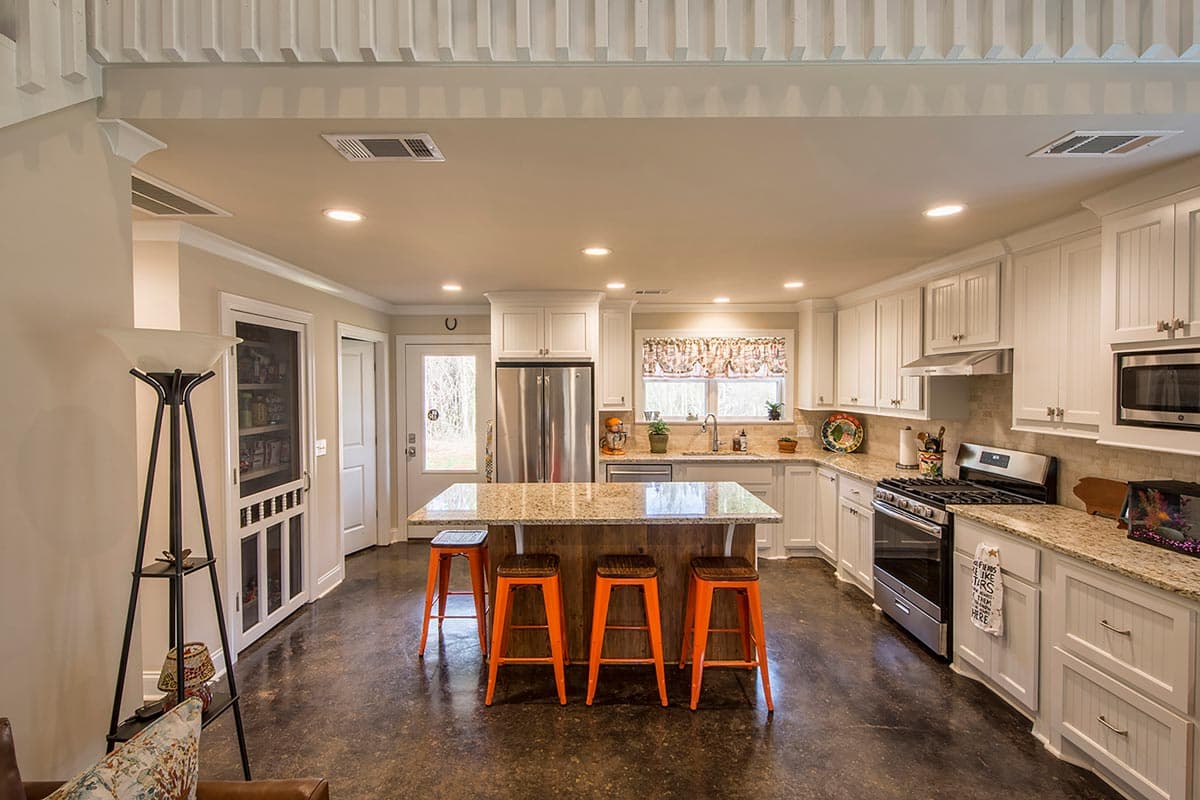

  • There's a nice-sized kitchen island - 6'6" by 3'6" - that gives you casual seating on two sides. A door on the back wall takes you to a small rear porch.

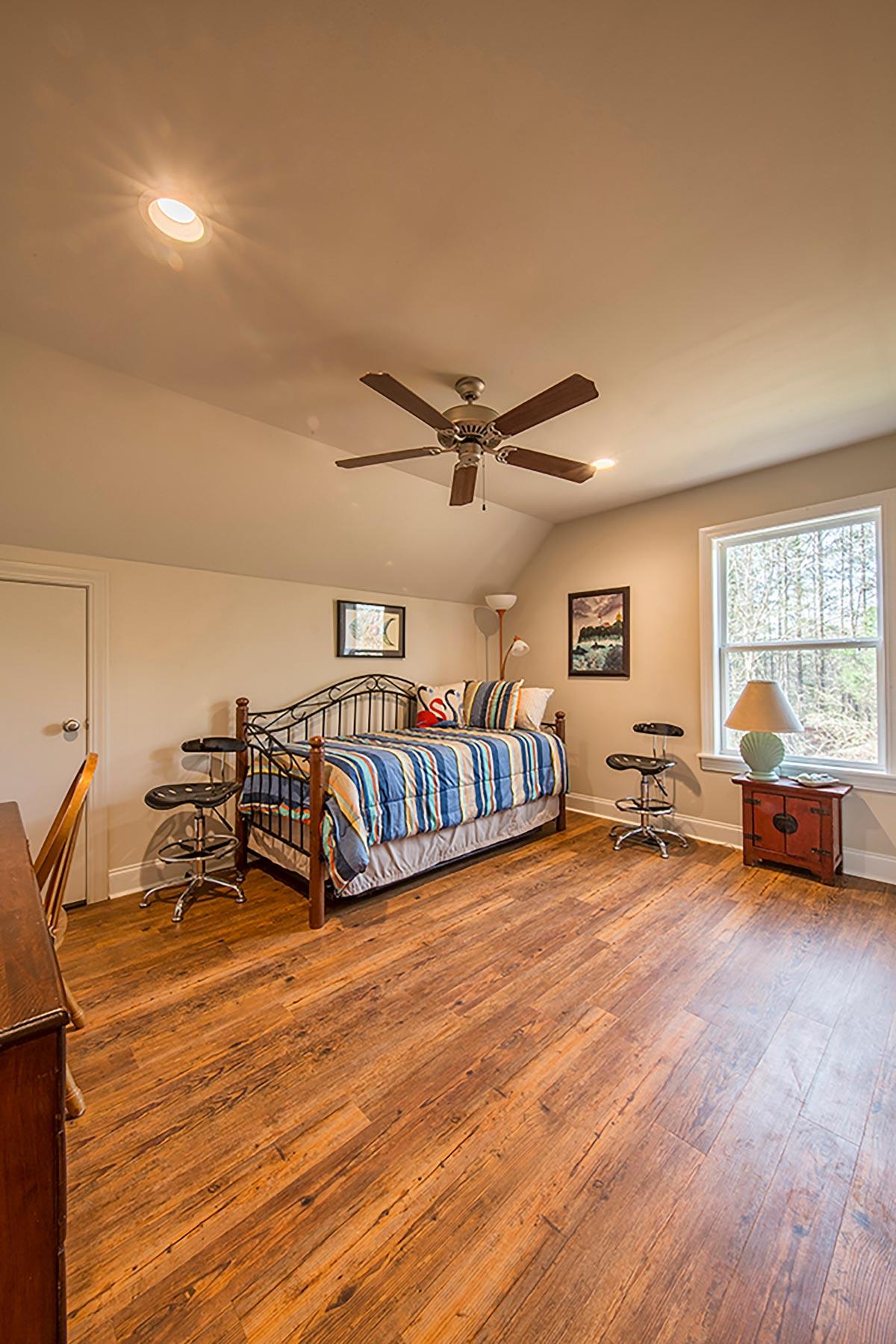

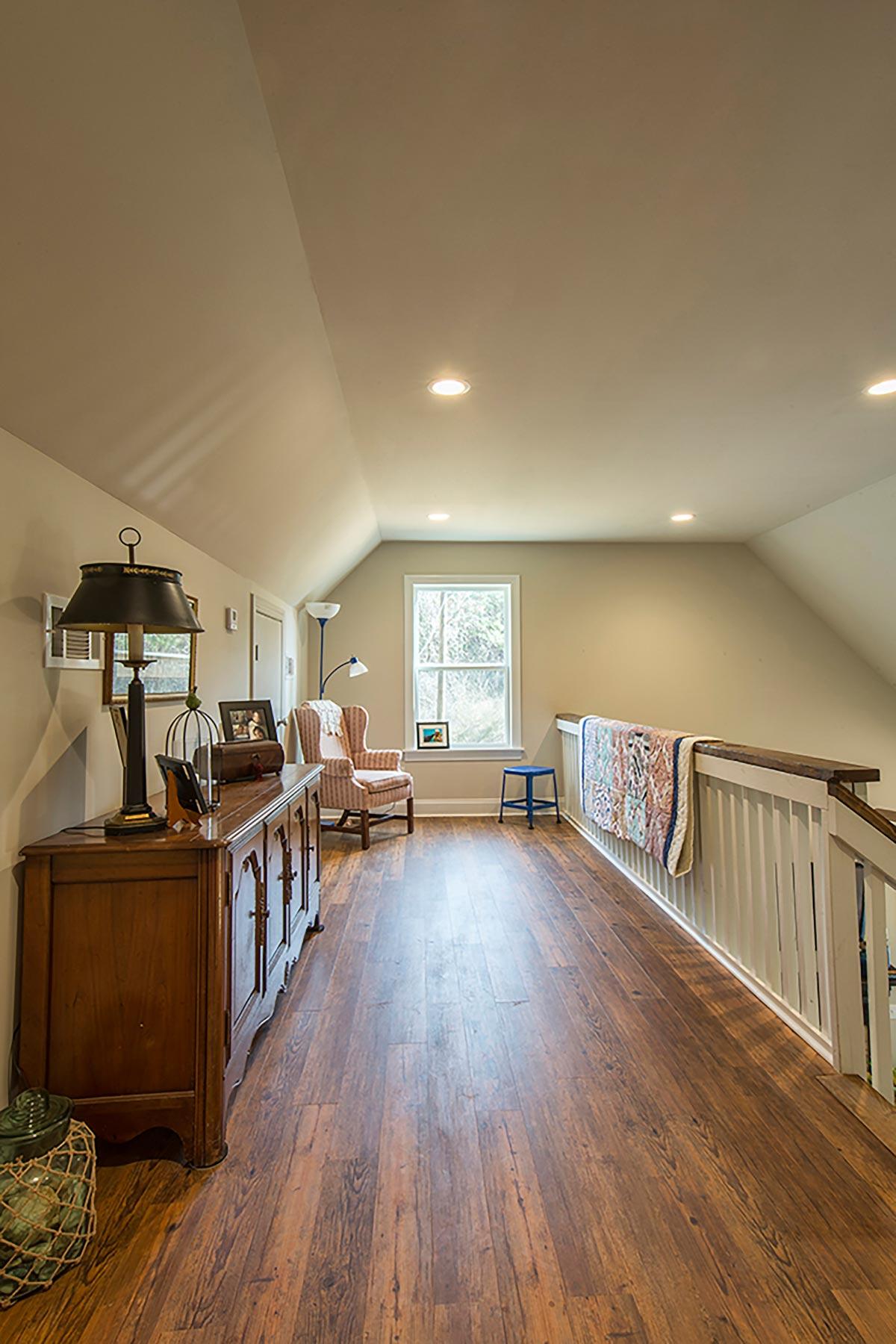

  • Upstairs, an open rail gives you views to below from the loft. A more enclosed loft space is the perfect place for a bunk room.

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plans and electrical plans (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Exterior views with additional notes and details
Page 5  Cross Section & kitchen cabinet views
Page 6  Roof plan and span charts with additional details
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,227 sq. ft.

1st Floor

866 sq. ft.

2nd Floor

361 sq. ft.

Porch, Front

165 sq. ft.

Porch, Rear

32 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 6"

Depth

37' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Traditional

Vacation

Special Features

Bunk Room

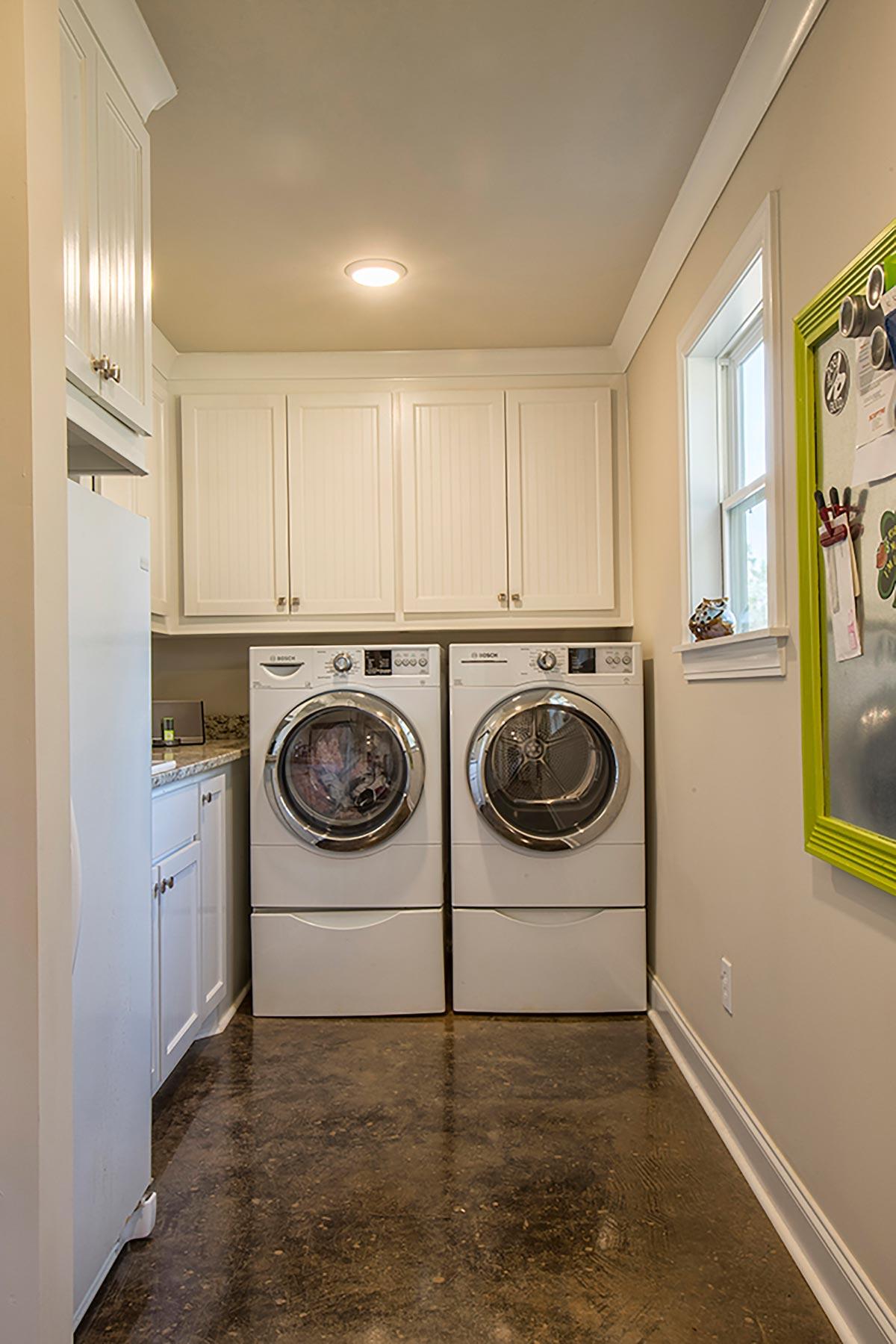

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,227 sq. ft.

1st Floor

866 sq. ft.

2nd Floor

361 sq. ft.

Porch, Front

165 sq. ft.

Porch, Rear

32 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 6"

Depth

37' 6"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Rustic

Traditional

Vacation

Special Features

Bunk Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
