Plan 333010JHB
1-Bed Getaway for Tiny Living
Heated S.F.
808
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This one-bedroom getaway is perfect for a couple or small family, and could serve as a vacation home or tiny living residence.
  • The stone wrapped fireplace flanked by windows forms the focal point of the great room.
  • Double barn doors give privacy to the bedroom which can be a master as shown or easily accommodate a wall of built-in bunk beds.
  • As drawn, this vacation house is inexpensive to build and has everything you need.
  • Contact Architectural Designs for changes, such as adding a vaulted ceiling with timber trusses to the great room and / or substituting a 10' wide sliding door for the 6' one shown.
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view
  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Bed Getaway for Tiny Living

  • 808

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

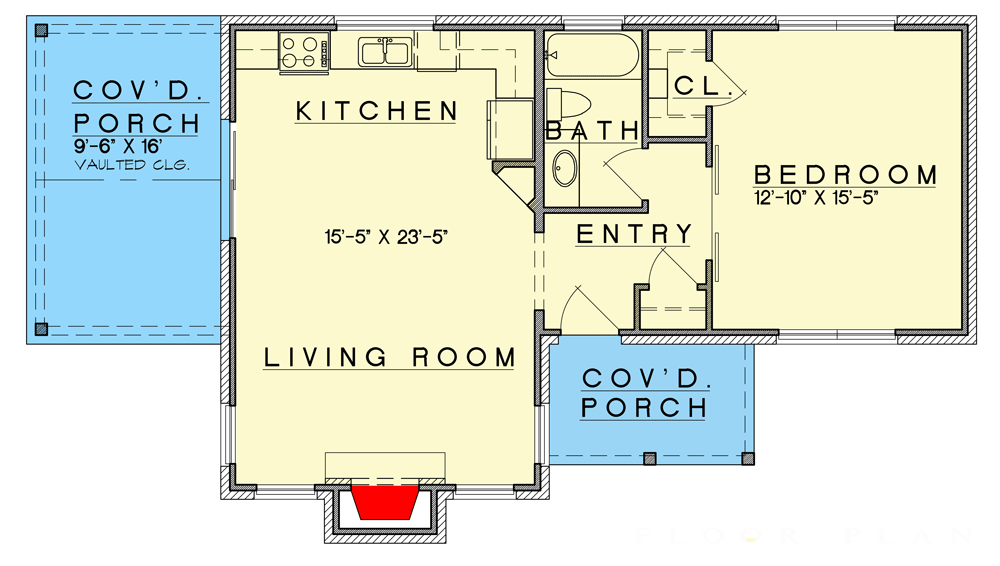

Floor Plan
