Plan 62123V

1-Bed House Plan with Carport - 815 Sq Ft - Architectural Designs

Heated S.F.
815
Beds
1
Baths
1
Stories
1
Cars
1

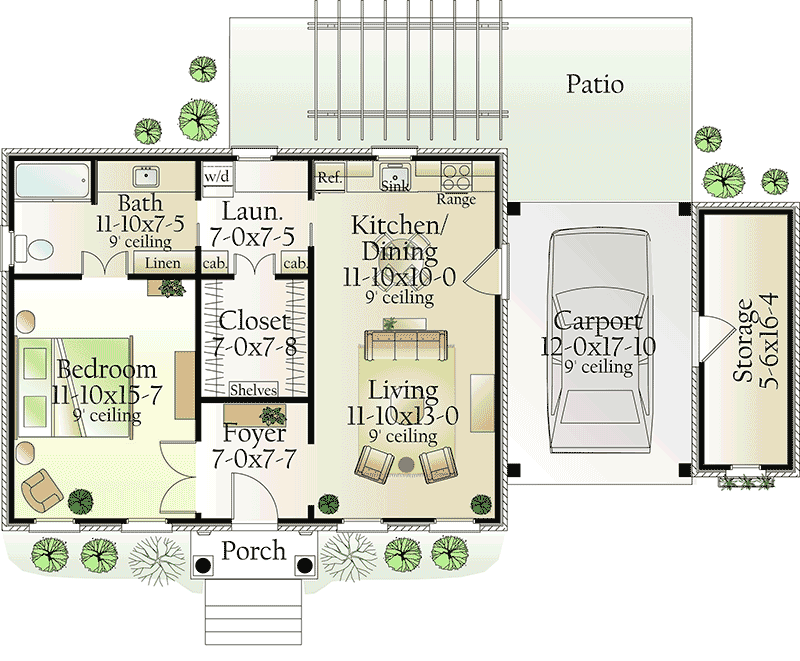

Floor Plan

Plan 62123V

Main Level
Main Level

Plan 62123V

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62123V: 1-Bed House Plan with Carport - 815 Sq Ft - Architectural Designs - Floor Plan - Main Level - Traditional

Plan Details

  • This one-bedroom house plan has a simple footprint and gives you 815 square feet of heated living space.

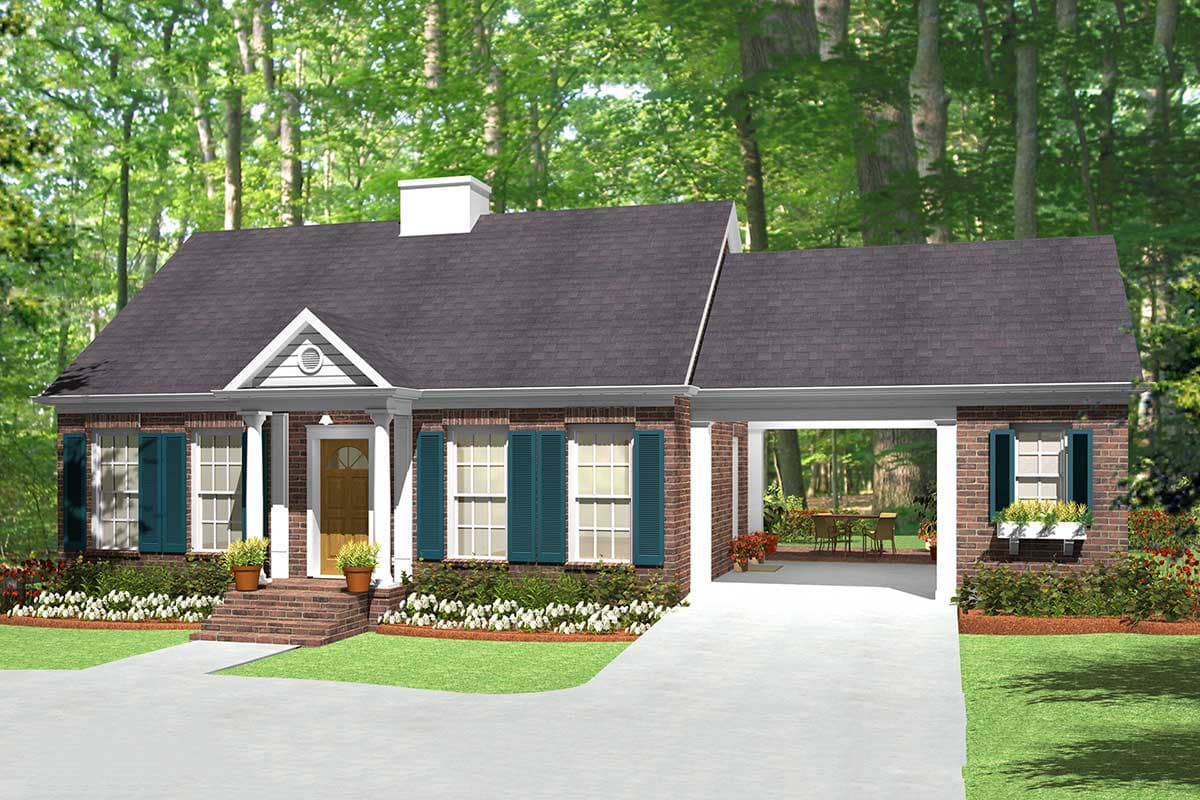

  • A carport on the right is tied into the house by a simple roofline and has a dedicated storage area with a window in front for curb appeal.
  • The right side of the home is open front to back and gives you a living room in front and the kitchen/dining area in back.
  • The left side has a bedroom with bathroom that is connected to the laundry room.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.

What's Included

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

815 sq. ft.

1st Floor

815 sq. ft.

Entry

19 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 10"

Depth

28' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport, Attached

Area

339 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

815 sq. ft.

1st Floor

815 sq. ft.

Entry

19 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

51' 10"

Depth

28' 0"

Max Ridge Height

20' 0"

Garage

Type

Carport, Attached

Area

339 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
