Plan 940008JNK
1-Bed Traditional Carriage Garage Plan with Workshop - 1207 Sq Ft
Heated S.F.
1,207
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 940008JNK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 940008JNK

1-800-854-7852

1-262-521-4596

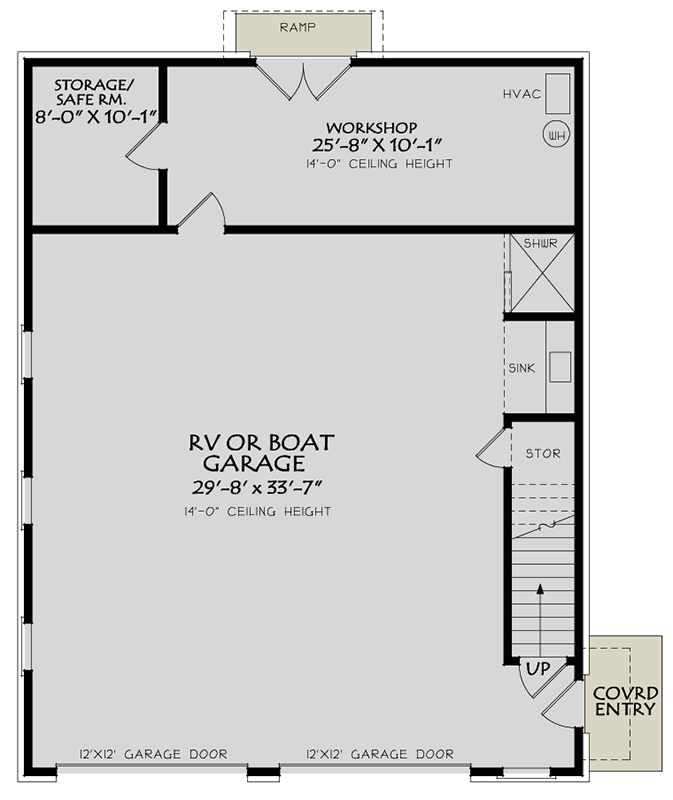

Main Level
floor plan image Main Level

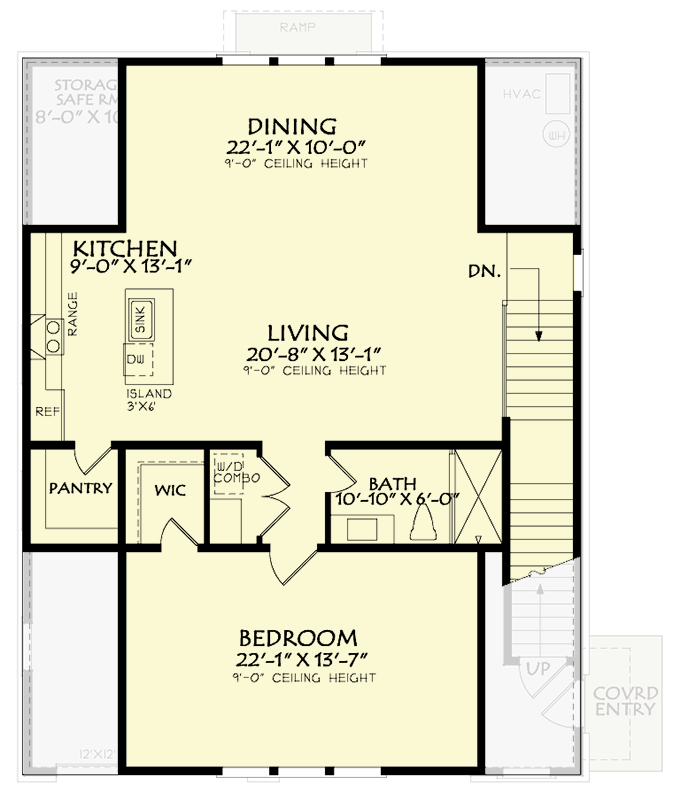

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This oversized garage plan offers you 1,207 square feet of heated living space that includes 1 bedroom and 1 bathroom on the second floor along with a 1575 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Covered Sheet
  • Front & Rear elevations - 1/4" scale - hatched w/ materials
  • Right & Left elevations - 1/4" scale - hatched w/ materials
  • Roof Over view Plan Foundation Plan
  • Floor plans - w/ Kitchen & Bath elevations
  • Sections, stair sections, typical wall section details, and miscellaneous details
  • Separate electrical plans
  • Typical Detail sheet
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,207 sq. ft.

2nd Floor

1,207 sq. ft.

Storage

90 sq. ft.

Workshop

273 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

45' 0"

Max Ridge Height

37' 10"

Garage

Type

RV Garage, Detached

Area

1575 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Safe Room

Workshop

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

1,207 sq. ft.

2nd Floor

1,207 sq. ft.

Storage

90 sq. ft.

Workshop

273 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

45' 0"

Max Ridge Height

37' 10"

Garage

Type

RV Garage, Detached

Area

1575 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

14'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Architectural Style

Carriage

Traditional

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Safe Room

Workshop

Plan Collections

Attached Apartments
