1 Bedroom Garage Apartment Plan with Cathedral Ceiling - 802 Sq Ft

Heated S.F.
802
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 623064DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623064DJ

M-F 9am-5pm EST |

1-203-761-8500

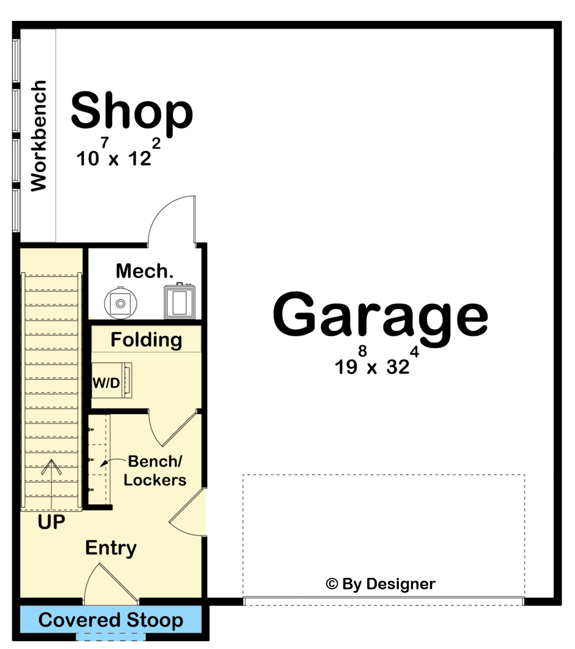

Main Level

Plan 623064DJ: 1 Bedroom Garage Apartment Plan with Cathedral Ceiling - 802 Sq Ft - Floor Plan - Main Level - Cottage, European

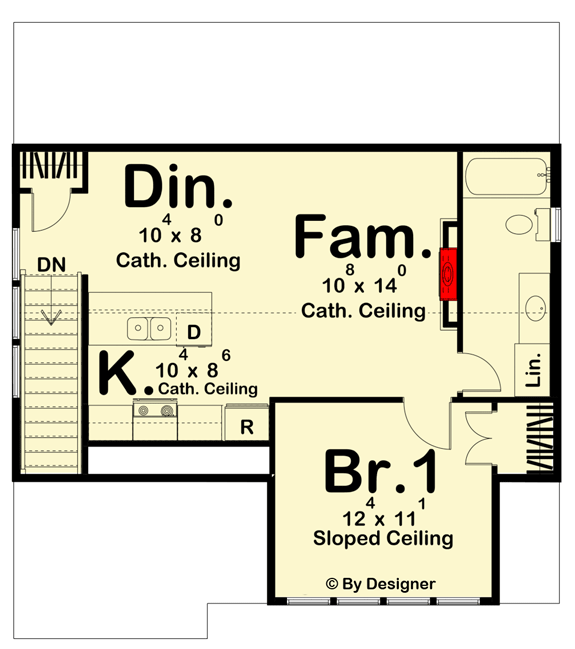

2nd Floor

Plan 623064DJ: 1 Bedroom Garage Apartment Plan with Cathedral Ceiling - 802 Sq Ft - Floor Plan - 2nd Floor - Cottage, European

Plan Details

  • The outside of this charming carriage house plan or garage apartment is highlighted by steep rooflines, dark painted brick, wood garage doors, and stucco siding.
  • The ground level level includes an oversized garage with a workshop and a built-in workbench. The mudroom/entry features a bench, lockers, and access to the laundry room.
  • Upstairs you'll find an 1 bedroom apartment with everything you need to enjoy yourself in comfort. The main living area is laid out in an open floor plan. The full kitchen includes a large island with a snack bar. The bedroom shares a centrally located bathroom with the main living area.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

802 sq. ft.

1st Floor

188 sq. ft.

2nd Floor

604 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 0"

Depth

35' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

807 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 On 12; 14 on 12

Framing Type

Truss

Architectural Style

Cottage

European

Special Features

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Workshop

Square Footage Breakdown

Total Heated Area

802 sq. ft.

1st Floor

188 sq. ft.

2nd Floor

604 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

31' 0"

Depth

35' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

807 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 On 12; 14 on 12

Framing Type

Truss

Architectural Style

Cottage

European

Special Features

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Workshop
