Plan 86135BW

1-Story Coastal Contemporary House Plan - 2458 Sq Ft

Name: Plan 86135BW: 1-Story Coastal Contemporary House Plan - 2458 Sq Ft
Brand: Architectural Designs
SKU: 86135BW
Price: 2215.0 USD
Availability: InStock

Heated S.F.

2,458

Beds

Baths

Stories

Cars

Floor Plan

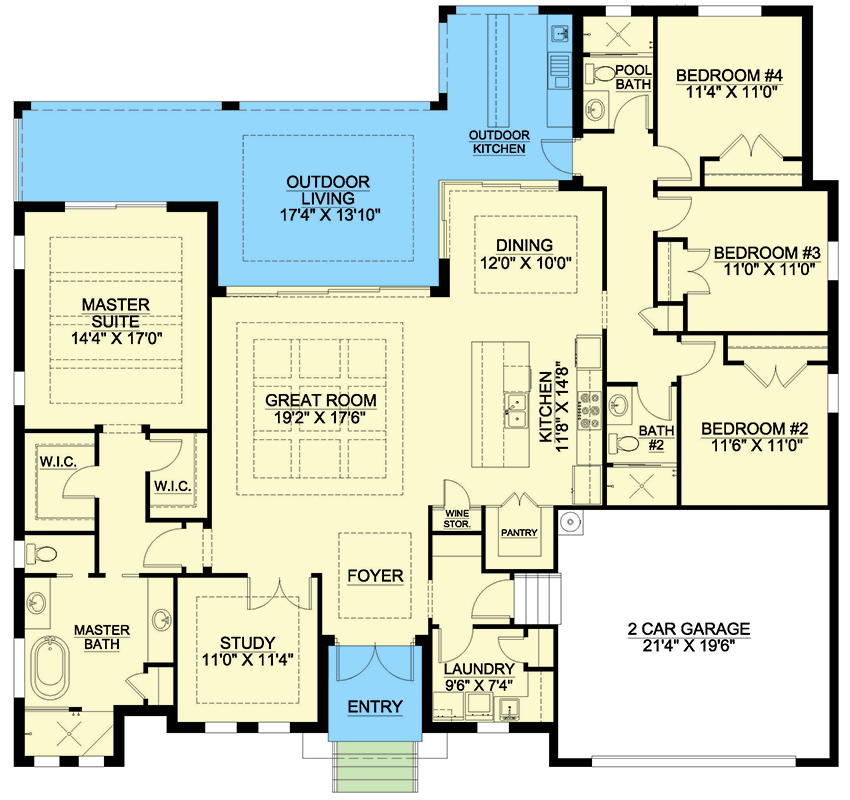

Main Level

Plan Details

This 1-story coastal contemporary house plan gives you 2,458 square feet of heated living with 4 bedrooms, 3 baths and a 2 car 459 square foot front entry garage. It is designed with a stem wall foundation 8″ CMU exterior walls, cement tile roof and stucco finish.
Amenities include a great room open to the island kitchen, dining room, study, dedicated laundry room and a lanai with outdoor kitchen. The master bedroom suite features dual sinks, 2 walk-in closets, free-standing tub and a shower.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

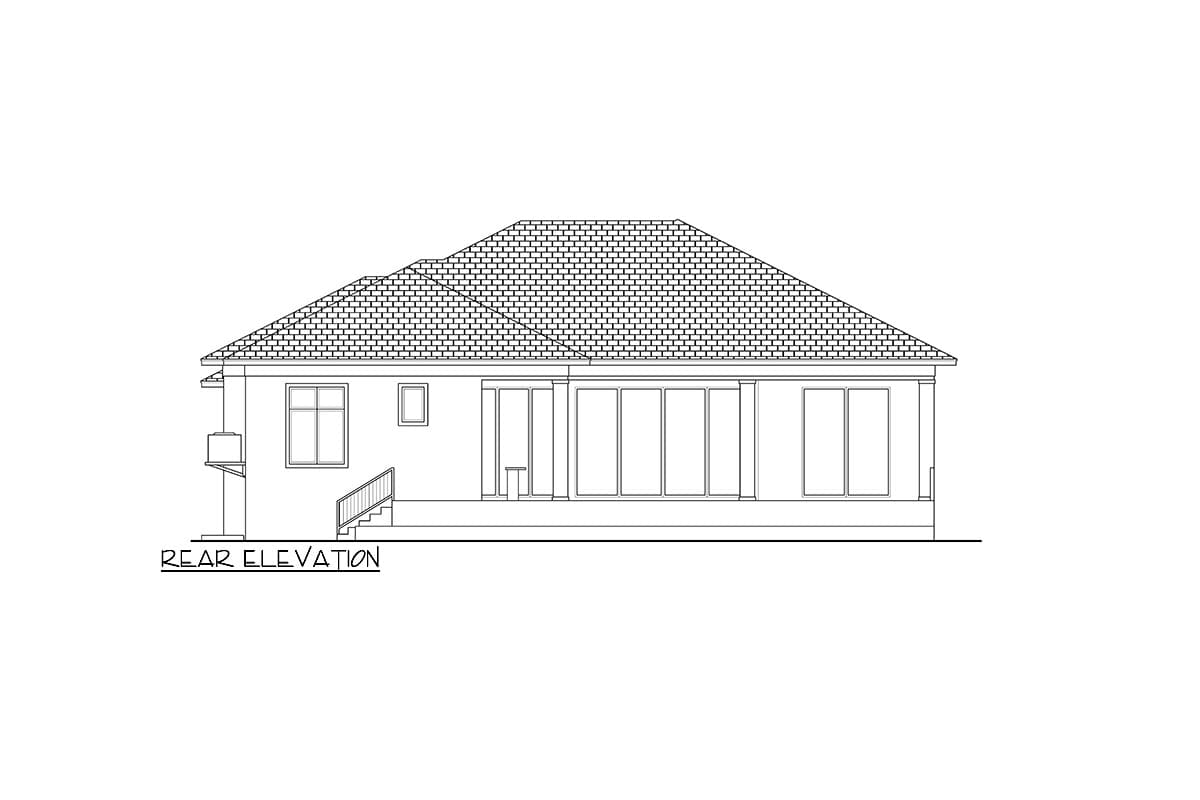

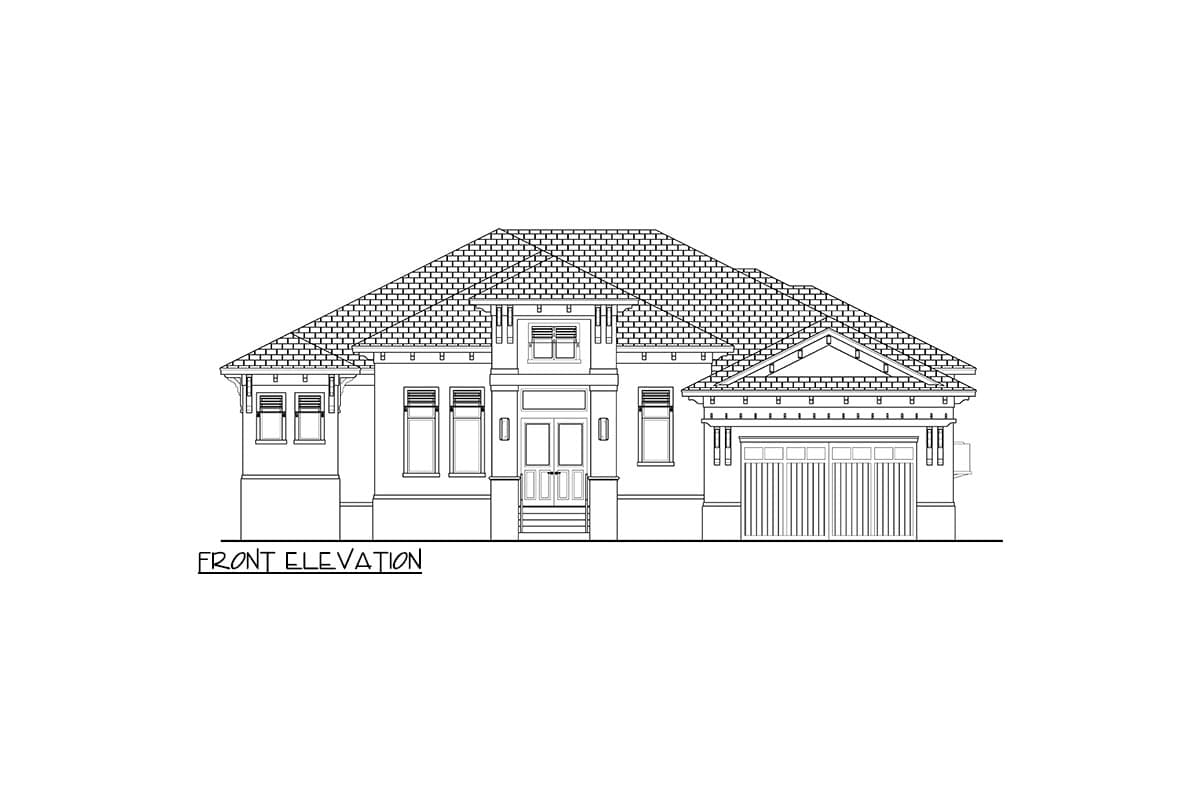

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Size

Electrical Layouts

Building Section Markers
Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor Joist Size and Spacing
Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
