Plan 33132ZRX
1 Story House Plan with Flex and Bonus Rooms - 2750 Square Feet
Heated S.F.
2,750
Beds
3 - 5
Baths
3 - 4
Stories
1
Cars
2
Floor Plan

Plan 33132ZRX

Main Level
slide image 0
Bonus
slide image 1

Plan 33132ZRX

1-800-854-7852

1-262-521-4596

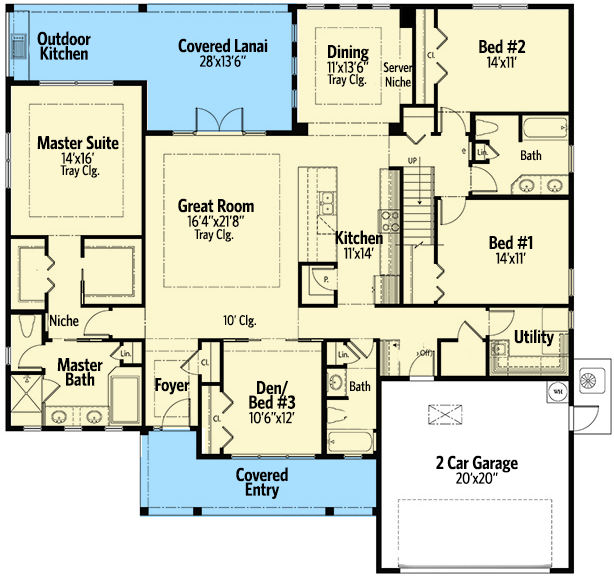

Main Level
floor plan image Main Level

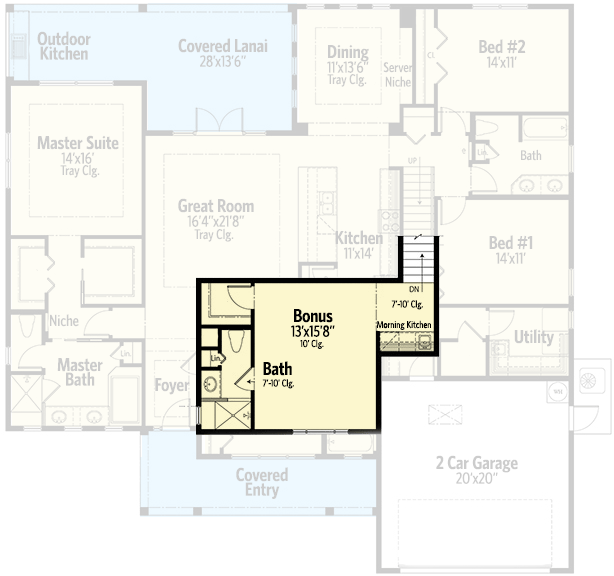

Bonus
floor plan image Bonus
Plan Details

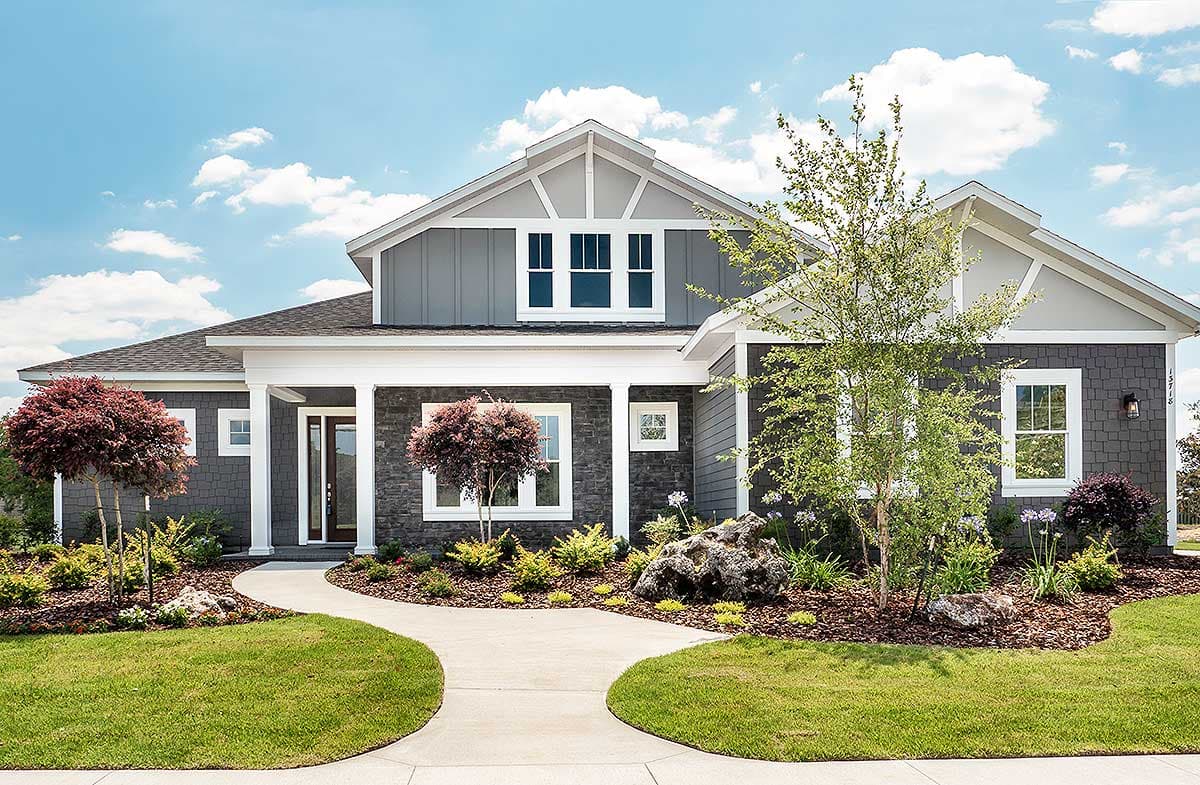

  • This 1-story house plan has a Craftsman exterior and has a flex room and a bonus room and gives you 2,750 square feet of heated living.
  • Add to that a split bedroom configuration and a walk-in pantry and you get a home that is sure to please.
  • Bonus space on the second floor gives you an extra bathroom and morning kitchen.
  • Related Plans: Get alternate exteriors with house plans 33133ZRX and 33134ZRX.
What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,750 sq. ft.

1st Floor

2,750 sq. ft.

Bonus

379 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 6"

Depth

60' 8"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Plan Collections

Square Footage Breakdown

Total Heated Area

2,750 sq. ft.

1st Floor

2,750 sq. ft.

Bonus

379 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 6"

Depth

60' 8"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

400 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Framing Type

Truss

Architectural Style

Plan Collections
