1026 Square Foot RV-Friendly Garage with 2 Bays and Workshop Space

Plan 680099VR

  • 0

    Heated s.f.

  • 1

    Stories

  • 2

    Cars

  • This RV-friendly 1,026 square foot detached garage plan has a brick exterior and two bays.
  • The RV bay has a 12' by 14' overhead door and the other bay has a 9' by 8' overhead door.
  • In back of the garage, there is a storage area for lawn equipment and a workshop.
  • Related Plan: Get an extra bay with garage plan 68669VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

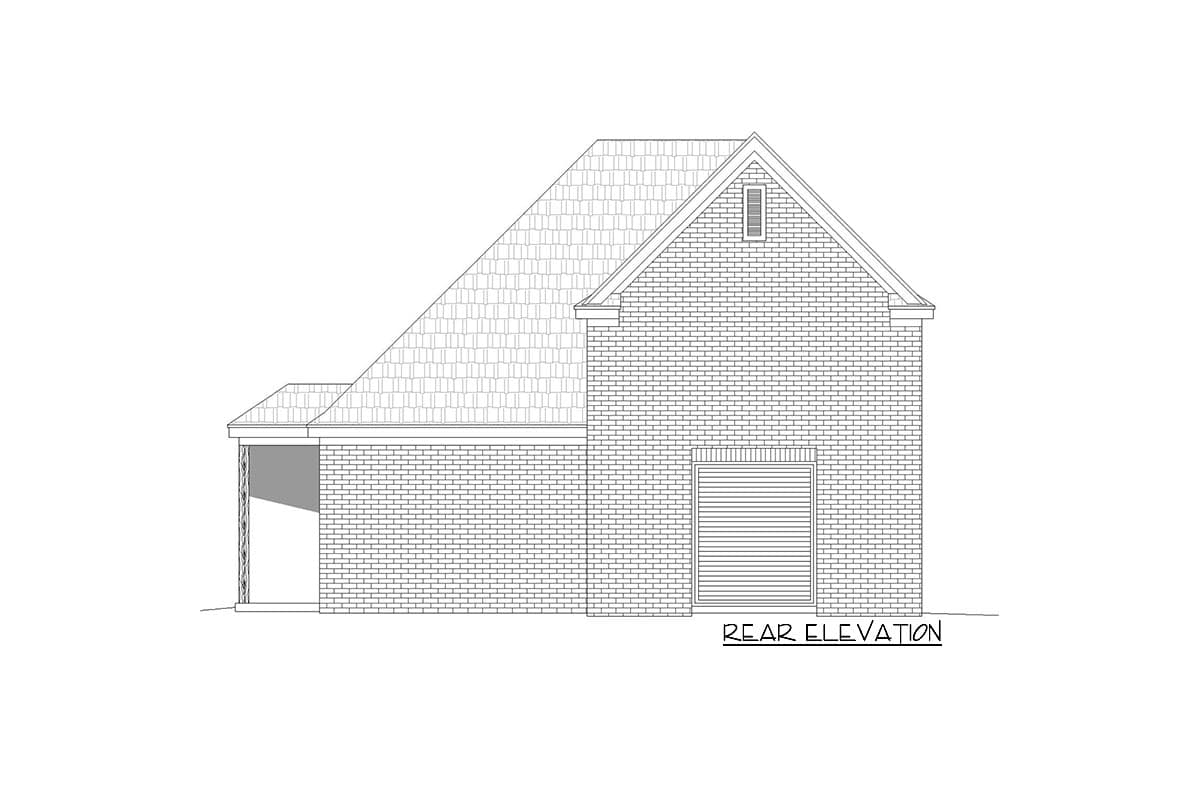

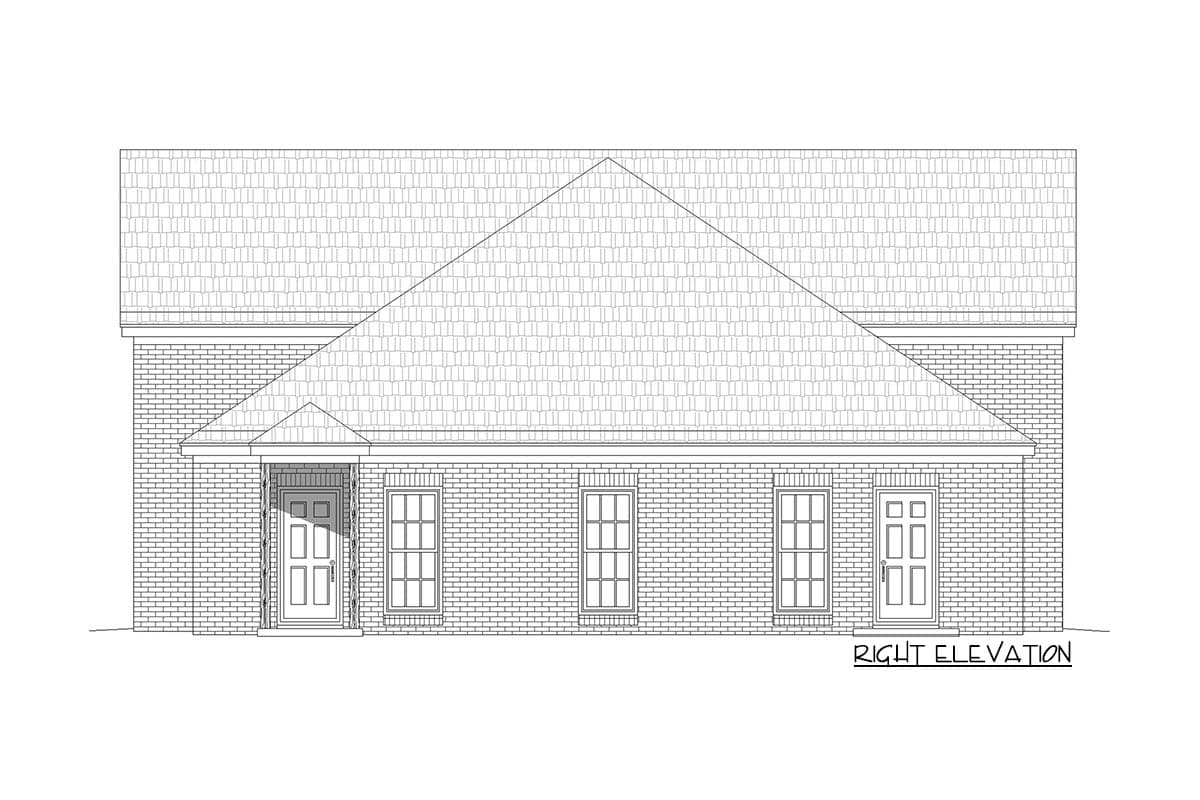

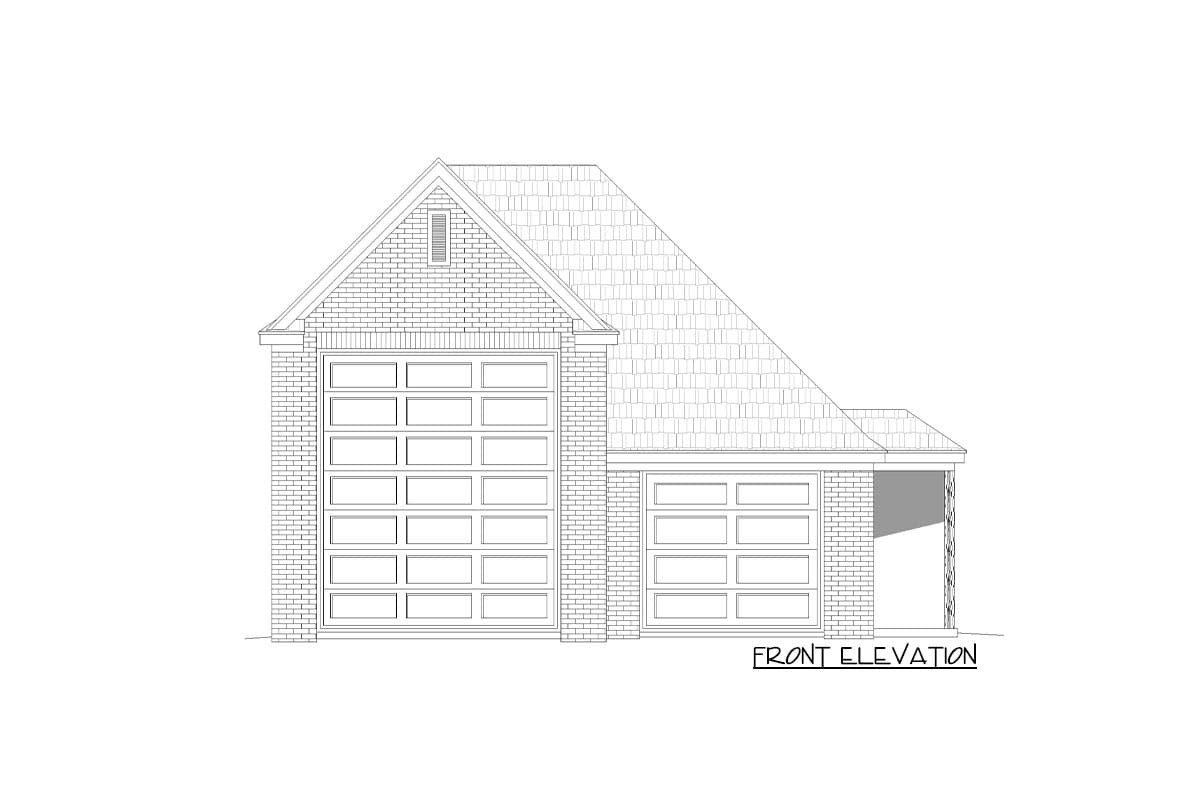

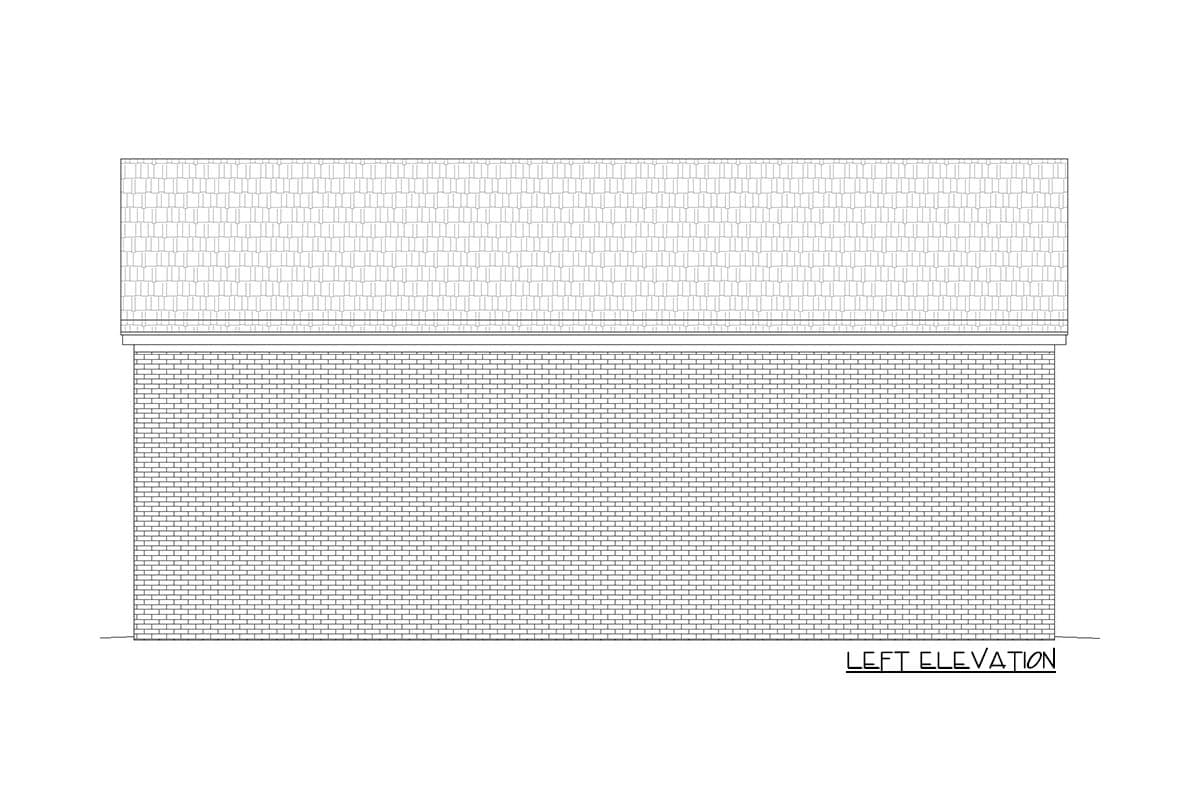

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

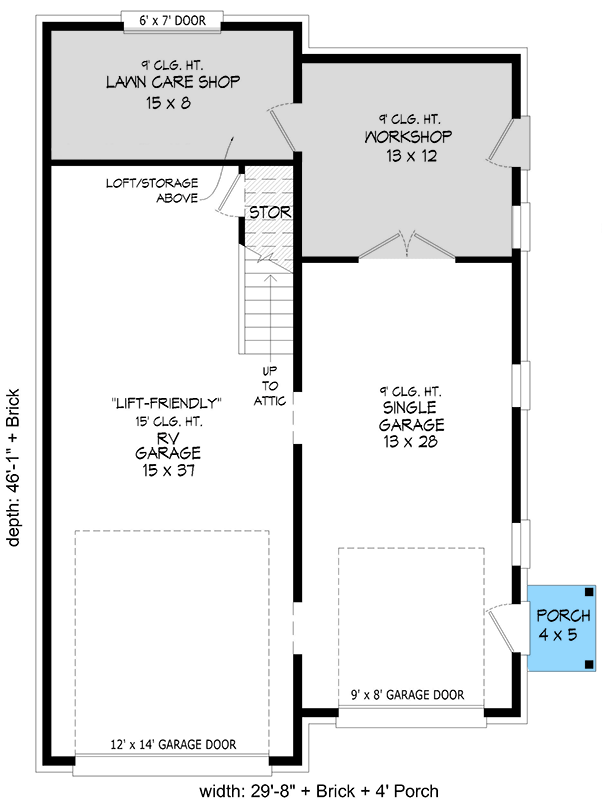

1026 Square Foot RV-Friendly Garage with 2 Bays and Workshop Space - 680099VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 189 sq. ft.
  • Storage: 149 sq. ft.
  • Porch, Combined: 20 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 8"
  • Depth: 46' 1"
  • Max ridge height: 24' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1026 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" RV Garage 15' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

1026 Square Foot RV-Friendly Garage with 2 Bays and Workshop Space

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $925
  • 5 Sets $1,000
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single-Build $1,225
  • View all purchase option online

About This Plan

  • This RV-friendly 1,026 square foot detached garage plan has a brick exterior and two bays.
  • The RV bay has a 12' by 14' overhead door and the other bay has a 9' by 8' overhead door.
  • In back of the garage, there is a storage area for lawn equipment and a workshop.
  • Related Plan: Get an extra bay with garage plan 68669VR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Workshop: 189 sq. ft.
  • Storage: 149 sq. ft.
  • Porch, Combined: 20 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 8"
  • Depth: 46' 1"
  • Max ridge height: 24' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1026 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" RV Garage 15' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
