Detached 4-Car / RV Garage with Kitchenette

Plan 68669VR

  • 0

    Heated s.f.

  • 1

    Baths

  • 1

    Stories

  • 4

    Cars

  • On the left side of this detached, 4-car garage, discover a tandem stall, while a small porch on the left elevation offers another point of entry.
  • Included in the 3-car tandem garage, you'll also find a kitchenette and full bath.
  • The right side is occupied by a lift-friendly RV garage.
  • Related Plan: Remove a bay with house plan 680099V.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

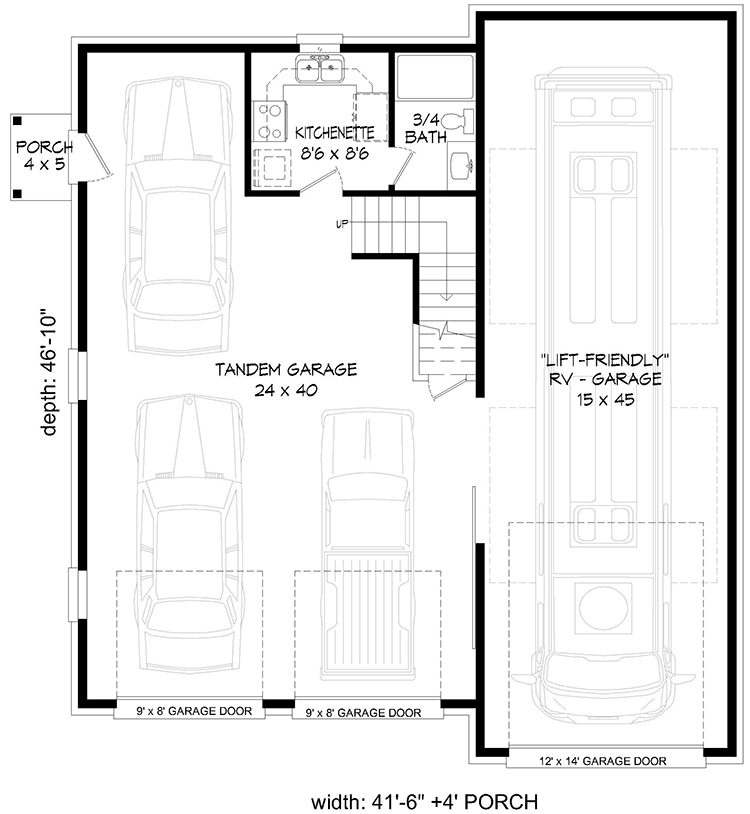

Detached 4-Car / RV Garage with Kitchenette - 68669VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Porch, Combined: 18 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 6"
  • Depth: 46' 10"
  • Max ridge height: 24' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 1121 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
