Plan 680143VR
1080 Square Foot Barn Studio with Upstairs Loft
Heated S.F.
1,317
Baths
0.5
Stories
2
Cars
2
What's Included
Plan Details

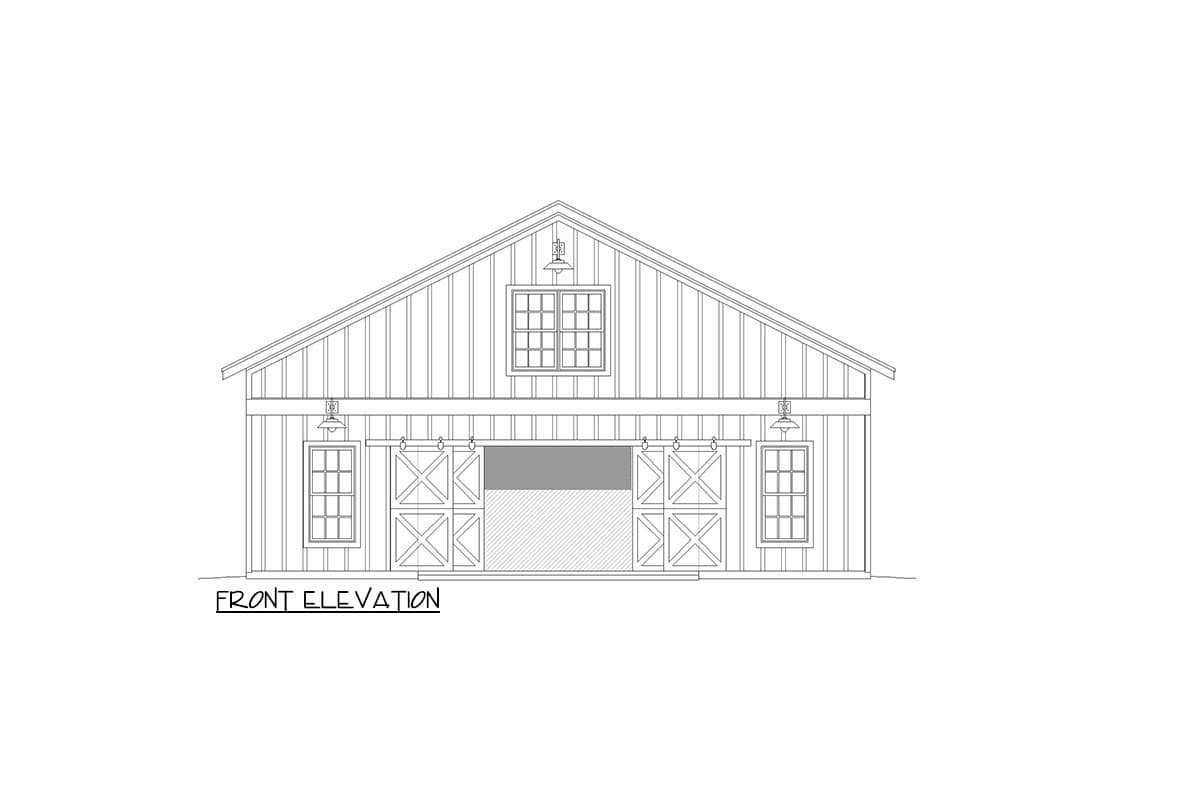

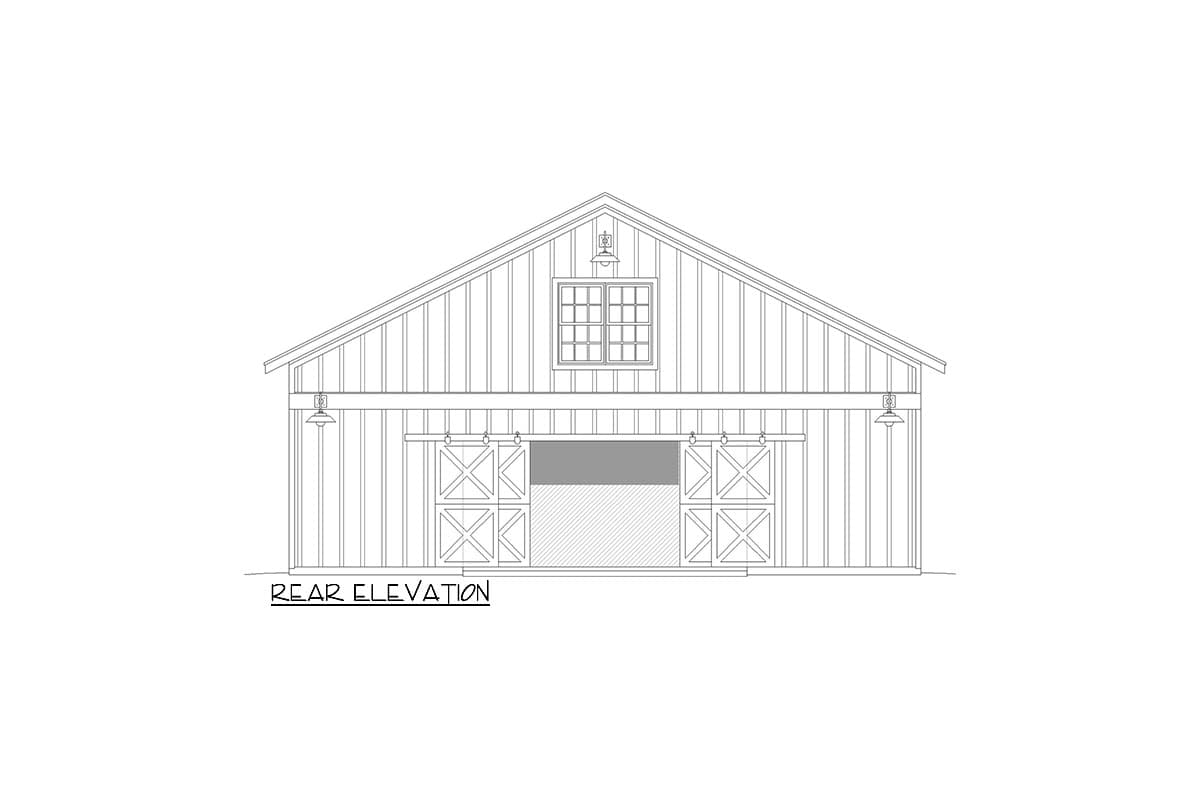

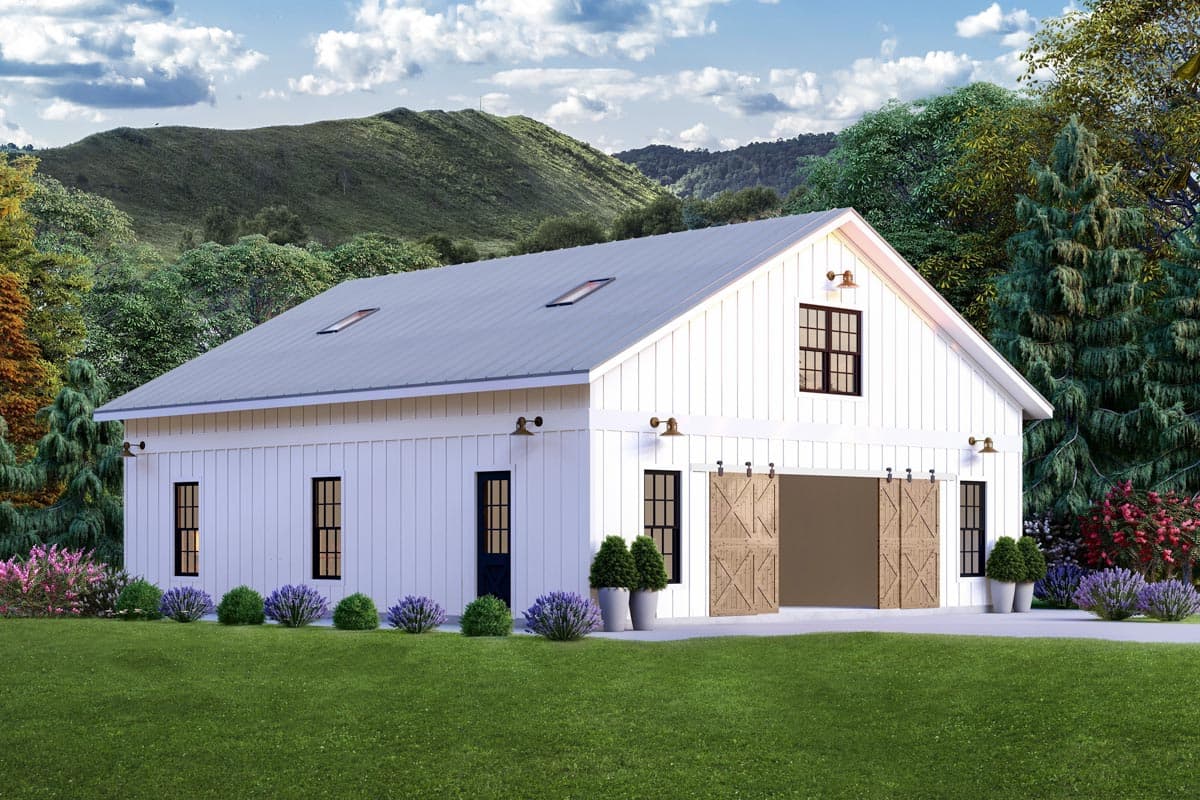

  • This classic design highlights a gabled, metal roof along with front and rear, barn-style doors.

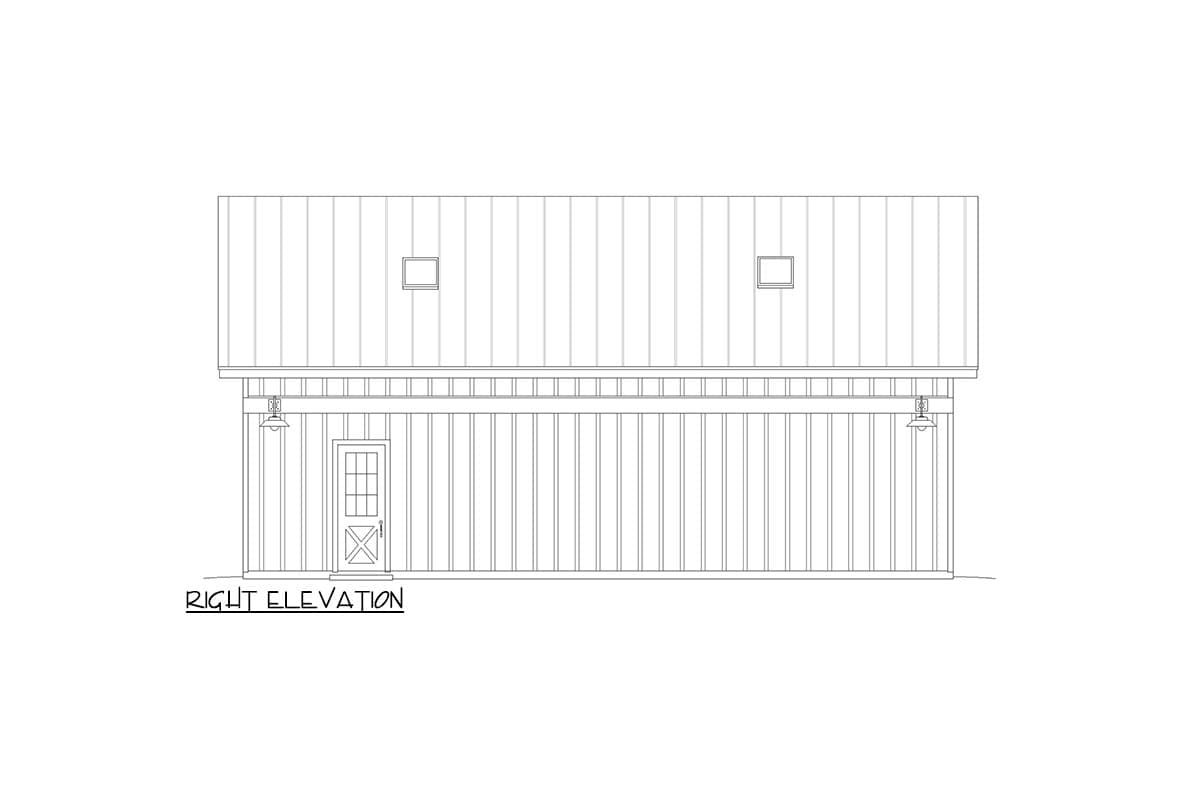

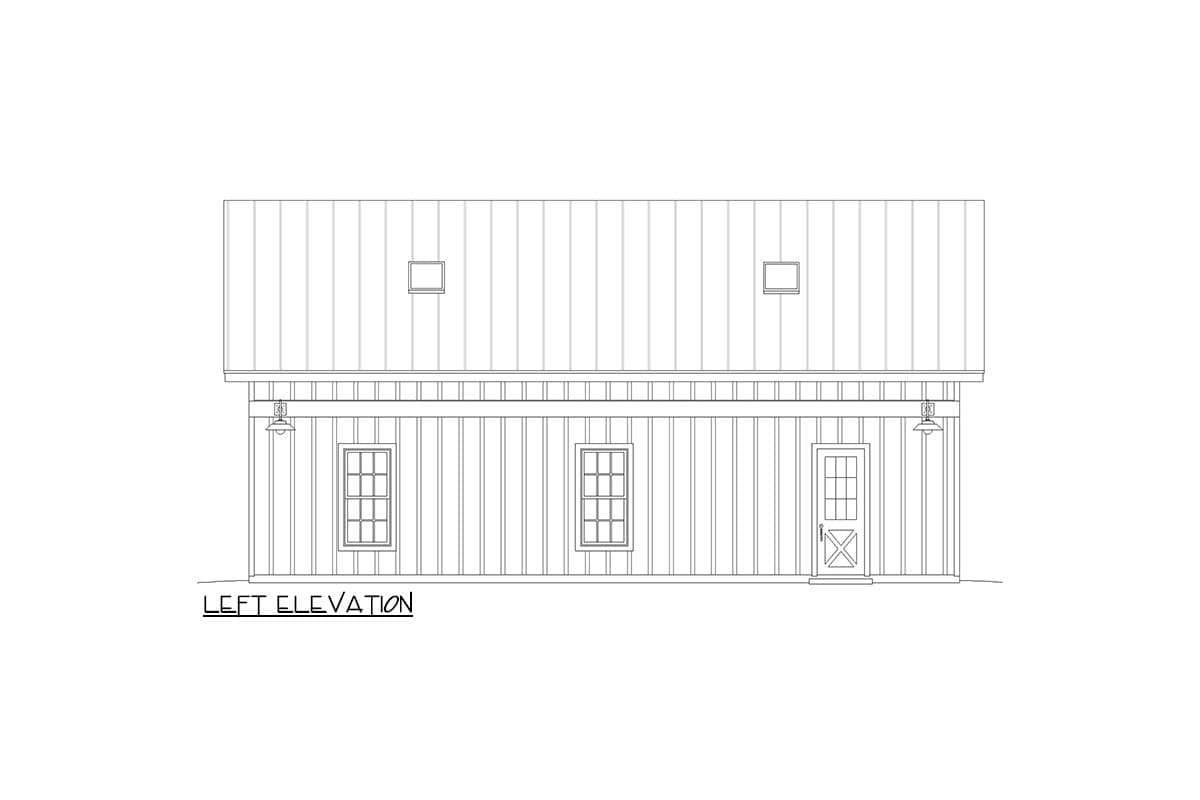

  • The rectangular footprint measures 40' wide by 45' deep. Barn doors - 18' by 8' - open giving you vehicle and large equipment access to the front half. Standard doors on the sides get you access on foot.
  • An open studio with a half bath in back is designed as a studio. Stairs take you to a loft overlooking the front part of the floor below.
  • Related Plan: Get a totally open main floor with barn plan 68935VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1080 Square Foot Barn Studio with Upstairs Loft

  • 1,317

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

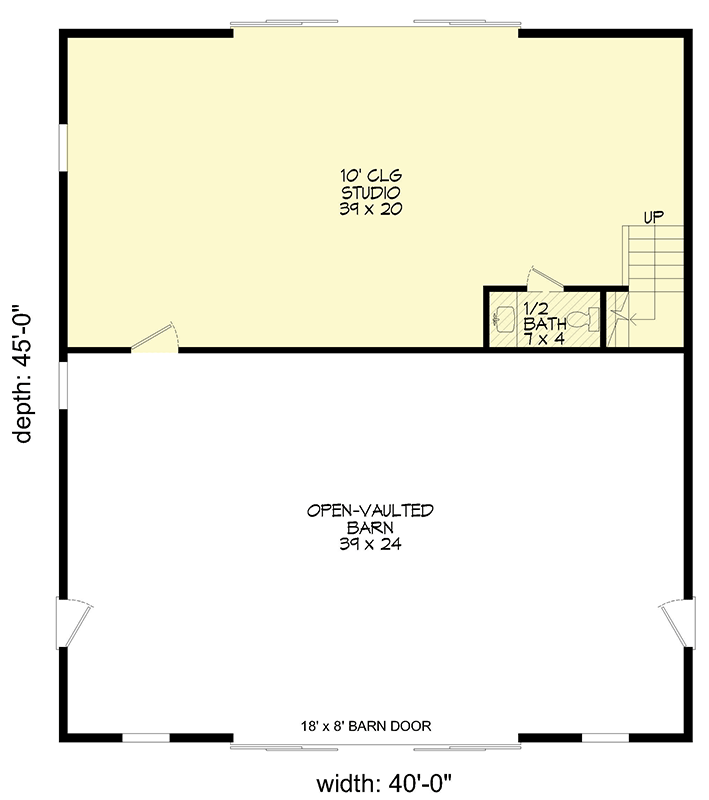

  • Main Level

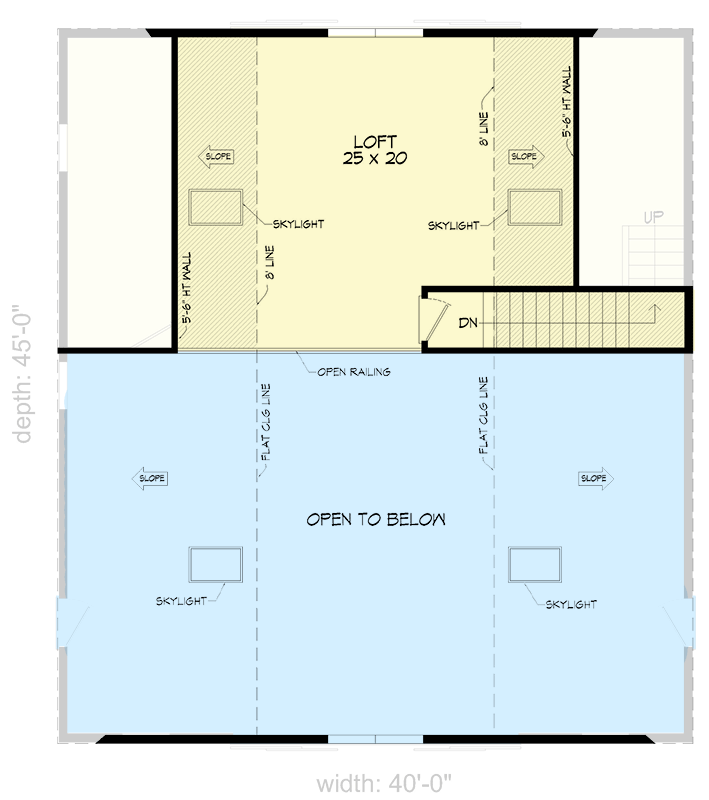

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,317 sq. ft.
  • 1st Floor: 811 sq. ft.
  • 2nd Floor: 506 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 45' 0"
  • Max ridge height: 23' 9"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 989 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
