Plan 430830SNG
EXCLUSIVE
1100 Square Foot Country Home Plan with Optional Pet Space Under Stairs
Heated S.F.
1,140
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • Every inch matters in this 1100 square foot country home plan with 3 beds and 2.5 baths. A 5'11" deep deck spans 24'9" across the front of the home and 3 dormers above adding character and headroom on the upper floor.
  • The main floor gives you an open living and kitchen area with a half bath by the kitchen. The main bedroom is on this floor and has double closets and its own bathroom. Laundry is conveniently located on this floor as well.
  • There's pet space under the stairs that could also be used for storage and there's more storage under the staircase.
  • Upstairs, loft space can be used as an office, a play area, or book nook. Two bedrooms are also upstairs as is attic space for additional storage.
What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1100 Square Foot Country Home Plan with Optional Pet Space Under Stairs

  • 1,140

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

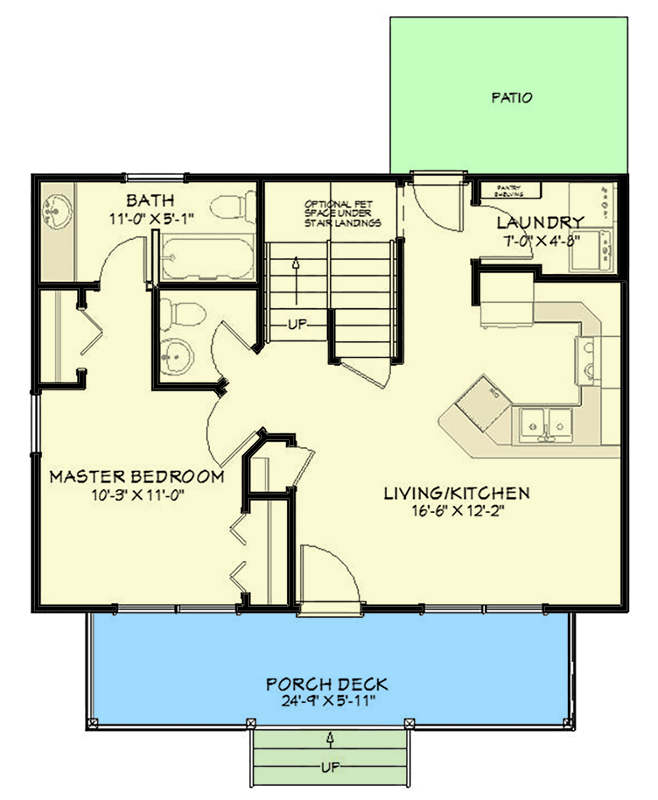

  • Main Level

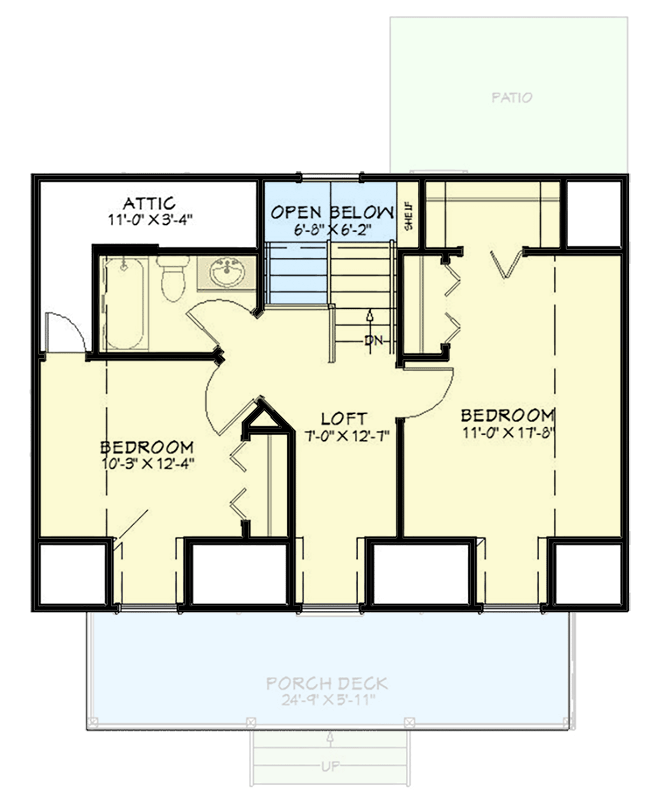

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,140 sq. ft.
  • 1st Floor: 660 sq. ft.
  • 2nd Floor: 480 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 22' 0"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
