Plan 801133PM 1186 Modern New American House Plan with Open Concept Core and 2 Bedrooms

1,186 2 1 1
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

1186 Modern New American House Plan with Open Concept Core and 2 Bedrooms

Plan 801133PM

  • 1,186

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

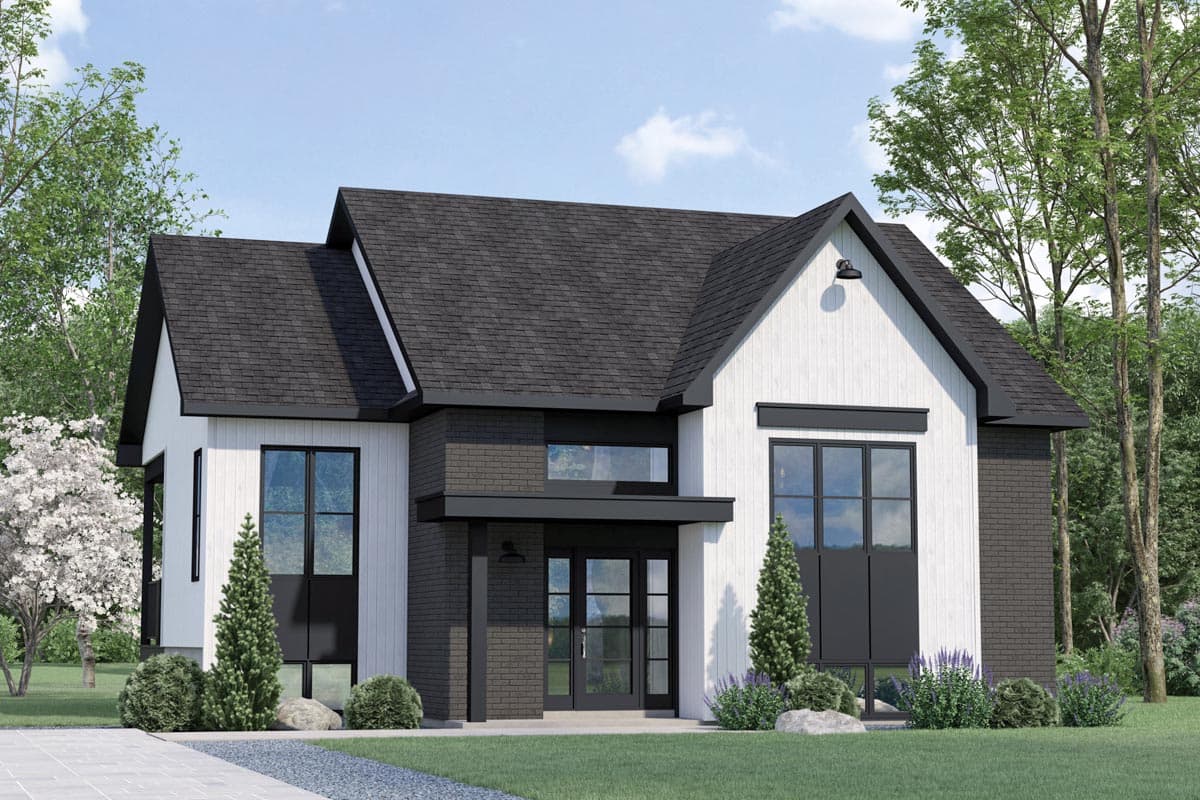

  • This 1,186 square foot truly modern New American house has an elegant mixed material exterior with a covered entry and many windows.
  • The foyer leads to an open concept area with a living room, dining room and a kitchen with a walk-in pantry.
  • The two bedrooms - one of which is the master bedroom - have walk-in closets. A complete bathroom with both a bath and a shower is also included and a large vanity as well as a cabinet. A washer-dryer corner sits next to the bathroom.
  • NOTE: Please allow up to 20 business days for plan delivery.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

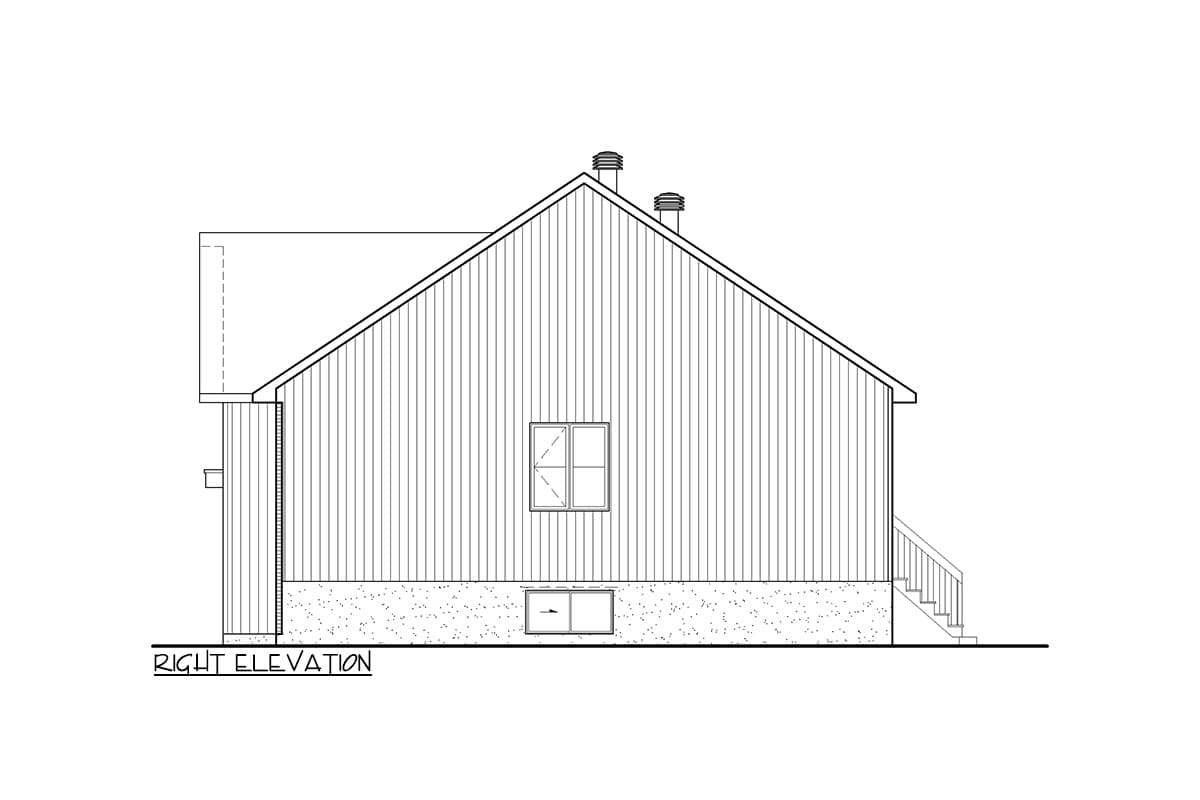

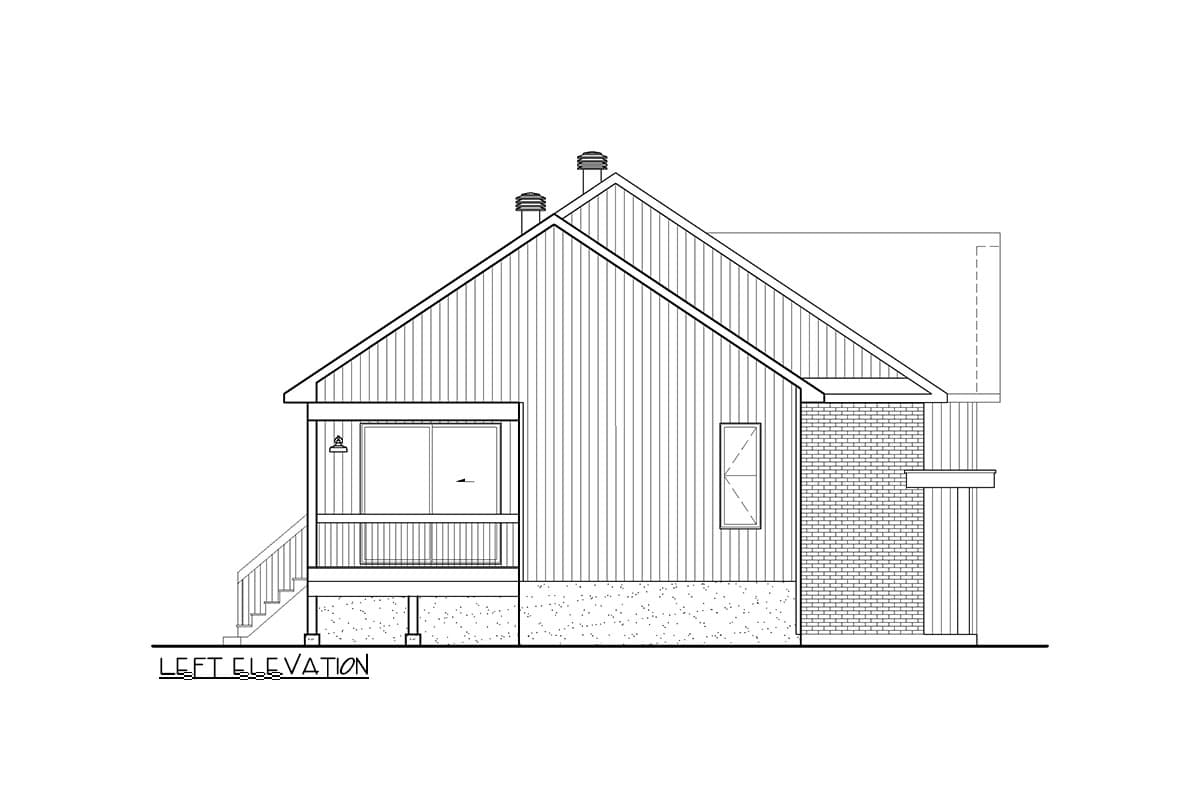

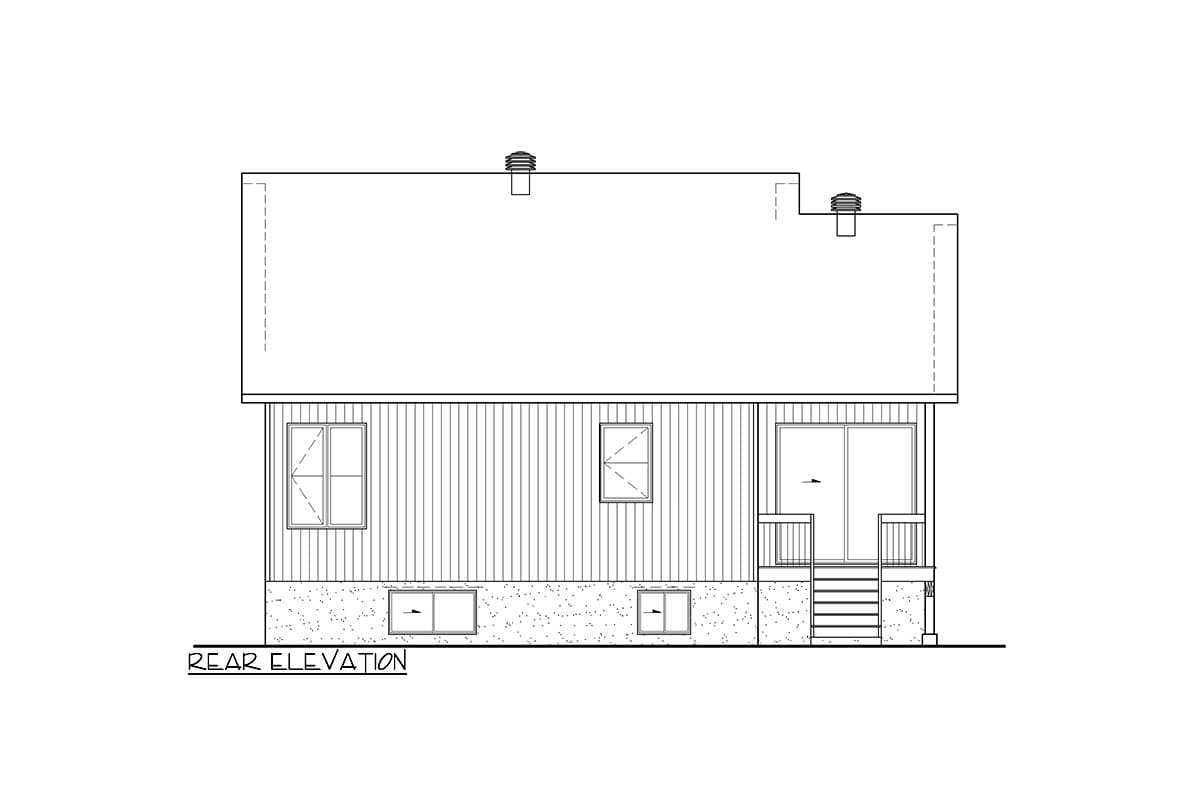

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

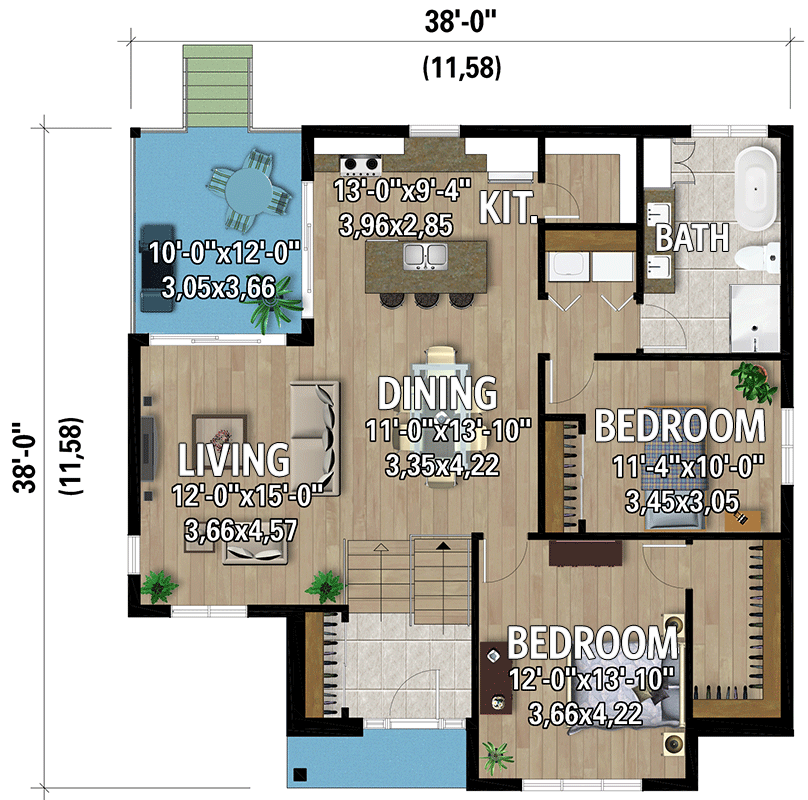

1186 Modern New American House Plan with Open Concept Core and 2 Bedrooms - 801133PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,186 sq. ft.
  • 1st Floor: 1,186 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 38' 0"
  • Max ridge height: 26' 11"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12

Architectural Style

Special features

Plan Collections

1186 Modern New American House Plan with Open Concept Core and 2 Bedrooms

  • 1,186

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $840
  • 5 Sets $885
  • 5 Sets + PDF $965
  • 5 Set + PDF + Materials List $1,040
  • CAD + PDF - Single-Build $1,860
  • View all purchase option online

About This Plan

  • This 1,186 square foot truly modern New American house has an elegant mixed material exterior with a covered entry and many windows.
  • The foyer leads to an open concept area with a living room, dining room and a kitchen with a walk-in pantry.
  • The two bedrooms - one of which is the master bedroom - have walk-in closets. A complete bathroom with both a bath and a shower is also included and a large vanity as well as a cabinet. A washer-dryer corner sits next to the bathroom.
  • NOTE: Please allow up to 20 business days for plan delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,186 sq. ft.
  • 1st Floor: 1,186 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 38' 0"
  • Max ridge height: 26' 11"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 14 on 12
